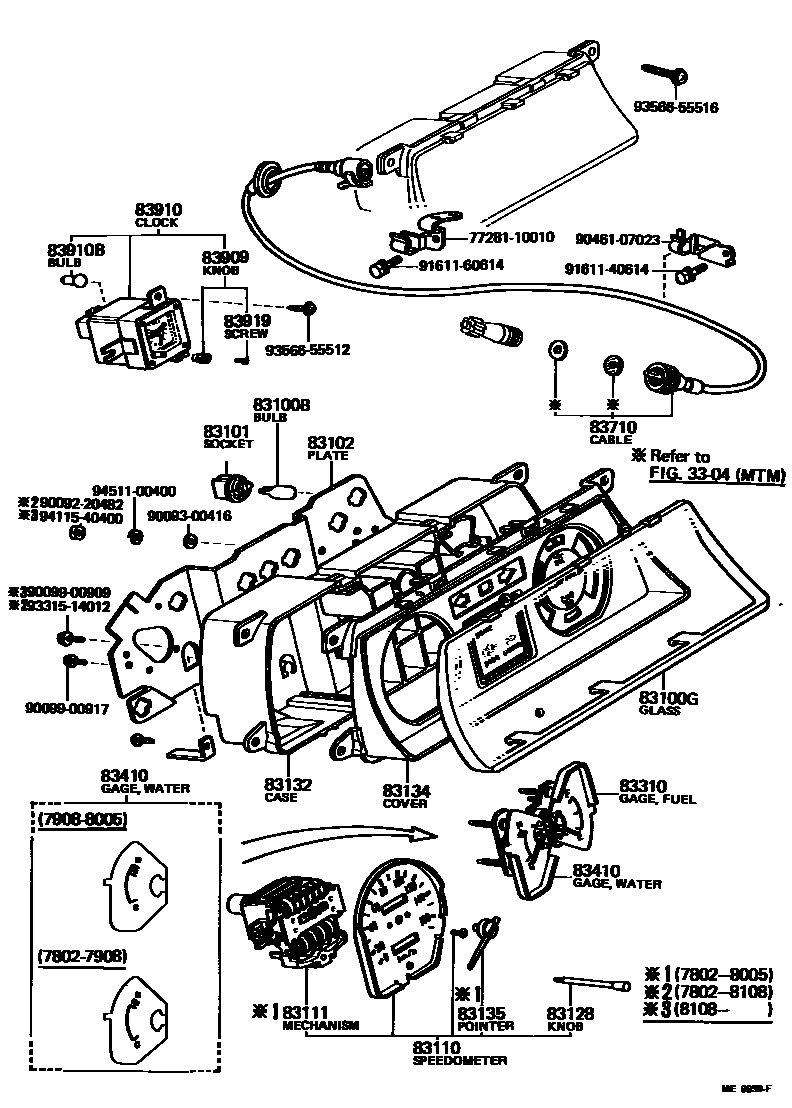

Parts diagram
3304SPEEDOMETER DRIVEN GEAR (MTM)
→ Go to FIG 33-04
83100BBULB, COMBINATION METER, NO.1
main90981-11018i198005-198409
12V 1.2W W/O SOCKET
main99132-12034i197802-198409
12V 3.4W
83100GGLASS, COMBINATION METER
main83138-10300i198005-198208
W/TACHOMETER
main83138-10310i197802-198208
W/KNOB HOLE
main83138-10320i197802-198208
W/KNOB HOLE
main83138-10330i197802-198208
W/O KNOB HOLE
main83138-10340i198005-198208
W/TACHOMETER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030i197802-198409
12V 3.4W
main83101-14040i198208-198409
12V 1.4W
main83101-14040i198005-198208
12V 1.4W,W/TACHOMETER
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-10030i197802-198108
main83247-10040i197802-198005
main83247-10041i198005-198108
main83247-10080i198108-198208
W/TACHOMETER,KM
main83247-10080i198005-198108
W/TACHOMETER
main83247-10090i198005-198208
W/TACHOMETER
main83247-10110i198108-198208
MILE & KM
main83247-10130i198108-198208
MILE & KM
main83247-10130i198108-198208
KM
main83247-10150i198108-198208
W/TACHOMETER,MILE & KM
main83247-10170i198108-198208
KM
main83247-10190i198108-198208
KM
main83247-10310i198208-198409
W/TACHOMETER
main83247-10370i198208-198409
W/RED INDICATOR
main83247-10390i198208-198409
W/TACHOMETER
main83247-10510i198208-198409
main83247-10530i198208-198409
W/FOG LAMP
main83247-10550i198208-198409
main83247-10570i198208-198409
W/RED INDICATOR
main83247-10590i198208-198409
W/RED INDICATOR
main83247-10610i198208-198409
main83247-10630i198208-198409
83110SPEEDOMETER ASSY
main83110-10340i198005-198208
KM
main83110-10350i198005-198208
KM,W/TRIP KNOB
main83110-10360i198005-198008
MILE & KM
main83110-10361i198008-198108
MILE & KM
main83110-10362i198108-198208
MILE & KM
main83110-10370i198005-198008
MILE & KM, W/TRIP KNOB
main83110-10371i198008-198108
MILE & KM, W/TRIP KNOB
main83110-10372i198108-198208
MILE & KM,W/TRIP KNOB
main83110-10380i198005-198208
KM
main83110-10390i198005-198208
KM,W/TRIP KNOB
main83110-10400i198005-198008
MILE & KM
main83110-10401i198008-198108
MILE & KM
main83110-10440i198005-198208
W/TACHOMETER,KM
main83110-10450i198005-198008
W/TACHOMETER MILE & KM
main83110-10451i198008-198108
W/TACHOMETER MILE & KM
main83110-10452i198108-198208
W/TACHOMETER MILE & KM
main83110-10452i198108-198208
MILE & KM,W/TRIP KNOB
main83110-10460i198005-198208
W/TACHOMETER,KM
main83110-10460i198108-198208
KM,W/TRIP KNOB
main83110-10520i198108-198208
KM
main83110-10530i198108-198208
MILE & KM
main83110-10660i198208-198305
W/FOG LAMP
main83110-10660i198208-198305
MILE & KM
main83110-10661i198305-198409
MILE & KM
main83110-10661i198305-198409
W/FOG LAMP
main83110-10680i198208-198409
KM
main83110-10690i198208-198409
MILE & KM
main83110-10700i198208-198409
KM
main83110-10710i198208-198409
W/TACHOMETER MILE & KM
main83110-10720i198208-198305
KM
main83110-10721i198305-198409
KM
main83110-10760i198208-198305
KM
main83110-10761i198305-198409
KM
main83110-10780i198208-198409
MILE & KM
main83110-10810i198208-198409
W/TACHOMETER,KM
main83110-10820i198208-198305
W/TACHOMETER,KM
main83110-10821i198305-198409
W/TACHOMETER,KM
main83241-10030i197810-198005
main83241-10030i197802-198005
KM
main83241-10040i197810-198005
KM,W/TRIP KNOB
main83241-10040i197802-198005
KM,W/TRIP KNOB
main83241-10050i197802-197807
MILE & KM
main83241-10051i197807-198005
MILE & KM
main83241-10060i197802-197807
MILE & KM, W/TRIP KNOB
main83241-10061i197807-198005
MILE & KM, W/TRIP KNOB
main83241-10070i197802-198005
KM
main83241-10080i197802-198005
KM,W/TRIP KNOB
main83241-10090i197802-198005
MILE & KM
main83241-10100i197802-198005
MILE & KM, W/TRIP KNOB
main83241-10100i197810-198005
MILE & KM,W/TRIP KNOB
83111MECHANISM, SPEEDOMETER
main83111-10380i197802-198005
KM
main83111-10390i197802-198005
MILE & KM
main83111-14870i197802-198005
KM,W/TRIP COUNTER
main83111-1B090i197802-198005
MILE & KM, W/TRIP COUNTER
83128KNOB, TRIP COUNTER
main83128-14820i197802-198208
83132CASE, COMBINATION METER
main83132-10011i198005-198208
W/TACHOMETER
main83132-10020i197802-198005
main83132-10021i198005-198208
main83132-10030i197802-198005
main83132-10031i198005-198208
main83132-10040i198005-198208
W/TACHOMETER
main83132-10090i198208-198409
W/TACHOMETER
main83132-10150i198208-198409
W/RED INDICATOR
main83132-10170i198208-198409
W/TACHOMETER
main83132-10290i198208-198409
main83132-10310i198208-198409
W/FOG LAMP
main83132-10330i198208-198409
main83132-10350i198208-198409
W/RED INDICATOR
main83132-10370i198208-198409
W/RED INDICATOR
main83132-10390i198208-198409
main83132-10410i198208-198409
83134COVER, COMBINATION METER, NO.1
main83133-10060i197802-198005
main83133-10061i198005-198108
main83133-10070i197802-198005
main83133-10071i198005-198108
main83133-10080i197810-198005
main83133-10100i197810-198005
main83133-10101i198005-198108
main83133-10110i198005-198108
main83133-10120i198005-198208
W/TACHOMETER
main83133-10130i198005-198108
W/HAZARD WARNING
main83133-10140i198005-198108
W/HAZARD WARNING
main83133-10150i198005-198208
W/TACHOMETER,HAZARD WARNING
main83133-10160i198005-198208
W/TACHOMETER
main83133-10190i198108-198208
main83133-10210i198108-198208
W/TACHO METER
main83133-10230i198108-198208
W/HAZARD WARNING
main83133-10250i198108-198208
main83133-10270i198108-198208
main83133-10290i198108-198208
W/HAZARD WARNING
83135POINTER, SPEEDOMETER
main83135-10380i197802-198005
KM
main83135-10390i197802-198005
MILE & KM
83310GAGE ASSY, FUEL RECEIVER
main83243-10020i197802-198005
main83243-10021i198005-198208
main83243-10030i197802-198005
main83243-10031i198005-198208
main83243-10040i198005-198208
W/TACHOMETER
main83243-10050i198005-198208
W/TACHOMETER
main83243-10090i198208-198409
W/TACHOMETER
main83243-10150i198208-198409
main83243-10190i198208-198409
EXCL/*ME
main83243-10210i198208-198409
W/O TACHOMETER,*ME
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-10020i197802-197908
main83244-10021i197908-198005
main83244-10022i198005-198208
main83244-10030i197802-197908
main83244-10031i197908-198005
main83244-10032i198005-198208
main83244-10040i198005-198208
W/TACHOMETER
main83244-10050i198005-198208
W/TACHOMETER
main83244-10070i198208-198409
W/TACHOMETER,EXCL/*ME
main83244-10130i198208-198409
W/TACHOMETER,*ME
83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1
main83710-10190i198208-198210
L=1500
main83710-10191i198210-198409
L=1475
main83710-10200i198208-198210
L=2200
main83710-10201i198210-198409
L=2175
main83710-10210i198210-198409
L=1515
main83710-10220i198210-198409
L=2215
main83710-19445i197802-198005
L=1500
main83710-19446i198005-198208
L=1500
main83710-19455i197802-198005
L=2200
main83710-19456i198005-198208
L=2200
main83710-19565i198108-198208
L=1540
main83710-19575i198108-198208
L=2240
83909KNOB, CLOCK
main83909-10041i198007-198208
main83909-14012i198005-198409
83910CLOCK ASSY
main83910-10030i197802-198005
main83910-10040i198005-198007
main83910-10041i198007-198208
main83910-10060i197802-198005
main83910-10070i198005-198007
main83910-10071i198007-198208
main83910-10090i198208-198409
main83910-10100i198208-198409
83910BBULB, CLOCK INDICATOR
main99132-11034i197802-198208
12V 3.4W
83919SCREW, CLOCK
main83919-14012i198005-198409
7728110010BRACKET, FUEL MAIN TUBE, NO.1
main77281-10010
9009220482
main90092-20482
9009300416
main90093-00416
9009900909
main90099-00909
9009900917
main90099-00917
9046107023
main90461-07023
9161140614
main91611-40614
9161160614
main91611-60614
9331514012
main93315-14012
9356655512
main93566-55512
9356655516
main93566-55516
9411540400
main94115-40400
9451100400
main94511-00400

31 parts on this diagram · 5 diagrams in section
