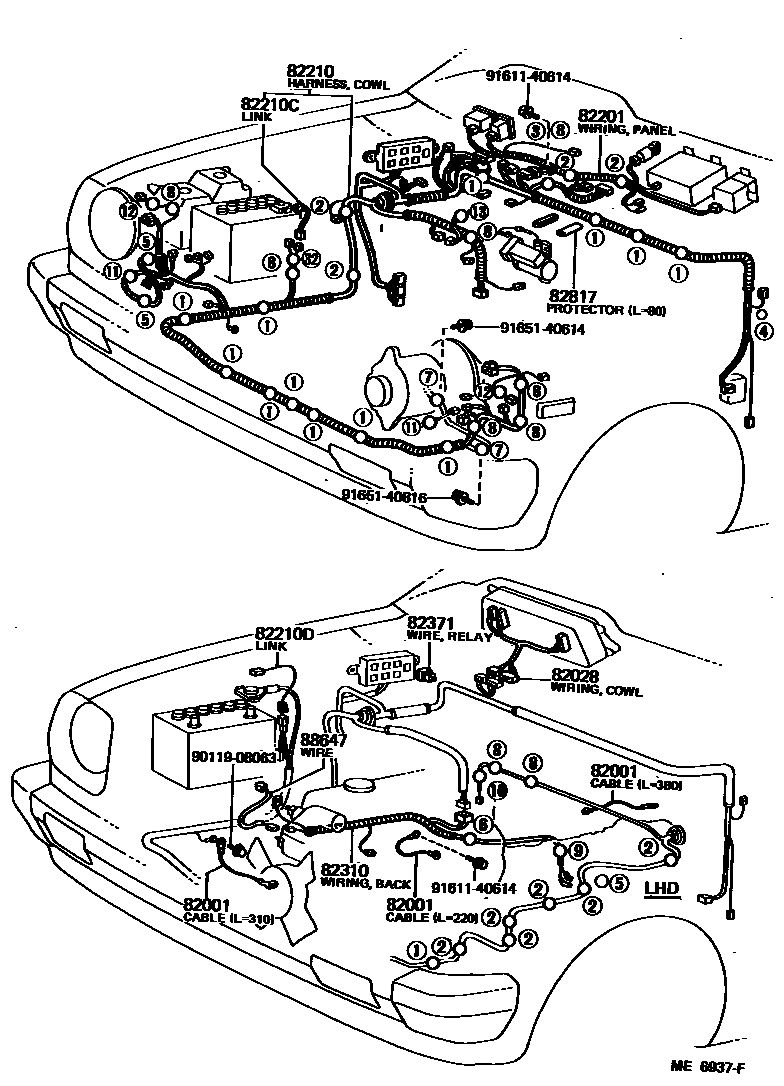

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=310
L=220
L=380
L=380
82028WIRING SUB-ASSY, COWL
82201WIRING SUB-ASSY, INSTRUMENT PANEL
W/*DEF
W/*RW,W/*RW & *DEF
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
WEST GERMANY,W/*RW
WEST GERMANY,W/*RW
W/*RW
sub82210-10882
sub82210-10892
W/*IW & *DEF,W/*IW & *RW;W/*RW,W/*RW & *DEF
W/*RW OR *IW,W/*RW & *IW
W/*RW OR *IW,W/*RW & *IW
W/*RW,W/*RW & *DEF
W/*RW OR *IW,W/*RW & *IW
sub82210-1C052
W/*RW OR *IW,W/*RW & *IW
W/*RW OR *IW,W/*RW & *IW
W/*HC & *DEF,W/*HC & *RW;W/*IW &(*HC OR *RW OR *DEF)
W/*HD & *HC,W/*HD & *RW
W/*HD
W/*HC & *HD,W/*HC,*HD & *RW
W/*HD,W/*HD & *RW,W/*HD & *IW
W/*HD & *RW,COLD SPEC
COLD SPEC & W/*RW,*HC,*IW
*WEG
*WEG
*WEG,2-METER
*WEG
*WEG & (W/*HC OR *RW OR *DEF)
*WEG & W/*IW,*WEG & W/*RW
*WEG,2-METER,W/*RW,*IW
W/COOLER
W/COOLER & *DEF
W/O *RW
W/COOLER,*IW,*RW & *DEF
W/COOLER
W/COOLER
W/COOLER & *IW &(*DEF OR *RW)
W/COOLER,*RW & *DEF
W/COOLER,STEREO
sub82210-1C152
W/COOLER,STEREO
sub82210-1C153
W/COOLER,STEREO
W/COOLER,STEREO
W/COOLER,*RW,*IW
W/RR FOG LAMP
W/*IW & *RW,*IW & *DEF;W/RR FOG LAMP,*RW & *DEF;W/RR FOG LAMP & *IW
W/RR FOG LAMP
W/RR FOG LAMP & *RW
W/*TAC
W/*IW & *TAC,W/*RW & *TAC
W/*TAC & COOLER
W/*TAC & COOLER
main82210-1C270iKP62..LHD..5F;KP60..SED..LHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN¥64,900198005-198101
W/*TAC
sub82210-1C271
main82210-1C271iKP62..LHD..5F;KP60..SED..LHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198101-198208
W/*TAC
W/*TAC,*RW,*IW
W/*TAC & COOLER
sub82210-1C291
W/*TAC & COOLER
sub82210-1C292
W/*TAC & COOLER
W/*TAC & COOLER
*WEG,W/*TAC,*RW & *IW;W/*TAC,*RW & *WEG
sub82210-1C311
W/*TAC,*RW,*IW & *WEG;W/*TAC,*RW & *WEG
*WEG,W/4-METER
W/RR FOG LAMP & *TAC
W/RR FOG LAMP,*RW,*IW & *TAC;W/*TAC
W/*HD,*TAC &(*RW OR *IW)
W/*HD,*HC,*TAC & *RW
W/*TAC,*RW,*IW
W/*TAC & *RW,*HC,*IW,COLD SPEC
W/*RW OR *IW,W/*RW & *IW
W/*TAC,*RW,*IW
W/COOLER,*IW,*RW
W/*TAC & COOLER
*WEG
*WEG,2-METER,W/*RW,*IW
*WEG,W/4-METER
W/RR FOG LAMP,*RW,*IW & *TAC
COLD SPEC & W/*RW,*IW,*HC
W/*TAC & *RW,*HC,*IW,COLD SPEC
W/*RW,W/COOLER,W/*RW & COOLER
W/*RW,W/COOLER,W/*RW & COOLER
sub82210-1C770
W/*RW
sub82210-1C820
W/*RW
W/COOLER
W/RED INDICATOR & *RW
W/*HC & *RW
W/*RW
sub82020-10100
W/COOLER
W/RED INDICATOR & *RW;W/*HC & *RW
82210CFUSIBLE LINK
82210DFUSIBLE LINK
L=110,BATTERY,YELLOW & GREEN
L=110,BATTERY
L=110 0.3P
L=110,BATTERY
82310WIRING ASSY, TO BACK UP LAMP SWITCH
W/HEADLAMP CLEANER
W/HEADLAMP CLEANER
82371WIRE, WIPER RELAY
82817PROTECTOR, WIRING HARNESS, NO.1
L=35
L=80
L=100X250
88647WIRE SUB-ASSY, COOLER
9011908063
9161140614
9165140614
9165140816
14 parts on this diagram · 10 diagrams in section
