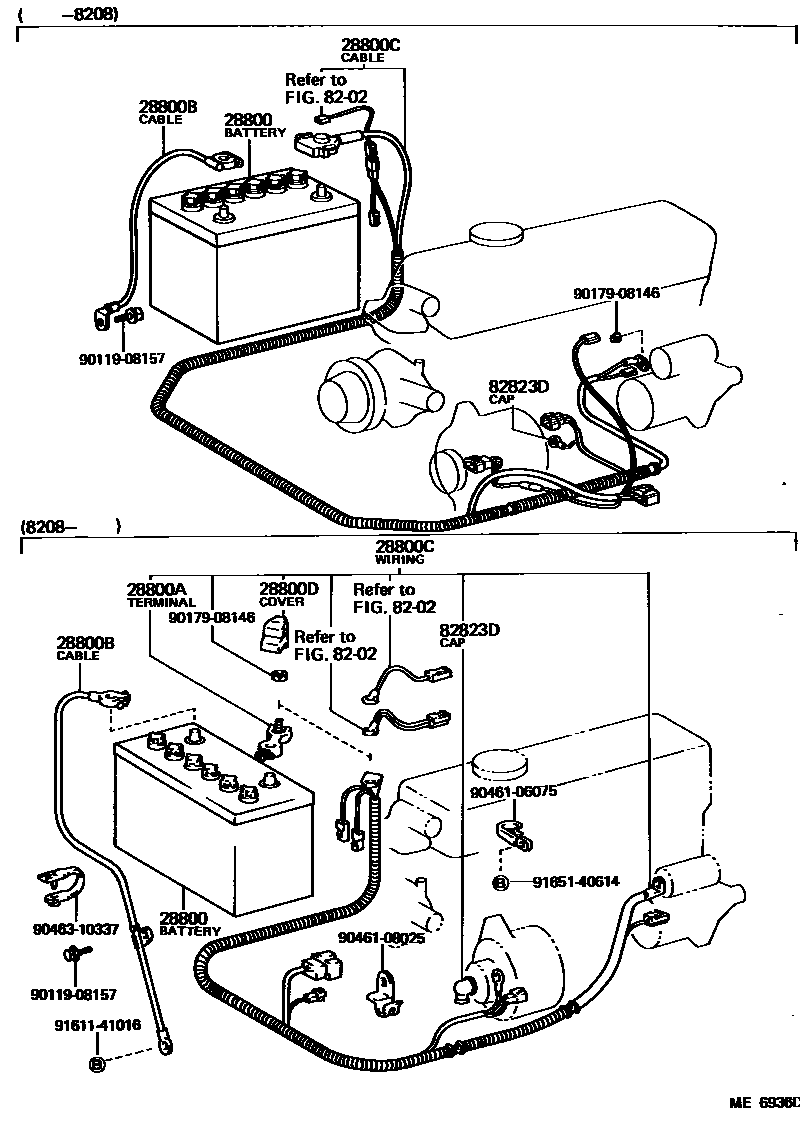

BATTERY & BATTERY CABLE

28800BATTERY

main28800-10021i2K,3KH..KP6#..GEN197802-197903

NS40L(12V 33AH-20HR)

sub28800-13010

main28800-12060i4KC..KP61..3D;2K,4K..KP6#..EUG198005-198409

50D20R,50D20R(12V 50AH-20HR)

sub28800-14040

main28800-13060i2K,3KH..KP60,62..GEN198005-198409

28B19R,NS40S(12V 30AH-20HR)

sub28800-24040

main28800-13110i2K,3KH..KP6#198005-198409

28B19R(S),NS40S(S)(12V 30AH-20HR)

sub28800-13160

main28800-14010i2K,4K#..KP60,61..EUR198005-198409

55D23R,55D23R(12V 60AH-20HR)

sub28800-15020

main28800-30131i2K,3K#..KP6#..EUR197802-198005

55D26R,N50ZL(12V 60AH-20HR)

sub28800-73010

main28800-31031i2K,3KH..KP6#197802-198005

32C24L,N40L(12V 40AH-20HR)

sub28800-31021

main28800-33071i2K,3KH,4K..KP6#198005-198208

32C24R,N40L(12V 40AH-20HR)

sub28800-33101

main28800-33071i2K,4K#..KP6#198208-198409

32C24R,N40(12V 40AH-20HR)

sub28800-33101

28800ATERMINAL, BATTERY POSITIVE

main90982-05020i2K,4K..KP6#..GEN198208-198409

NS40S

sub90982-05018

main90982-05024i2K,4K#..KP6#198208-198409

N40,NS40S(S),55D20R,55D23R

sub90982-05022

28800BCABLE, BATTERY TO GROUND

main90982-02148i2K,3KH..KP6#..GEN197802-198005

NS40L

main90982-02149i2K,3K#..KP6#..EUR197802-198005

N50ZL

main90982-02150i2K,3KH..KP6#197802-198005

N40L

main90982-02201i2K,3KH..KP60,62..GEN198005-198208

NS40S

main90982-02202i2K,3KH..KP60,62..GEN198005-198208

N40,NS40S(S)

main90982-02202i2K,3KH..KP60,62..GEN198005-198208

50D20R,55D23R,NS40S,N40

main90982-02246i2K,4K..KP6#..GEN198208-198409

NS40S

main90982-02247i2K,4K..KP6#..GEN198208-198409

N40,NS40S(S)

main90982-02247i2K,4K..KP6#..GEN198208-198409

50D20R,55D23R,NS40S,N40

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82250-10120i2K,3KH..KP6#..RHD..GEN197802-198005

NS40L

main82250-10130i2K,3KH..KP6#..RHD197802-198005

N40L,N50ZL

main82250-10131i2K,3KH..KP6#..RHD..GEN198005-198108

N40,NS40(S),50D20R,55D23R

main82250-10131i2K,3KH..KP6#..RHD..EUG198005-198108

N40,NS40S(S)

main82250-10132i2K..KP60..RHD..EUG198108-198208

N40,50D20R,55D23R

main82250-10132i2K,3KH..KP60,62..RHD..GEN198108-198208

NS40S(S),N40

main82250-10140i2K,3KH..KP6#..LHD..GEN197802-198005

NS40L

main82250-10141i2K,3KH..KP6#..LHD..GEN198005-198108

NS40S

main82250-10142i2K,3KH..KP60,62..LHD..GEN198108-198208

NS40S

main82250-10150i2K,3K#..KP6#..LHD197802-198005

N40L,N50ZL

main82250-10151i2K,3K#..KP6#..LHD..EUR198005-198108

N40,NS40S(S)

main82250-10151i2K,3KH..KP6#..LHD..GEN198005-198108

N40,NS40S(S),50D20R,55D23R

main82250-10152i2K,3KH..KP60,62..LHD..GEN198108-198208

N40,NS40S(S)

main82250-10152i2K,4K..KP60,61..LHD..EUG198108-198208

N40

main82250-10190i2K,3KH..KP6#..RHD..GEN198005-198108

NS40S

main82250-10191i2K,3KH..KP60,62..RHD..GEN198108-198208

NS40S

main82250-10200i4K..KP61..4D198108-198208

50D20R,55D23R

main82250-10220i4K..KP61..RHD198108-198208

N40

main82250-10230i4K..KP61..RHD198108-198208

50D20R,55D23R

main82250-10290i4KC..KP61..3D198208-198409

N40,NS40S(S)

main82250-10290i4KC..KP61..3D198208-198409

N40,SWITZERLAND SPEC

main82250-10300i4KC..KP61..3D;4K..KP61..LHD..EUG198208-198409

50D20R,55D23R

main82250-10310i2K,4K..KP6#..LHD..GEN198208-198409

NS40S

main82250-10320i2K,4K..KP6#..RHD198208-198409

N40,NS40S(S)

main82250-10330i2K,4K..KP6#..RHD..EUG198208-198409

55D23R,55D20R

main82250-10340i2K,4K..KP6#..RHD..GEN198208-198409

NS40S

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i2K,4K#..KP6#198208-198409

8202

82823DCAP, TERMINAL

main82823-22020iKP6#198005-198409

sub82823-12020

9011908157

main90119-08157

9017908146

main90179-08146

9046106075

main90461-06075

9046108025

main90461-08025

9046310337

main90463-10337

9161141016

main91611-41016

9165140614

main91651-40614

14 parts on this diagram · 1 diagram in section
