INTERIOR LAMP

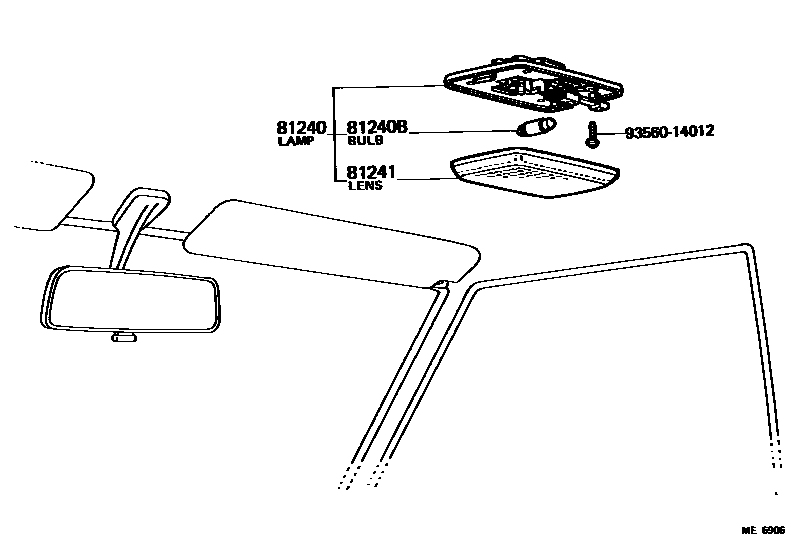

Parts diagram

81240LAMP ASSY, ROOM, NO.1

main81240-10030-03i197802-198005

GRAY,GRAY,TRIM2#

sub81240-10030¥2,740

main81240-10030-04i197802-198005

BLUE,BLUE,TRIM8#

sub81240-10030¥2,740

main81240-10030-05i197802-198005

BEIGE,BEIGE,TRIM4#

sub81240-10030¥2,740

main81240-10030-08i198005-198208

IVORY,IVORY,TRIM2#,4#,8#

sub81240-10030¥2,740

main81240-10030-13i198208-198409

LIGHT GRAY,GRAY,TRIM1#

sub81240-10030¥2,740

main81240-10030-18i198208-198409

IVORY,IVORY,TRIM3#,4#

sub81240-10030¥2,740

81240BBULB, ROOM LAMP, NO.1

main90981-11015i¥150197802-198409

12V 10W,12V 10W

sub99132-12100¥150

81241LENS, ROOM LAMP, NO.1

main81241-10030i¥650197802-198409

9356014012

main93560-14012¥70

4 parts on this diagram · 1 diagram in section
