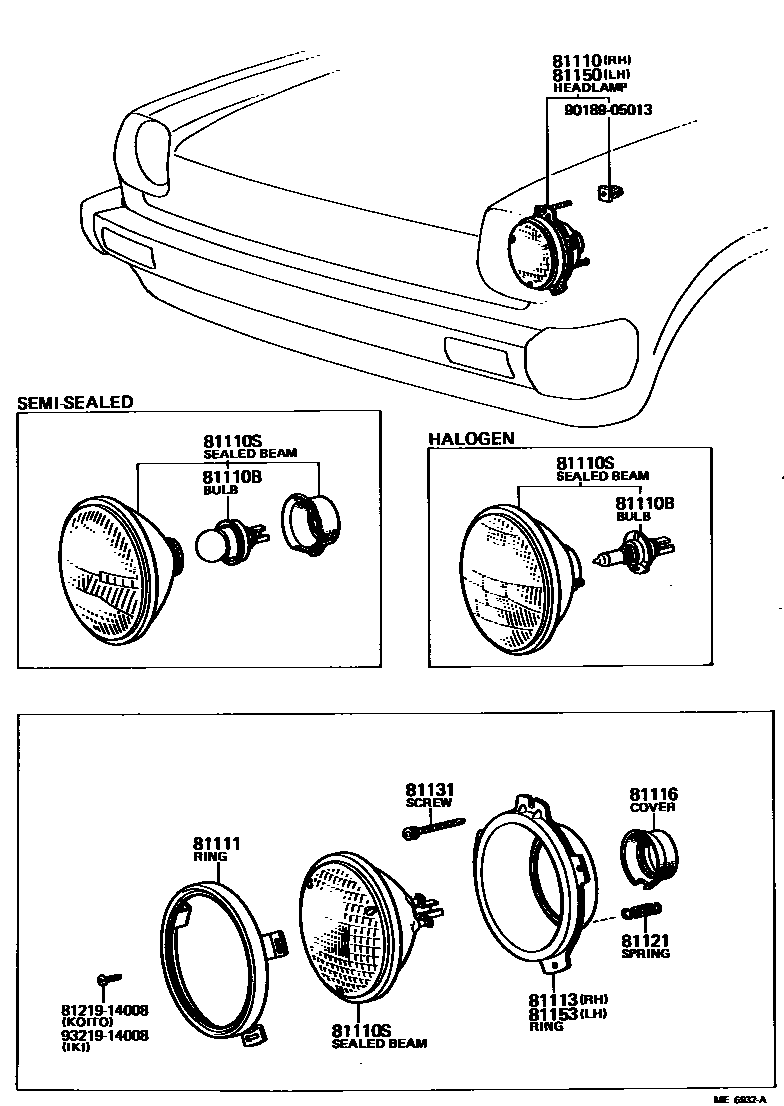

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-10140iKP6#..RHD197802-198005

SEMI-SEALED,WHITE

main81110-10150iKP6#..RHD..GEN197802-198005

KOITO

main81110-10160iKP6#..LHD197802-198005

SEMI-SEALED,WHITE

main81110-10180iKP6#..LHD197802-198005

SEMI-SEALED,YELLOW

main81110-10190iKP6#..LHD..GEN197802-198005

KOITO

main81110-10210iKP6#..LHD..EUR197802-198005

SEMI-SEALED,WHITE,W/*HC

main81110-10260iKP6#..LHD..EUR197802-198005

HALOGEN,WHITE,W/*HC

main81110-10270iKP6#..RHD..EUG197909-198005

HALOGEN,WHITE

main81110-10280iKP6#..LHD..EUR197909-198005

HALOGEN,WHITE

main81110-19726iKP60,62..RHD..GEN198005-198208

KOITO

sub81110-10151

sub91651-40612

main81110-19735iKP6#..RHD..GEN197802-198005

IKI

main81110-19736iKP60,62..RHD..GEN198005-198208

IKI

main81110-19746iKP60,62..LHD..GEN198005-198208

KOITO

sub81110-10191

main81110-19755iKP6#..LHD..GEN197802-198005

IKI

main81110-19756iKP60,62..LHD..GEN198005-198208

IKI

main81110-19766iKP6#..RHD198005-198208

SEMI-SEALED,WHITE

sub81110-10141

main81110-19776iKP6#..LHD198005-198208

SEMI-SEALED,WHITE

sub81110-10161

main81110-19786iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

SEMI-SEALED,YELLOW

sub81110-10181

main81110-80073iKP6#..RHD..EUG198005-198208

HALOGEN,WHITE

sub81110-10231

main81110-80074iKP6#..LHD..EUR198005-198208

HALOGEN,WHITE

sub81110-10241

sub91651-40612

main81110-80075iKP6#..LHD..EUG198005-198208

HALOGEN,YELLOW

sub81110-10251

main81110-80102iKP6#..EUG198005-198208

CIBIE,W/O SEALED BEAM

main81110-80248iKP6#..LHD..GEN198308-198409

KOITO,LH DRIVE SPEC(*46)

sub81110-10310

sub91651-40612

main81110-80248iKP6#..RHD..GEN198208-198409

KOITO

sub81110-10310

sub91651-40612

main81110-80249iKP6#..LHD..GEN198308-198409

IKI,LH DRIVE SPEC(*46)

sub81110-10320

main81110-80249iKP6#..RHD..GEN198208-198409

IKI

sub81110-10320

main81110-80250iKP6#..LHD..GEN198208-198409

KOITO

sub81110-10330

main81110-80251iKP6#..LHD..GEN198208-198409

IKI

main81110-80253iKP6#..RHD198208-198409

SEMI-SEALED,WHITE

sub81110-10360

main81110-80254iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198208-198409

SEMI-SEALED,WHITE

sub81110-10370

main81110-80255iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198208-198409

SEMI-SEALED,YELLOW

sub81110-10380

main81110-80257iKP6#..LHD..DLX..GEN198208-198409

HALOGEN,WHITE

sub81110-10400

main81110-80258iKP6#..LHD..EUG198208-198409

HALOGEN,YELLOW

sub81110-10410

main81110-80259iKP61..RHD..DLX..GEN198208-198409

HALOGEN,WHITE

sub81110-10440

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iKP6#197802-198409

12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE

main90981-13014iKP60..LHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(197802-198409

12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW

sub90981-13H00

main90981-13015iKP6#..LHD..DLX197802-198409

12V 60/55W,*HAL *WH,HALOGEN,WHITE

sub90981-13058

main90981-13016iKP6#..LHD..EUG198005-198409

12V 60/55W,*HAL *YE,HALOGEN,YELLOW

sub90981-13H01

81110SSEALED BEAM UNIT, NO.1

main90981-01015iKP6#..RHD..GEN197802-198005

12V 50/40W,12V 50/40W,KOITE

main90981-01016iKP6#..LHD..GEN197802-198005

12V 50/40W,KOITO

sub90981-01046

main90981-01017iKP6#..LHD197802-198005

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01018iKP6#..LHD197802-198005

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

sub90981-01H00

main90981-01028iKP6#..RHD197802-198005

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01029iKP6#..LHD..EUR197802-198005

12V 45/40W,*WSB,YELLOW,W/*HC

main90981-01030iKP60..RHD..GEN197802-198005

12V 50/40W,*WB,12V 50/40W,IKI

sub90981-01015

main90981-01031iKP60..LHD..GEN197802-198005

12V 50/40W,*WB,12V 50/40W,IKI

sub90981-01016

main90981-01035iKP6#..LHD..EUR197802-198005

12V 60/55W,*HWS,HALOGEN,WHITE,W/*HC

main90981-01037iKP6#..RHD..EUG197909-198005

12V 60/55W,*HWS,HALOGEN,WHITE

main90981-01038iKP6#..LHD..EUR197909-198005

HALOGEN,WHITE

main90981-04001iKP6#..RHD..GEN198005-198409

12V 65/55W,*WB,KOITO

sub90981-04H21

sub90981-04H22

main90981-04001iKP6#..LHD..GEN198308-198409

12V 65/55W,*WB,KOITO,LH DRIVE SPEC(*46)

sub90981-04H21

sub90981-04H22

main90981-04002iKP6#..LHD..GEN198308-198409

IKI,LH DRIVE SPEC(*46)

sub90981-04029

main90981-04002iKP60,62..RHD..GEN198005-198409

IKI

sub90981-04029

main90981-04003iKP60,62..LHD..GEN198005-198409

12V 65/55W,*WB,IKI

sub90981-04004

main90981-04004iKP6#..LHD..GEN198005-198409

12V 65/55W,*WB,KOITO

main90981-04005iKP6#..RHD198005-198409

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-04006iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198005-198409

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-04007iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP61..LHD..5F..GEN;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4198005-198409

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

sub90981-04H00

main90981-04008iKP6#..LHD..DLX..GEN198005-198409

12V 60/55W,*HWS,HALOGEN,WHITE

main90981-04009iKP6#..LHD..EUG198005-198409

12V 60/55W,*HYS,HALOGEN,YELLOW

main90981-04011iKP6#..RHD..DLX..GEN198005-198409

12V 60/55W,*HWS,HALOGEN,WHITE

81111RING, SEALED BEAM RETAINING

main81111-12421iKP6#..GEN197802-198005

IKI

main81111-16010iKP60,62..GEN198005-198409

IKI

main81111-16020iKP6#198005-198409

KOITO

main81111-22150iKP6#197802-198005

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10061iKP6#..GEN197802-198005

IKI

main81113-10310iKP6#198210-198409

KOITO

main81113-12070iKP6#197802-198005

KOITO

main81113-12571iKP6#198208-198210

KOITO

sub81113-10310

main81113-12581iKP6#..GEN198208-198409

IKI

main81153-16010iKP60,62..GEN198005-198208

IKI

sub81113-12581

main81153-16020iKP6#198005-198208

KOITO

sub81153-16220

81116COVER, SEALED BEAM UNIT

main81116-10060iKP60..GEN197802-197807

IKI

main81116-25050iKP60..GEN197802-197807

KOITO

81121SPRING, HEADLAMP TENSION

main81121-10170iKP6#..GEN197802-198005

IKI

main81121-16010iKP60,62..GEN198005-198208

IKI

sub81121-16230

main81121-16011iKP6#..GEN198208-198409

IKI

main81121-16020iKP6#198005-198409

KOITO

main81121-62010iKP6#197802-198005

KOITO

81131SCREW, HEADLAMP ADJUSTING

main81131-10031iKP6#198208-198409

KOITO

main81131-10150iKP6#197802-198005

KOITO

main81131-10170iKP6#..GEN197802-198005

IKI

main81131-16010iKP60,62..GEN198005-198409

IKI

sub81131-16230

main81131-20360iKP6#198005-198208

KOITO

sub81131-28050

81150HEADLAMP ASSY, LH

main81150-10090iKP6#..RHD197802-198005

SEMI-SEALED,WHITE

main81150-10100iKP6#..RHD..GEN197802-198005

KOITO

main81150-10110iKP6#..LHD197802-198005

SEMI-SEALED,WHITE

main81150-10130iKP6#..LHD197802-198005

SEMI-SEALED,YELLOW

main81150-10140iKP6#..LHD..GEN197802-198005

KOITO

main81150-10160iKP6#..LHD..EUR197802-198005

SEMI-SEALED,WHITE,W/*HC

main81150-10200iKP6#..LHD..EUR197802-198005

HALOGEN,WHITE,W/*HC

main81150-10210iKP6#..RHD..EUG197909-198005

HALOGEN,WHITE

main81150-10220iKP6#..LHD..EUR197909-198005

HALOGEN,WHITE

main81150-19666iKP60,62..RHD..GEN198005-198208

KOITO

sub81150-10101

sub91651-40612

main81150-19675iKP6#..RHD..GEN197802-198005

IKI

main81150-19676iKP60,62..RHD..GEN198005-198208

IKI

main81150-19686iKP60,62..LHD..GEN198005-198208

KOITO

sub81150-10141

main81150-19695iKP6#..LHD..GEN197802-198005

IKI

main81150-19696iKP60,62..LHD..GEN198005-198208

IKI

main81150-19706iKP6#..RHD198005-198208

SEMI-SEALED,WHITE

sub81150-10091

main81150-19716iKP6#..LHD198005-198208

SEMI-SEALED,WHITE

sub81150-10111

main81150-19726iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

SEMI-SEALED,YELLOW

sub81150-10131

main81150-80070iKP6#..RHD..EUG198005-198208

HALOGEN,WHITE

sub81150-10171

main81150-80071iKP6#..LHD..EUR198005-198208

HALOGEN,WHITE

sub81150-10181

main81150-80072iKP6#..LHD..EUG198005-198208

HALOGEN,YELLOW

sub81150-10191

main81150-80099iKP6#..EUG198005-198208

CIBIE,W/O SEALED BEAM

main81150-80245iKP6#..LHD..GEN198308-198409

KOITO,LH DRIVE SPEC(*46)

sub81150-10250

sub91651-40612

main81150-80245iKP6#..RHD..GEN198208-198409

KOITO

sub81150-10250

sub91651-40612

main81150-80246iKP6#..LHD..GEN198308-198409

IKI,LH DRIVE SPEC(*46)

sub81150-10260

main81150-80246iKP6#..RHD..GEN198208-198409

IKI

sub81150-10260

main81150-80247iKP6#..LHD..GEN198208-198409

KOITO

sub81150-10270

main81150-80248iKP6#..LHD..GEN198208-198409

IKI

main81150-80250iKP6#..RHD198208-198409

SEMI-SEALED,WHITE

sub81150-10300

sub91651-40612

main81150-80251iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198208-198409

SEMI-SEALED,WHITE

sub81150-10310

main81150-80252iKP60..LHD;KP61..LHD..GEN;KP61..LHD..EUG198208-198409

SEMI-SEALED,YELLOW

sub81150-10320

main81150-80254iKP6#..LHD..DLX..GEN198208-198409

HALOGEN,WHITE

sub81150-10340

sub91651-40612

main81150-80255iKP6#..LHD..EUG198208-198409

HALOGEN,YELLOW

sub81150-10350

main81150-80256iKP61..RHD..DLX..GEN198208-198409

HALOGEN,WHITE

sub81150-10380

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010iKP60,62..GEN198005-198208

IKI

sub81153-12511

main81113-16020iKP6#198005-198208

KOITO

sub81113-16220

main81153-10021iKP6#..GEN197802-198005

IKI

main81153-10250iKP6#198210-198409

KOITO

main81153-12010iKP6#197802-198005

KOITO

main81153-12501iKP6#198208-198210

KOITO

sub81153-10250

main81153-12511iKP6#..GEN198208-198409

IKI

8121914008BOLT, FOG LAMP

main81219-14008

9018905013

main90189-05013

9321914008

main93219-14008

13 parts on this diagram · 2 diagrams in section
