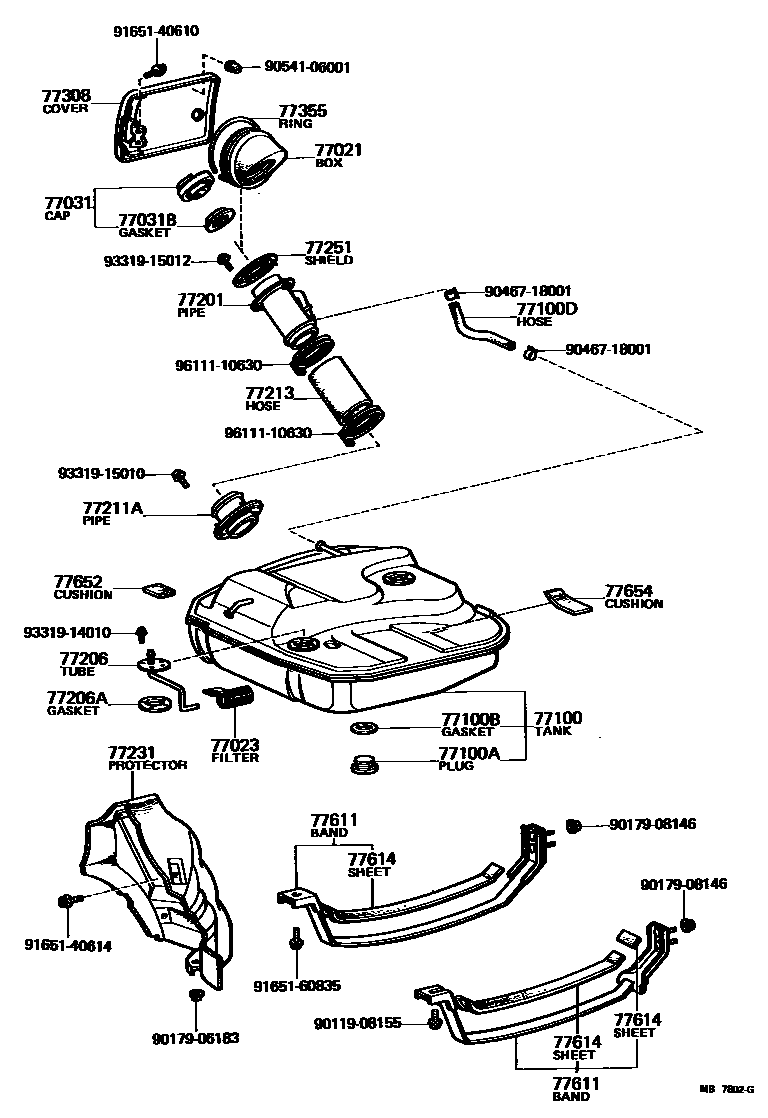

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

77021BOX ASSY, FUEL TANK INLET

main77292-10010iKP6#..SED197802-198005

main77292-10020iKP6#..SED198005-198409

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iKP6#197802-198409

77031CAP ASSY, FUEL TANK

main77310-12090iKP6#198005-198108

sub77310-12100

main77310-12100iKP6#198108-198409

main77310-14070iKP6#197802-198005

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iKP6#197802-198409

77100TANK ASSY, FUEL

main77001-10900iKP6#..SED197802-198005

main77001-10902iKP6#..SED198005-198208

main77001-19165iKP6#..SED198208-198409

main77001-96440iKP6#..4D197810-198005

sub77001-96443

main77001-96441iKP60,62..4D..GEN198005-198201

sub77001-96443

main77001-96443iKP60,61..4D..EUG198108-198201

main77001-96445iKP60,61..4D..EUR198201-198409

main77001-96446iKP6#..4D..GEN198201-198409

sub77001-96445

77100APLUG(FOR FUEL TANK)

main90341-24036iKP6#197802-198409

77100BGASKET(FOR FUEL TANK)

main90430-24047iKP6#197802-198409

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-18020iKP6#..SED198005-198208

sub77279-30010

main90445-18039iKP6#..SED197802-198409

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10060iKP6#..SED197802-198005

main77201-10070iKP6#..SED198005-198409

main77201-96440iKP6#..4D197810-198108

main77201-96441iKP6#..4D198108-198409

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77209-10030iKP6#..SED197802-198005

main77209-10050iKP6#..SED198005-198208

main77209-10080iKP6#..SED198208-198409

main77209-96440iKP6#..4D197810-198005

main77209-96441iKP6#..4D198005-198201

main77209-96444iKP6#..4D198201-198409

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iKP6#..4D197810-198409

main83361-20030iKP6#..SED197802-198409

77211APIPE, FUEL TANK FILLER, LOWER

main77011-10010iKP6#..SED197802-198005

sub77011-10020

main77011-10020iKP6#..SED198005-198409

77213HOSE, FUEL TANK SUB INLET

main77213-10030iKP6#..SED197802-198005

main77213-10040iKP6#..SED198005-198409

main77213-96440iKP6#..4D197810-198409

77231PROTECTOR, INLET TUBE

main77661-10030iKP6#..SED197802-198409

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iKP6#..4D197810-198005

main77291-22010iKP6#..SED197802-198409

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-10010iKP6#..SED197802-198208

sub77350-10020

main77350-10021iKP6#..SED198208-198409

main77350-96440iKP6#..4D197810-198409

77355RING, INLET BOX

main77371-10010iKP6#..SED197802-198005

main77371-10020iKP6#..SED198005-198409

77611BAND, FUEL TANK

main77610-10010iKP6#..SED197802-198005

RH

main77610-10020iKP6#..SED198005-198207

RH

sub77610-10050

main77610-10040iKP6#..SED198207-198409

RH

sub77610-10050

main77620-10010iKP6#..SED197802-198005

LH

main77620-10020iKP6#..SED198005-198207

LH

sub77620-10050

main77620-10040iKP6#..SED198207-198409

LH

sub77620-10050

77614SEAT, FUEL TANK BAND

main77616-10010iKP6#..SED197802-197906

41X565

main77616-10010iKP6#..SED197906-198005

RH,41X565

main77616-10020iKP6#..SED197906-198005

LH,37X525

main77616-10030iKP6#..SED198005-198409

37X610

main77654-10020iKP6#..SED197802-198005

60X30

77652CUSHION, FUEL TANK, NO.1

main77651-10020iKP6#..SED197802-198002

sub77651-10030

main77651-10030iKP6#..SED198002-198409

main77651-96440iKP6#..4D197810-198409

77654CUSHION, FUEL TANK, NO.2

main77652-10030iKP6#..SED197802-198002

sub77652-10040

main77652-10040iKP6#..SED198002-198409

9011908155

main90119-08155

9017906183

main90179-06183

9017908146

main90179-08146

9046718001

main90467-18001

9054106001

main90541-06001

9165140610

main91651-40610

9165140614

main91651-40614

9165160835

main91651-60835

9331914010

main93319-14010

9331915010

main93319-15010

9331915012

main93319-15012

9611110630

main96111-10630
