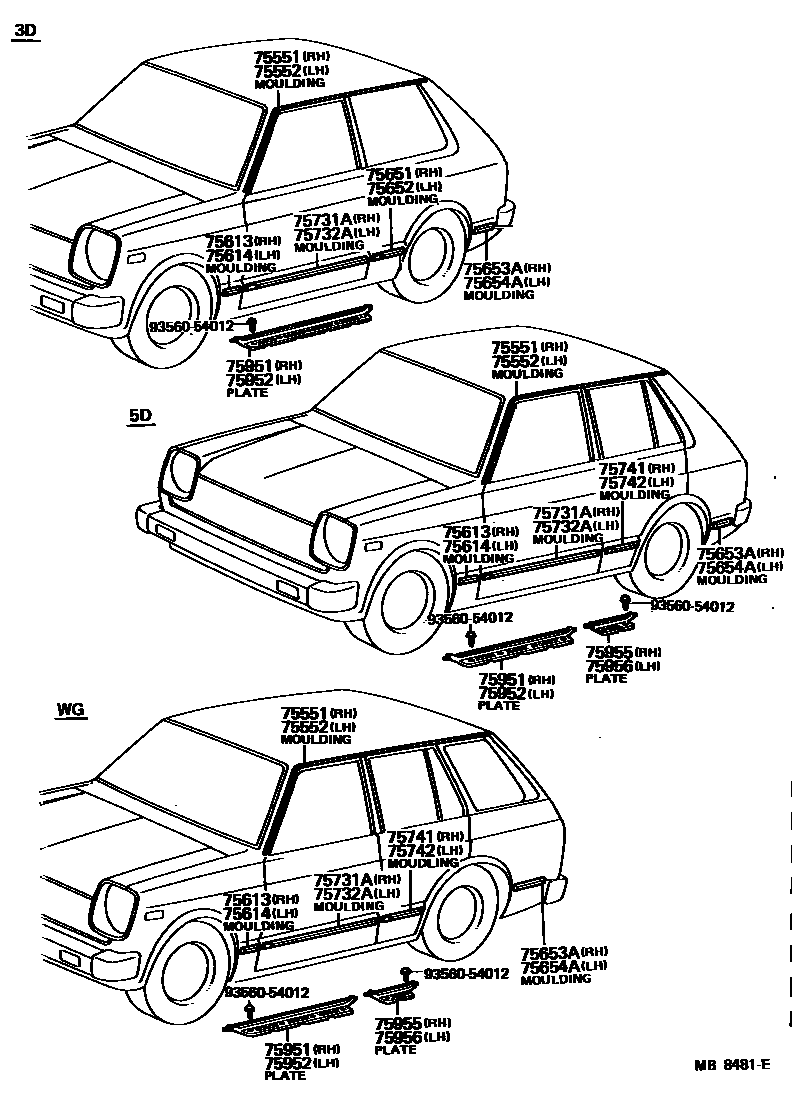

SIDE MOULDING

0001 1 0003 1 0004 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-10050iKP6#..SED..DLX197802-198409

CHROME PLATED

main75551-10060iKP6#..SED..EUG197802-198409

BLACK PAINTED

main75551-10060iKP61..S198208-198409

*WEG,BLACK PAINTED

main75551-96440iKP6#..4D197810-198409

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-10050iKP6#..SED197802-198409

CHROME PLATED

main75552-10060iKP61..S198208-198409

*WEG,BLACK PAINTED

main75552-10060iKP6#..SED..EUG197802-198409

BLACK PAINTED

main75552-96440iKP6#..4D..DLX197810-198409

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-10010iKP6#197802-197903

main75611-10011iKP6#197903-198005

main75611-10012iKP6#..DLX,STD198005-198409

main75611-10050iKP61..3D..5F..GEN198208-198409

W/WIDE MOULDING

main75611-10050iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-10010iKP6#197802-197903

main75612-10011iKP6#197903-198005

main75612-10012iKP6#..DLX,STD198005-198409

main75612-10050iKP61..3D..5F..GEN198208-198409

W/WIDE MOULDING

main75612-10050iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

75651MOULDING, QUARTER, OUTSIDE RH

main75651-10030iKP6#..3D197802-197903

main75651-10031iKP6#..3D197903-198005

main75651-10032iKP6#..3D198005-198409

main75651-10070iKP61..3D..S198208-198409

W/WIDE MOULDING

main75651-10070iKP60..3D..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

75652MOULDING, QUARTER, OUTSIDE LH

main75652-10020iKP6#..3D197802-197903

main75652-10021iKP6#..3D197903-198005

main75652-10022iKP6#..3D..(DLX,STD)198005-198409

main75652-10060iKP61..3D..S198208-198409

W/WIDE MOULDING

main75652-10060iKP60..3D..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-10010iKP6#..SED197802-197903

main75653-10011iKP6#..SED197903-198005

main75653-10012iKP6#..SED198005-198208

main75653-10050iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

main75653-10050iKP60..RHD..EUG;KP6#..5D..4F..DLX..EUG198208-198409

W/WIDE MOULDING

main75653-10100iKP6#..SED..(DLX,STD)198208-198409

main75653-96440iKP6#..4D197810-197903

main75653-96441iKP6#..4D197903-198005

main75653-96442iKP6#..4D198005-198208

main75653-96445iKP6#..4D198208-198409

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75653-96440iKP6#..4D197810-197903

main75653-96441iKP6#..4D197903-198005

main75653-96442iKP6#..4D198005-198208

main75654-10010iKP6#..SED197802-197903

main75654-10011iKP6#..SED197903-198005

main75654-10012iKP6#..SED198005-198208

main75654-10050iKP60..RHD..EUG;KP6#..5D..4F..DLX..EUG198208-198409

W/WIDE MOULDING

main75654-10050iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

main75654-10100iKP6#..SED..(DLX,STD)198208-198409

main75654-96441iKP6#..4D198208-198409

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-10020iKP6#..3D197802-197903

main75731-10021iKP6#..3D197903-198005

main75731-10030iKP6#..4D,5D197802-197903

main75731-10031iKP6#..4D,5D197903-198005

main75731-10032iKP6#..(4D,5D)..(DLX,STD)198005-198409

main75731-10041iKP6#..3D..(DLX,STD)198005-198409

main75731-10120iKP61..3D..S198208-198409

W/WIDE MOULDING

main75731-10120iKP60..3D..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

main75731-10150iKP61..5D..S198208-198409

W/WIDE MOULDING

main75731-10150iKP60..5D..STD..EUG198302-198409

BELGIUM CAMPAIN

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-10020iKP6#..3D197802-197903

main75732-10021iKP6#..3D197903-198005

main75732-10030iKP6#..4D,5D197802-197903

main75732-10031iKP6#..4D,5D197903-198005

main75732-10032iKP6#..(4D,5D)..(DLX,STD)198005-198409

main75732-10040iKP6#..3D..(DLX,STD)198005-198409

main75732-10120iKP60..3D..STD..EUG198302-198409

BELGIUM CAMPAIN,W/WIDE MOULDING

main75732-10120iKP61..3D..S198208-198409

W/WIDE MOULDING

main75732-10140iKP61..5D..S198208-198409

W/WIDE MOULDING

main75732-10140iKP60..5D..STD..EUG198302-198409

BELGIUM CAMPAIN

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-10010iKP6#..4D,5D197802-197903

main75741-10011iKP6#..4D,5D197903-198005

main75741-10012iKP6#..(4D,5D)..(DLX,STD)198005-198409

main75741-10060iKP61..5D..S198208-198409

W/WIDE MOULDING

main75741-10060iKP60..5D..STD..EUG198302-198409

BELGIUM CAMPAIN

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-10010iKP6#..4D,5D197802-197903

main75742-10011iKP6#..4D,5D197903-198005

main75742-10012iKP6#..(4D,5D)..(DLX,STD)198005-198409

main75742-10060iKP61..5D..S198208-198409

W/WIDE MOULDING

main75742-10060iKP60..5D..STD..EUG198302-198409

BELGIUM CAMPAIN

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-10010-01iKP6#..3D197802-198208

BLACK,BLACK,TRIM2#

sub67913-10010

main67913-10010-02iKP6#..3D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67913-10010

main67913-10010-03iKP6#..3D198208-198409

GRAY,GRAY,TRIM1#

sub67913-10010

main67913-10010-04iKP6#..3D197802-198005

BLUE,BLUE,TRIM8#

sub67913-10010

main67913-10010-06iKP6#..3D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67913-10010

main67913-10010-14iKP6#..3D198005-198208

BLUE,BLUE,TRIM8#

sub67913-10010

main67913-10010-16iKP6#..3D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67913-10010

main67913-10010-26iKP6#..3D..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67913-10010

main67913-10020-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

sub67913-10020

main67913-10020-02iKP6#..5D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67913-10020

main67913-10020-03iKP6#..4D,5D198208-198409

GRAY,GRAY,TRIM1#

sub67913-10020

main67913-10020-04iKP6#..4D,5D197802-198005

BLUE,BLUE,TRIM8#

sub67913-10020

main67913-10020-06iKP6#..4D,5D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67913-10020

main67913-10020-14iKP6#..5D198005-198208

BLUE,BLUE,TRIM8#

sub67913-10020

main67913-10020-16iKP6#..4D,5D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67913-10020

main67913-10020-26iKP6#..(4D,5D)..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67913-10020

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-10020-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

sub67913-10020

main67913-10020-02iKP6#..5D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67913-10020

main67913-10020-03iKP6#..4D,5D198208-198409

GRAY,GRAY,TRIM1#

sub67913-10020

main67913-10020-04iKP6#..4D,5D197802-198005

BLUE,BLUE,TRIM8#

sub67913-10020

main67913-10020-06iKP6#..4D,5D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67913-10020

main67913-10020-14iKP6#..5D198005-198208

BLUE,BLUE,TRIM8#

sub67913-10020

main67913-10020-16iKP6#..4D,5D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67913-10020

main67913-10020-26iKP6#..(4D,5D)..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67913-10020

main67914-10010-01iKP6#..3D197802-198208

BLACK,BLACK,TRIM2#

sub67914-10010

main67914-10010-02iKP6#..3D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67914-10010

main67914-10010-03iKP6#..3D198208-198409

GRAY,GRAY,TRIM1#

sub67914-10010

main67914-10010-04iKP6#..3D197802-198005

BLUE,BLUE,TRIM8#

sub67914-10010

main67914-10010-06iKP6#..3D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67914-10010

main67914-10010-14iKP6#..3D198005-198208

BLUE,BLUE,TRIM8#

sub67914-10010

main67914-10010-16iKP6#..3D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67914-10010

main67914-10010-26iKP6#..3D..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67914-10010

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-10010-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

sub67917-10010

main67917-10010-02iKP6#..5D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67917-10010

main67917-10010-03iKP6#..4D,5D198208-198409

GRAY,GRAY,TRIM1#

sub67917-10010

main67917-10010-04iKP6#..4D,5D197802-198005

BLUE,BLUE,TRIM8#

sub67917-10010

main67917-10010-06iKP6#..4D,5D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67917-10010

main67917-10010-14iKP6#..5D198005-198208

BLUE,BLUE,TRIM8#

sub67917-10010

main67917-10010-16iKP6#..4D,5D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67917-10010

main67917-10010-26iKP6#..(4D,5D)..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67917-10010

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-10010-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

sub67918-10010

main67918-10010-02iKP6#..5D..(DLX,STD)198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub67918-10010

main67918-10010-03iKP6#..4D,5D198208-198409

GRAY,GRAY,TRIM1#

sub67918-10010

main67918-10010-04iKP6#..4D,5D197802-198005

BLUE,BLUE,TRIM8#

sub67918-10010

main67918-10010-06iKP6#..4D,5D197802-198005

LIGHT BROWN,BROWN,TRIM4#

sub67918-10010

main67918-10010-14iKP6#..5D198005-198208

BLUE,BLUE,TRIM8#

sub67918-10010

main67918-10010-16iKP6#..4D,5D198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub67918-10010

main67918-10010-26iKP6#..(4D,5D)..(DLX,STD)198208-198409

BROWN,BROWN,TRIM4#

sub67918-10010

9356054012

main93560-54012

17 parts on this diagram · 3 diagrams in section
