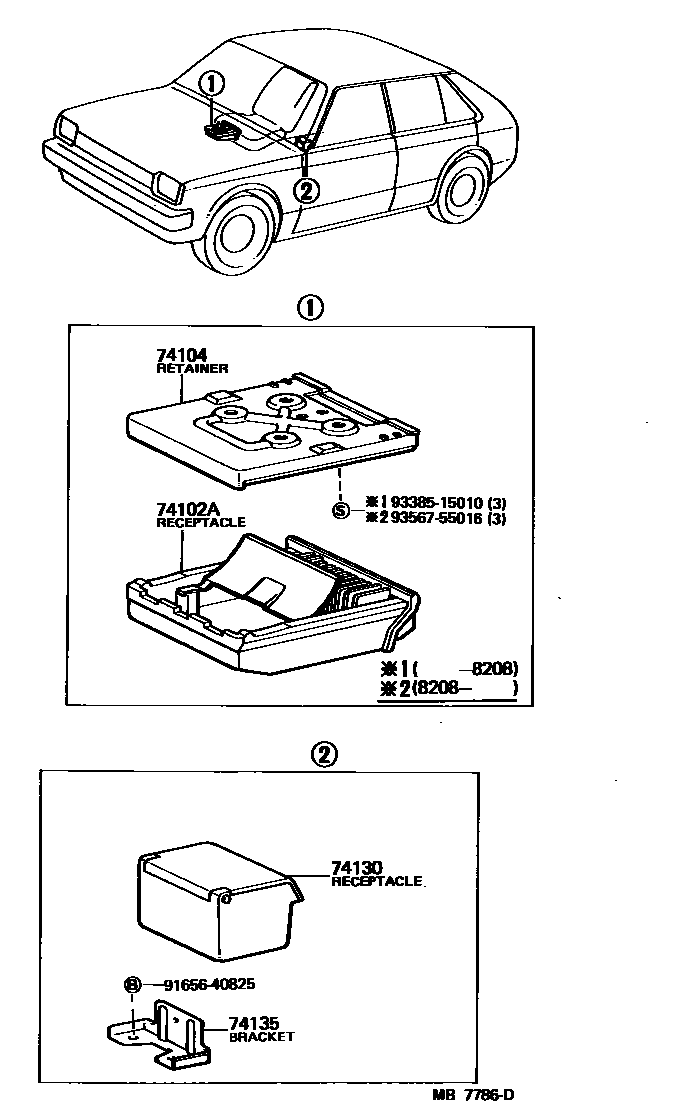

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10010-01iKP6#197802-198208

BLACK,BLACK,TRIM2#

sub74102-10010

main74102-10010-04iKP6#197802-198208

BLUE,BLUE,TRIM8#

sub74102-10010

main74102-10010-05iKP6#197802-198005

BEIGE,BEIGE,TRIM4#

sub74102-10010

main74102-10010-06iKP6#198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub74102-10010

main74102-10020iKP6#198208-198409

sub74102-95409

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10040iKP6#197802-198208

main74104-10050iKP6#198208-198409

74130RECEPTACLE ASSY, REAR ASH

main74130-12030-01iKP60197802-197806

BLACK,BLACK,TRIM2#

sub74130-20060

main74130-20060-01iKP6#197806-198409

BLACK,BLACK,TRIM2#

sub74130-16010

sub74130-20060

main74130-20060-04iKP6#..SED198005-198208

BLUE,BLUE,TRIM8#

sub74130-16010

sub74130-20060

main74130-20060-26iKP6#198005-198208

LIGHT BROWN,BROWN,TRIM4#

sub74130-16010

sub74130-20060

74135BRACKET, REAR ASH RECEPTACLE

main58854-12010iKP6#197802-198409

9165640825

main91656-40825

9338515010

main93385-15010

9356755016

main93567-55016

7 parts on this diagram · 1 diagram in section
