ARMREST & VISOR

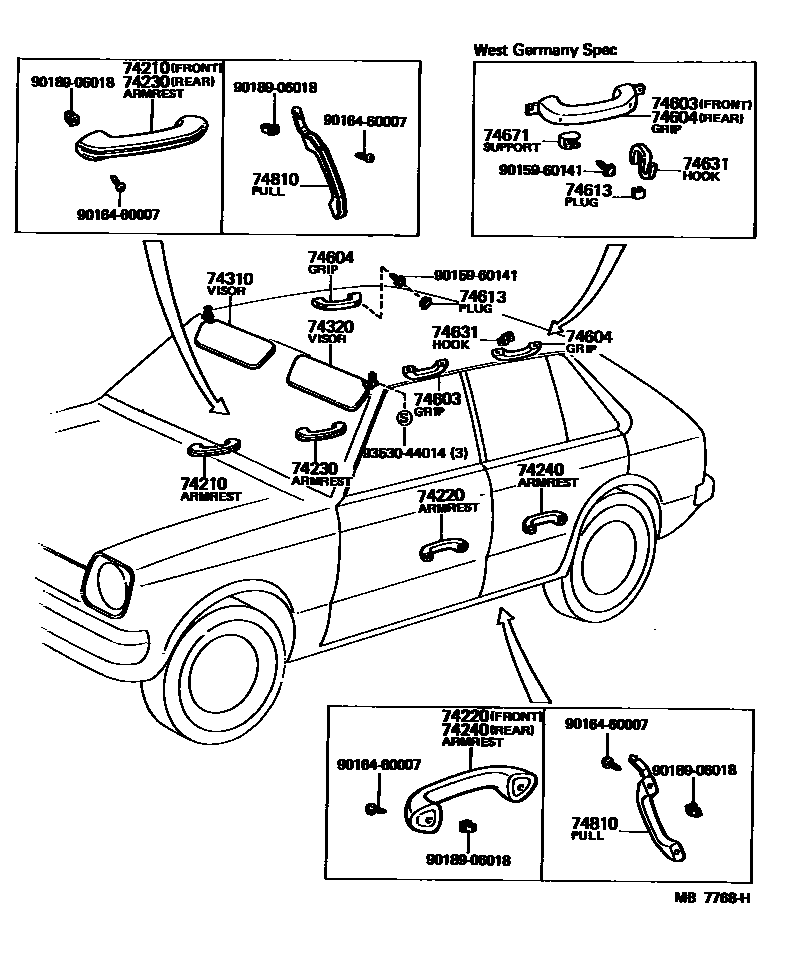

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
sub74210-12020¥1,820
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
sub74210-12020¥1,820
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub74210-12020¥1,820
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
sub74210-12020¥1,820
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
sub74210-12020¥1,820
74220ARMREST ASSY, FRONT, LH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
sub74210-12020¥1,820
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
sub74210-12020¥1,820
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub74210-12020¥1,820
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
sub74210-12020¥1,820
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
sub74210-12020¥1,820
74230ARMREST ASSY, REAR, RH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
sub74210-12020¥1,820
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
sub74210-12020¥1,820
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub74210-12020¥1,820
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
sub74210-12020¥1,820
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
sub74210-12020¥1,820
74240ARMREST ASSY, REAR, LH
main74210-12020-01i197802-198208
BLACK,BLACK,TRIM2#
sub74210-12020¥1,820
main74210-12020-03i198208-198409
GRAY,GRAY,TRIM1#
sub74210-12020¥1,820
main74210-12020-10i197802-198005
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-12i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub74210-12020¥1,820
main74210-12020-14i197802-198208
BLUE,BLUE,TRIM8#
sub74210-12020¥1,820
main74210-12020-20i198005-198208
LIGHT BROWN,LIGHT BROWN,TRIM4#
sub74210-12020¥1,820
main74210-12020-30i198208-198409
BROWN,BROWN,TRIM4#
sub74210-12020¥1,820
74310VISOR ASSY, RH
main74310-10080-03i197802-198005
GRAY,GRAY,TRIM2#
sub74310-10080¥2,070
main74310-10080-04i197802-198005
BLUE,BLUE,TRIM8#
sub74310-10080¥2,070
main74310-10080-05i197802-198005
BEIGE,BEIGE,TRIM4#
sub74310-10080¥2,070
main74310-10080-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74310-10080¥2,070
main74310-10080-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74310-10080¥2,070
main74310-10080-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74310-10080¥2,070
main74310-10090-03i197807-198005
W/MIRROR,GRAY,GRAY,TRIM2#
sub74310-10090¥2,930
main74310-10090-04i197807-198005
W/MIRROR,BLUE,BLUE,TRIM8#
sub74310-10090¥2,930
main74310-10090-05i197807-198005
W/MIRROR,BEIGE,BEIGE,TRIM4#
sub74310-10090¥2,930
main74310-10090-08i198005-198208
W/MIRROR,IVORY,IVORY,TRIM2#,4#,8#
sub74310-10090¥2,930
main74310-10090-13i198208-198409
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
sub74310-10090¥2,930
main74310-10090-18i198208-198409
W/MIRROR,IVORY,IVORY,TRIM3#,4#
sub74310-10090¥2,930
74320VISOR ASSY, LH
main74320-10040-03i197802-198005
GRAY,GRAY,TRIM2#
sub74320-10040¥2,070
main74320-10040-04i197802-198005
BLUE,BLUE,TRIM8#
sub74320-10040¥2,070
main74320-10040-05i197802-198005
BEIGE,BEIGE,TRIM4#
sub74320-10040¥2,070
main74320-10040-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74320-10040¥2,070
main74320-10040-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74320-10040¥2,070
main74320-10040-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74320-10040¥2,070
main74320-10050-03i197810-198005
W/MIRROR,GRAY,GRAY,TRIM2#
sub74320-10050¥2,930
main74320-10050-04i197810-198005
W/MIRROR,BLUE,BLUE,TRIM8#
sub74320-10050¥2,930
main74320-10050-05i197810-198005
W/MIRROR,BEIGE,BEIGE,TRIM4#
sub74320-10050¥2,930
main74320-10050-08i198005-198208
W/MIRROR,IVORY,IVORY,TRIM2#,4#,8#
sub74320-10050¥2,930
main74320-10050-13i198208-198409
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
sub74320-10050¥2,930
main74320-10050-18i198208-198409
W/MIRROR,IVORY,IVORY,TRIM3#,4#
sub74320-10050¥2,930
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-95800-03i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
sub74603-95800¥2,230
main74603-95800-04i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub74603-95800¥2,230
main74603-95800-05i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
sub74603-95800¥2,230
main74603-95800-08i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
sub74603-95800¥2,230
main74603-95800-13i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
sub74603-95800¥2,230
main74603-95800-18i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
sub74603-95800¥2,230
main74610-10020-03i197802-198005
GRAY,GRAY,TRIM2#
sub74610-10020¥730
main74610-10020-04i197802-198005
BLUE,BLUE,TRIM8#
sub74610-10020¥730
main74610-10020-05i197802-198005
BEIGE,BEIGE,TRIM4#
sub74610-10020¥730
main74610-10020-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74610-10020¥730
main74610-10020-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74610-10020¥730
main74610-10020-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74610-10020¥730
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-95800-03i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
sub74603-95800¥2,230
main74603-95800-04i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub74603-95800¥2,230
main74603-95800-05i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
sub74603-95800¥2,230
main74603-95800-08i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
sub74603-95800¥2,230
main74603-95800-13i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
sub74603-95800¥2,230
main74603-95800-18i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
sub74603-95800¥2,230
main74610-10020-03i197802-198005
GRAY,GRAY,TRIM2#
sub74610-10020¥730
main74610-10020-04i197802-198005
BLUE,BLUE,TRIM8#
sub74610-10020¥730
main74610-10020-05i197802-198005
BEIGE,BEIGE,TRIM4#
sub74610-10020¥730
main74610-10020-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74610-10020¥730
main74610-10020-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74610-10020¥730
main74610-10020-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74610-10020¥730
74613PLUG, ASSIST GRIP
main74617-14010-03i197802-198005
GRAY,GRAY,TRIM2#
sub74617-14010¥120
main74617-14010-04i197802-198005
BLUE,BLUE,TRIM8#
sub74617-14010¥120
main74617-14010-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
sub74617-14010¥120
main74617-14010-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74617-14010¥120
main74617-14010-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74617-14010¥120
main74617-14010-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74617-14010¥120
main74617-22010-03i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
sub74617-22010¥330
main74617-22010-04i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub74617-22010¥330
main74617-22010-05i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
sub74617-22010¥330
main74617-22010-08i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
sub74617-22010¥330
main74617-22010-18i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
sub74617-22010¥330
main74617-22010-23i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
sub74617-22010¥330
74631HOOK, COAT, A
main74631-14010-03i197802-198005
GRAY,GRAY,TRIM2#
sub74631-14010¥320
sub74631-20040¥330
main74631-14010-04i197802-198005
BLUE,BLUE,TRIM8#
sub74631-14010¥320
sub74631-20040¥330
main74631-14010-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
sub74631-14010¥320
sub74631-20040¥330
main74631-14010-08i198005-198208
IVORY,IVORY,TRIM2#,4#,8#
sub74631-14010¥320
sub74631-20040¥330
main74631-14010-13i198208-198409
LIGHT GRAY,GRAY,TRIM1#
sub74631-14010¥320
sub74631-20040¥330
main74631-14010-18i198208-198409
IVORY,IVORY,TRIM3#,4#
sub74631-14010¥320
sub74631-20040¥330
74671SUPPORT, ASSIST GRIP
main74671-22010-03i197802-198005
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
sub74671-22010¥460
main74671-22010-04i197802-198005
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub74671-22010¥460
main74671-22010-05i197802-198005
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
sub74671-22010¥460
main74671-22010-08i198005-198208
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
sub74671-22010¥460
main74671-22010-18i198208-198409
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
sub74671-22010¥460
main74671-22010-23i198208-198409
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
sub74671-22010¥460
74810PULL ASSY, DOOR, INSIDE
main74641-16010-01i197907-198208
BLACK,BLACK,TRIM2#
sub74641-16010¥710
main74641-16010-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub74641-16010¥710
main74641-16010-03i198208-198409
W/RR DOOR,GRAY,GRAY,TRIM1#
sub74641-16010¥710
main74641-16010-03i198208-198409
GRAY,GRAY,TRIM1#
sub74641-16010¥710
main74641-16010-04i197907-198208
BLUE,BLUE,TRIM8#
sub74641-16010¥710
main74641-16010-06i197907-198005
LIGHT BROWN,BROWN,TRIM4#
sub74641-16010¥710
main74641-16010-16i198005-198208
LIGHT BROWN,BROWN,TRIM4#
sub74641-16010¥710
main74641-16010-36i198208-198409
W/RR DOOR,BROWN,BROWN,TRIM4#
sub74641-16010¥710
main74641-16010-36i198208-198409
BROWN,BROWN,TRIM4#
sub74641-16010¥710
main74811-12020-04i197802-197907
BLUE,BLUE,TRIM8#
sub74811-12020¥1,120
main74811-12020-11i197802-197907
BLACK,BLACK,TRIM2#
sub74811-12020¥1,120
main74811-12020-16i197802-197907
LIGHT BROWN,BROWN,TRIM4#
sub74811-12020¥1,120
9015960141
main90159-60141¥190
9016460007
main90164-60007¥140
9018906018
main90189-06018¥80
9353044014
main93530-44014¥120

16 parts on this diagram · 1 diagram in section
