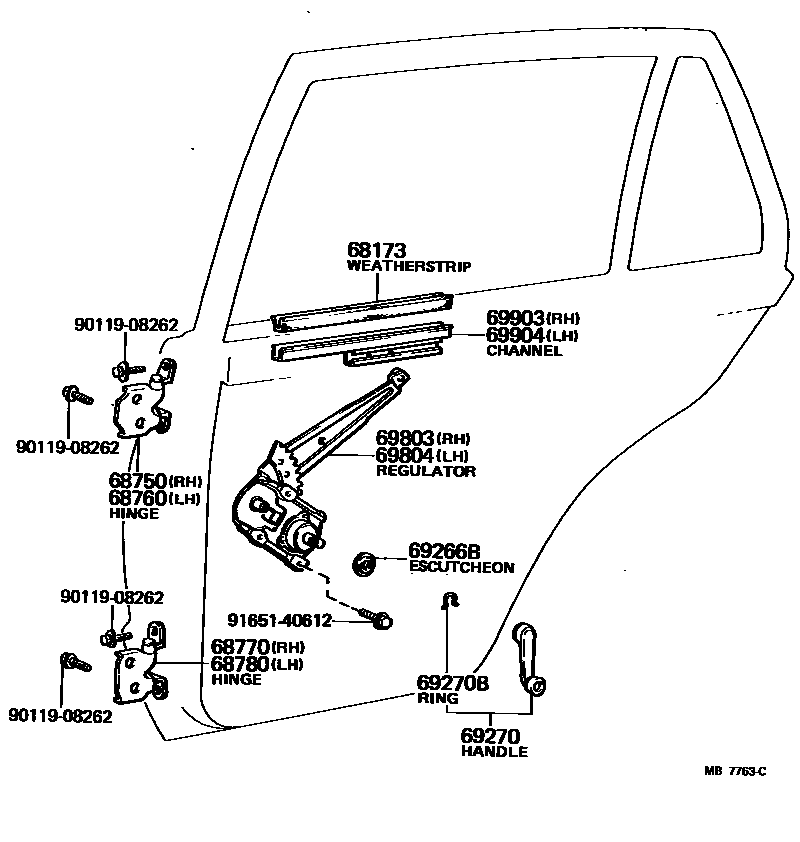

REAR DOOR WINDOW REGULATOR & HINGE
68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
sub90520-01274
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
sub69830-14030
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
sub69840-14030
69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
T=4.0 GLASS
T=3.5 GLASS
69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
T=4.0 GLASS
T=3.5 GLASS
9011908262
main90119-08262
9165140612
main91651-40612
14 parts on this diagram · 1 diagram in section
