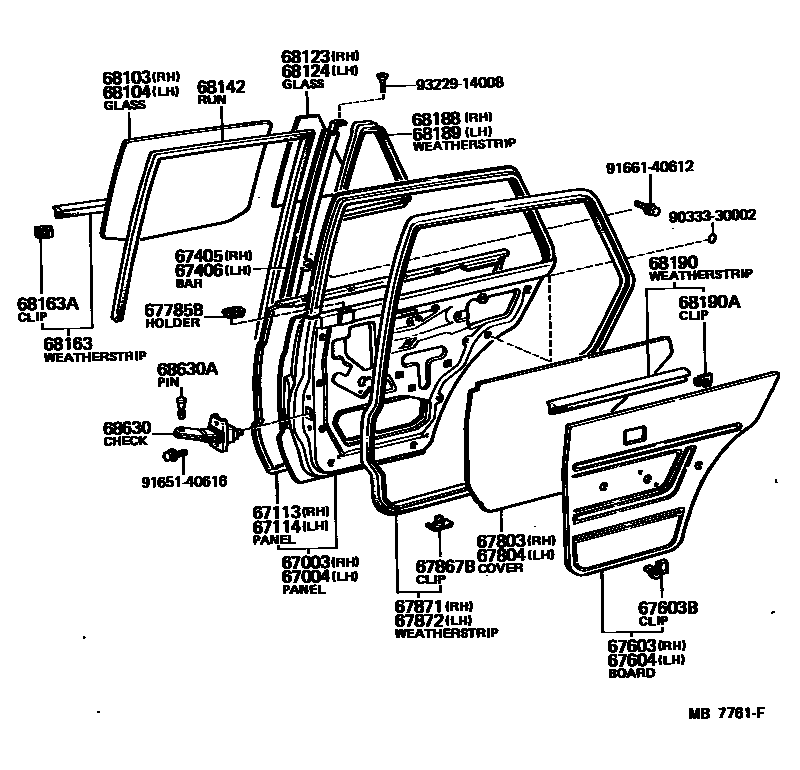

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,LIGHT BROWN,BROWN,TRIM4#
W/ARMREST,LIGHT BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
LIGHT GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
LIGHT GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
DARK WINE,DARK WINE,TRIM3#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
W/ARMREST,BLACK,BLACK,TRIM2#
W/ARMREST,BLUE,BLUE,TRIM8#
W/ARMREST,LIGHT BROWN,BROWN,TRIM4#
W/ARMREST,LIGHT BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
LIGHT GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
LIGHT GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
sub69751-20031
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
*TEM,T=3.5
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TT,T=3.5
68142RUN, REAR DOOR GLASS
L=1898
L=1825
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
RH
RH
RH
LH
LH
LH
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68630CHECK ASSY, REAR DOOR
9033330002
main90333-30002
9165140616
main91651-40616
9166140612
main91661-40612
9322914008
main93229-14008
32 parts on this diagram · 1 diagram in section
