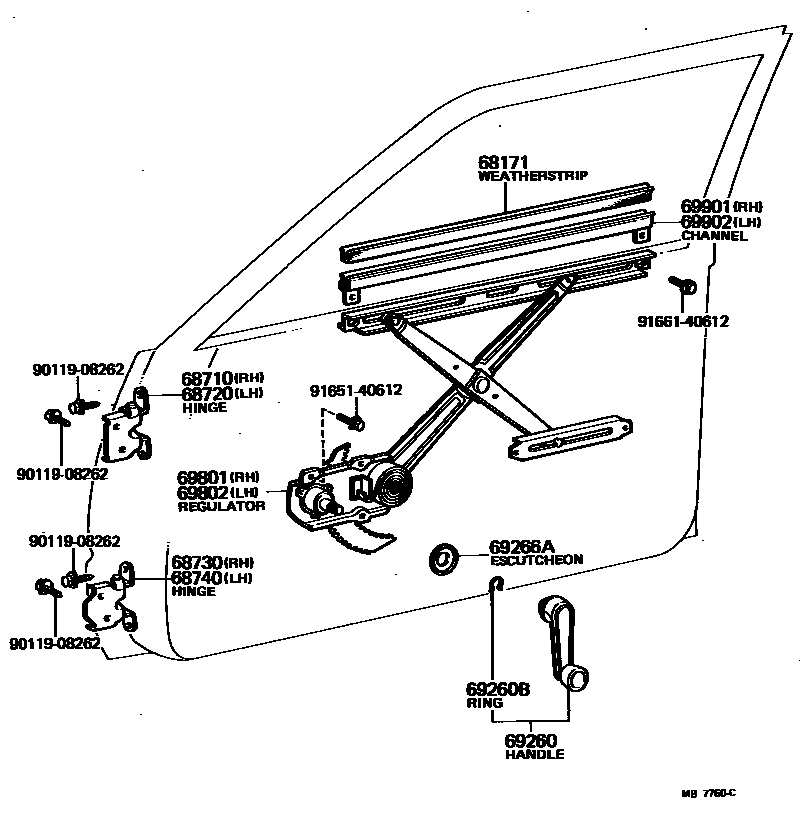

FRONT DOOR WINDOW REGULATOR & HINGE
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
DARK WINE,RED/MAROON,TRIM3#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
BLACK
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
T=4.0 GLASS
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
T=4.0 GLASS
9011908262
9165140612
9166140612
15 parts on this diagram · 1 diagram in section
