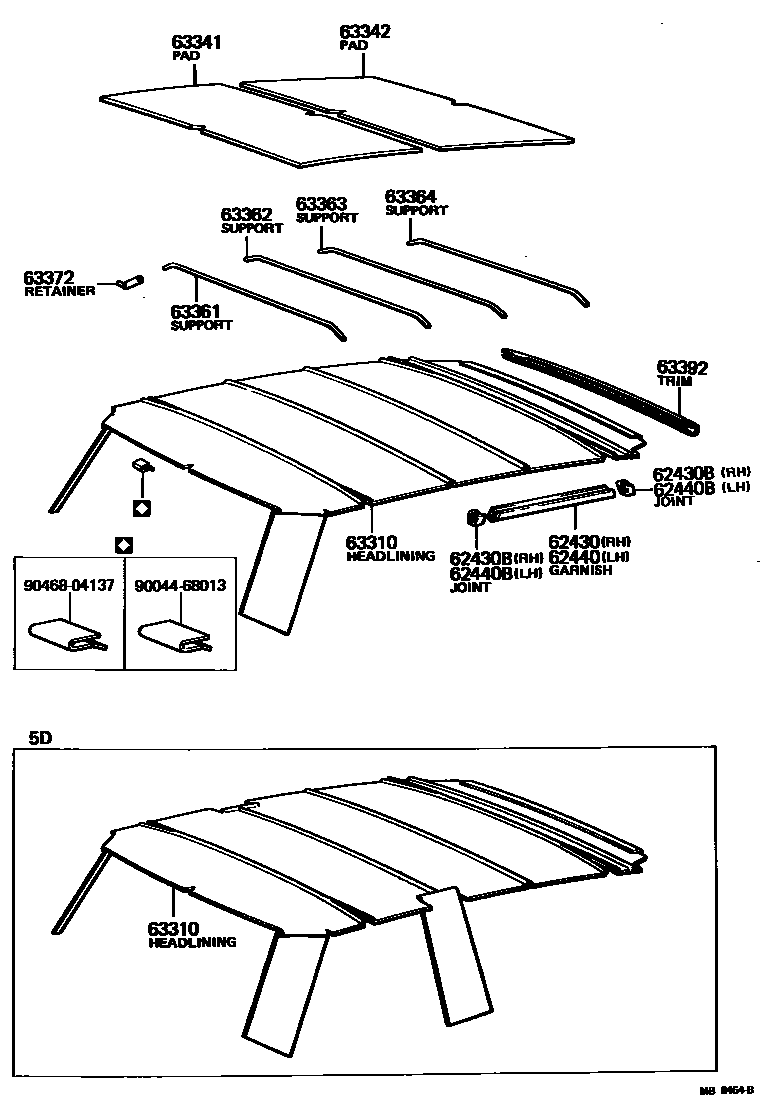

ROOF HEADLINING & SILENCER PAD
62430GARNISH ASSY, ROOF SIDE RAIL, RH
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM3#,4#
62430BJOINT, ROOF SIDE RAIL GARNISH, RH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM3#,4#
62440BJOINT, ROOF SIDE RAIL GARNISH, LH
63310HEADLINING ASSY, ROOF
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
sub63310-10080
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
sub63310-10080
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
sub63310-10080
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
sub63310-10080
WEST GERMANY SPEC,GRAY,GRAY,TRIM2#
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,4#,8#
WEST GERMANY SPEC,LIGHT GRAY,GRAY,TRIM1#
WEST GERMANY SPEC,IVORY,IVORY,TRIM3#,4#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63361SUPPORT, ROOF HEADLINING, NO.1
63362SUPPORT, ROOF HEADLINING, NO.2
63363SUPPORT, ROOF HEADLINING, NO.3
63364SUPPORT, ROOF HEADLINING, NO.4
63372RETAINER, HEADLINING SUPPORT
63392TRIM, ROOF HEADLINING, REAR
WEST GERMANY SPEC,W/PAD
9004468013
main90044-68013
9046804137
main90468-04137
15 parts on this diagram · 2 diagrams in section
