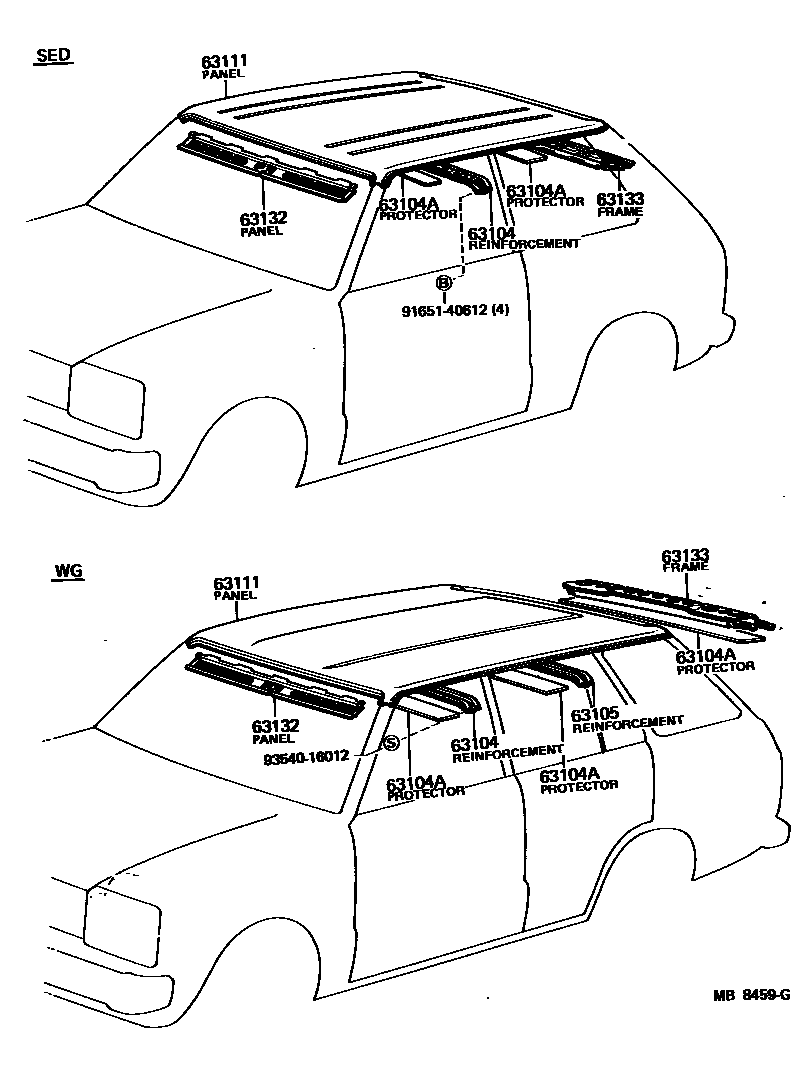

ROOF PANEL & BACK WINDOW GLASS

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-10040iKP6#..SED197802-198409

main63141-96440iKP6#..4D197810-198409

63104APROTECTOR, ROOF REINFORCEMENT

main63175-10010iKP6#..SED..LHD..EUG197802-198409

*WEG,BACK WINDOW UPR FRAME

main63331-14010iKP6#..SED..LHD..EUG197802-198409

*WEG,CTR,RR

sub63331-30010

main63332-15010iKP60,62..LHD..4D..EUG197810-198409

*WEG,BACK WINDOW UPR FRAME

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-96440iKP6#..4D197810-198409

63111PANEL, ROOF

main63111-10050iKP6#..SED197802-198409

main63111-96440iKP6#..4D197810-198409

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10070iKP6#197802-198409

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-10020iKP6#..SED197802-198409

W/RR WINDOW WIPER

main63105-10030iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG197802-198208

main63105-10030iKP6#..SED..GEN;KP60..STD..EUG198208-198409

W/O RR WINDOW WIPER,*DEF

main63105-10040iKP6#..SED197802-198409

W/O RR WINDOW WIPER,*DEF

main63105-96440iKP6#..4D197810-198409

9165140612

main91651-40612

9354016012

main93540-16012

8 parts on this diagram · 1 diagram in section
