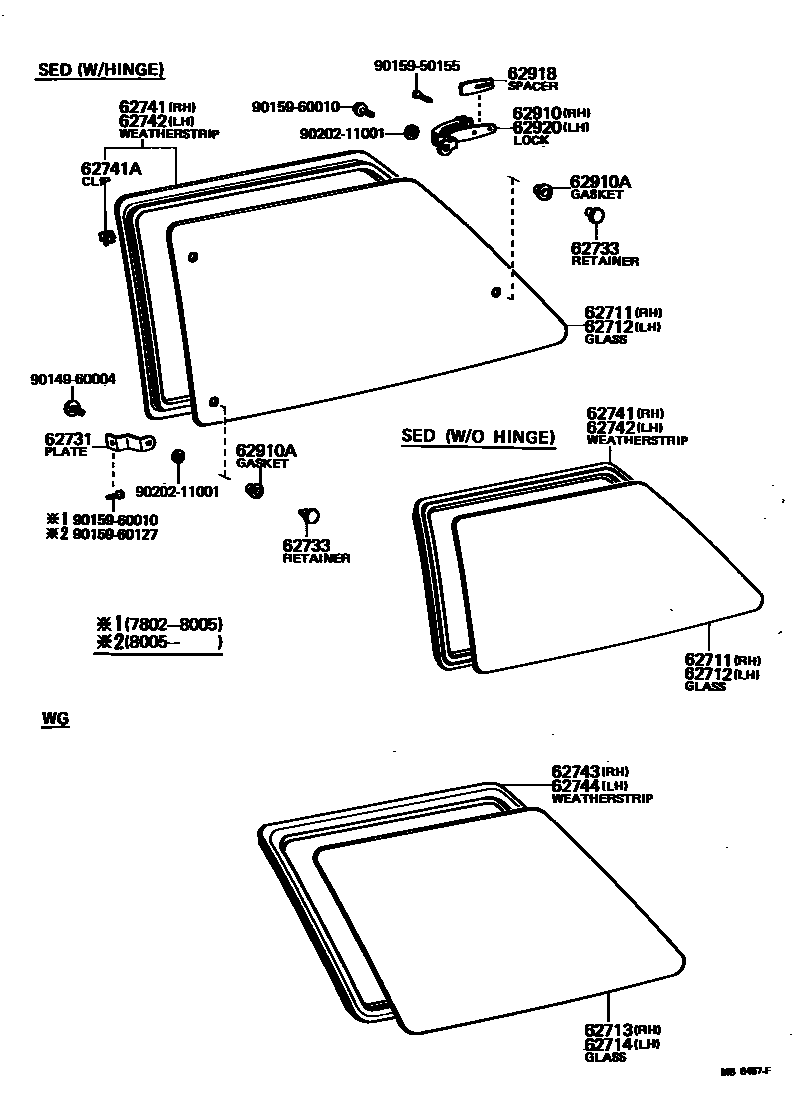

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-10080iKP60..3D..DLX;KP61..RHD..3D;KP61..LHD..3D..EUG;KP61..LHD..3D..GEN197802-198409

*TT,T=4.0,W/HINGE

main62711-10090iKP6#..3D197802-198409

*TEM,T=4.0,W/HINGE

sub62711-10080

main62711-10100iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

*TT,T=4.0,W/O HINGE

sub62711-10101

main62711-10101iKP60..3D;KP61,62..RHD..3D;KP62..LHD..3D..5F;KP62..3D..4F..EUG;KP61..LHD..3D..EUG;KP61,62..LHD..3D..(3FC,4F)..GEN198005-198409

*TT,T=3.5,W/O HINGE

main62711-10110iKP6#..3D197802-198005

*TEM,T=4.0,W/O HINGE

sub62711-10111

main62711-10111iKP6#..3D198005-198409

*TEM,T=3.5,W/O HINGE

62712GLASS, QUARTER WINDOW, LH

main62712-10040iKP60..3D;KP61..3D..EUG;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198409

*TT,T=4.0,W/HINGE

main62712-10050iKP6#..3D..(DLX,S)197802-198409

*TEM,T=4.0,W/HINGE

main62712-10060iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

*TT,T=4.0,W/O HINGE

sub62712-10061

main62712-10061iKP60..3D;KP61,62..RHD..3D;KP62..LHD..3D..5F;KP62..3D..4F..EUG;KP61..LHD..3D..EUG;KP61,62..LHD..3D..(3FC,4F)..GEN198005-198409

*TT,T=3.5,W/O HINGE

main62712-10070iKP6#..3D197802-198005

*TEM,T=4.0,W/O HINGE

sub62712-10071

main62712-10071iKP6#..3D198005-198409

*TEM,T=3.5,W/O HINGE

62713GLASS, QUARTER WINDOW, REAR RH

main62713-96440iKP6#..4D197810-198005

*TEM,T=4.0

sub62713-96441

main62713-96441iKP6#..4D198005-198409

*TEM,T=3.5

62714GLASS, QUARTER WINDOW, REAR LH

main62714-96440iKP6#..4D197810-198005

*TEM,T=4.0

sub62714-96441

main62714-96441iKP6#..4D198005-198409

*TEM,T=3.5

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-10080iKP6#..3D..(DLX,S)197802-198409

W/HINGE

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-12010iKP6#..3D197802-198409

W/HINGE

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-10050iKP6#..3D197802-198409

W/HINGE

main62741-10060iKP6#..3D197802-198409

W/O HINGE

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62759-12010iKP6#..3D197802-198409

W/HINGE

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-10050iKP6#..3D197802-198409

W/HINGE

main62742-10060iKP6#..3D197802-198409

W/O HINGE

62743WEATHERSTRIP, QUARTER WINDOW, REAR RH

main62743-96440iKP6#..4D197810-198409

62744WEATHERSTRIP, QUARTER WINDOW, REAR LH

main62744-96440iKP6#..4D197810-198409

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-10060iKP6#..3D197802-198409

W/HINGE

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main90385-11001iKP6#..3D197802-198409

W/HINGE

62918SPACER, QUARTER WINDOW LOCK SUPPORT

main62918-10030iKP6#..3D197802-198409

W/HINGE

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-10060iKP6#..3D197802-198409

W/HINGE

9014960004

main90149-60004

9015950155

main90159-50155

9015960010

main90159-60010

9015960127

main90159-60127

9020211001

main90202-11001

20 parts on this diagram · 1 diagram in section
