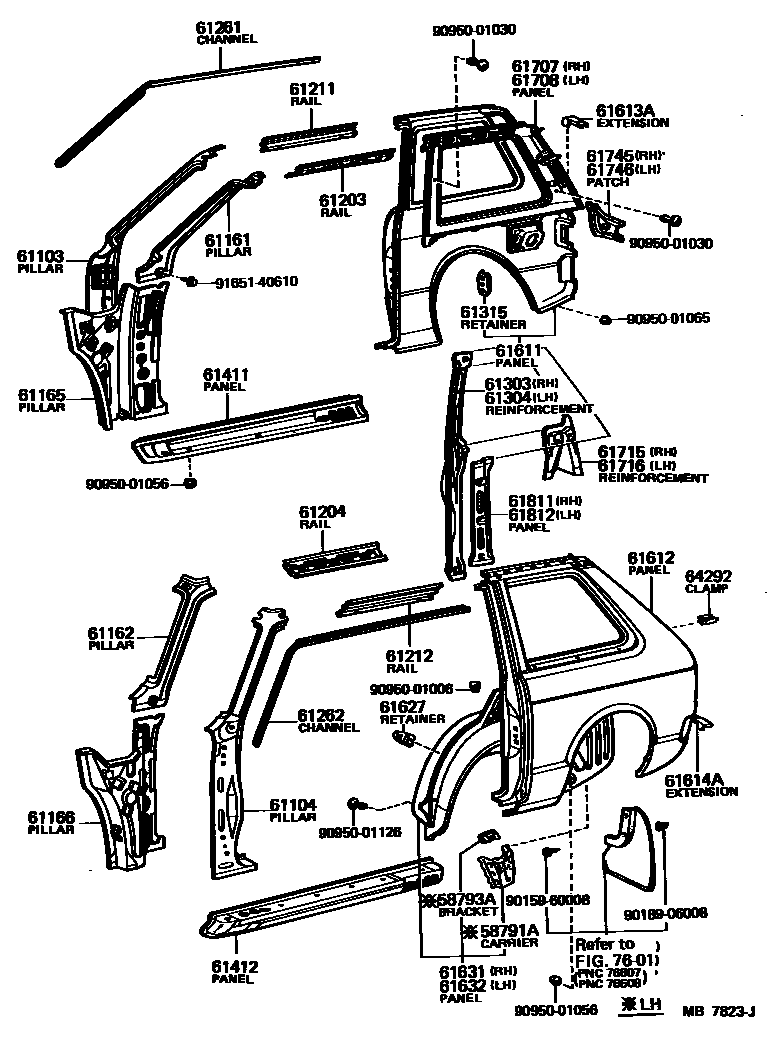

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

58791ACARRIER, JACK

main58791-10020iKP6#..SED197802-198409

58793ABRACKET, JACK CARRIER

main58793-10020iKP6#..SED197802-198409

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61027-10010iKP6#¥25,600197802-198208

sub61027-10011¥25,700

main61027-10011iKP6#¥25,700198208-198409

sub61027-10040¥26,100

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61028-10010iKP6#¥23,300197802-198208

sub61028-10011¥23,300

main61028-10011iKP6#¥23,300198208-198409

61161PILLAR, FRONT BODY, UPPER INNER RH

main61021-10020iKP6#198208-198409

main61161-10040iKP6#197802-198208

61162PILLAR, FRONT BODY, UPPER INNER LH

main61022-10010iKP6#198208-198409

main61162-10040iKP6#197802-198208

61165PILLAR, FRONT BODY LOWER INNER, RH

main61023-10013iKP6#..RHD¥12,200198306-198409

W/O RR WIPER

main61023-10020iKP6#..RHD197802-198108

sub61023-10021

main61023-10021iKP6#..RHD198108-198208

main61023-10022iKP6#..RHD¥12,200198208-198306

W/O RR WIPER

sub61023-10013¥12,200

main61023-10030iKP6#..LHD197802-198208

sub61023-10050

main61023-10031iKP6#..LHD¥11,700198208-198409

sub61023-10051

main61023-10060iKP62..LHD..GEN198005-198208

W/RADIO,HEATER

sub61023-10050

main61023-10080iKP6#..RHD198208-198409

W/RR WIPER

61166PILLAR, FRONT BODY LOWER INNER, LH

main61024-10012iKP6#..SED..RHD..GEN198306-198409

main61024-10020iKP6#..RHD197802-198005

main61024-10021iKP6#..RHD¥22,800198005-198208

sub61024-10020

main61024-10022iKP6#..SED..RHD..GEN198208-198306

sub61024-10012

main61024-10030iKP6#..LHD¥11,800197802-198005

sub61024-10031¥12,200

main61024-10031iKP6#..SED..LHD¥12,200198005-198208

sub61024-10060¥12,200

main61024-10032iKP6#..LHD..GEN198208-198409

main61024-10060iKP62..LHD..GEN¥12,200198005-198208

W/RADIO,HEATER

main61024-10080iKP6#..RHD..EUG198208-198409

main61024-10090iKP6#..LHD..EUR198208-198409

sub61024-10051

main61024-96441iKP6#..RHD..4D¥6,900197908-198005

sub61024-10021¥22,800

main61024-96442iKP6#..LHD..4D197908-198208

main61024-96445iKP60..RHD..4D¥12,200198306-198409

sub61024-10012

main61024-96446iKP60..RHD..4D¥12,200198208-198306

sub61024-96445¥12,200

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-10040iKP6#..3D197802-198409

main61231-10050iKP6#..5D¥5,100197802-198003

sub61231-10051

main61231-10051iKP6#..5D198003-198409

main61231-96440iKP6#..4D197810-198409

main61232-10050iKP6#..LHD..3D198001-198409

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61231-10040iKP6#..LHD..3D197802-198409

main61232-10040iKP6#..5D¥5,100197802-198003

sub61232-10041

main61232-10041iKP6#..5D198003-198409

main61232-10050iKP6#..RHD..3D198001-198409

main61232-96440iKP6#..4D197810-198409

61211RAIL, ROOF SIDE, OUTER RH

main61211-10040iKP6#..3D197802-198409

main61211-10050iKP6#..5D197802-198409

main61211-96440iKP6#..4D197810-198409

61212RAIL, ROOF SIDE, OUTER LH

main61211-10040iKP6#..3D197802-198409

main61212-10040iKP6#..5D197802-198409

main61212-96440iKP6#..4D197810-198409

61261CHANNEL, ROOF DRIP, RH

main61261-10040iKP6#..SED¥4,060197802-198409

main61261-96440iKP6#..4D197810-198409

61262CHANNEL, ROOF DRIP, LH

main61262-10040iKP6#..SED¥4,060197802-198409

main61262-96440iKP6#..4D197810-198409

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-10040iKP6#..3D..EUR197802-198005

main61303-10041iKP6#..3D..EUR¥13,600198005-198108

sub61303-10042

main61303-10042iKP60..RHD..3D..GEN198108-198409

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-10030iKP6#..3D..EUR197802-198005

main61304-10031iKP6#..3D..EUR¥13,600198005-198108

sub61304-10032

main61304-10032iKP60..RHD..3D..GEN198108-198409

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-10030iKP6#197802-198409

61411PANEL, ROCKER, OUTER RH

main61401-10010iKP6#..3D..EUR¥16,300197802-198409

main61401-10010iKP60..RHD..3D..GEN¥16,300198005-198208

W/*ELR

main61411-10100iKP60,62..3D..GEN197802-198208

main61411-10110iKP6#..4D,5D¥16,300197802-198409

61412PANEL, ROCKER, OUTER LH

main61402-10010iKP60..RHD..3D..GEN¥16,300198005-198208

W/*ELR

main61402-10010iKP6#..3D..EUR¥16,300197802-198409

main61412-10100iKP60,62..3D..GEN197802-198208

main61412-10110iKP6#..4D,5D¥16,300197802-198409

61611PANEL, QUARTER, RH

main61601-10071iKP6#..3D¥40,900198005-198010

sub61601-10072¥41,000

sub84231-20060¥1,140

sub84232-10030

main61601-10072iKP6#..3D¥41,000198010-198107

sub61601-10550¥41,000

main61601-10100iKP6#..3D197802-198005

sub61601-10072¥41,000

sub77292-10030

sub77371-10020

sub84231-20060¥1,140

sub84232-10020

main61601-10550iKP6#..3D¥41,000198107-198208

main61601-10902iKP6#..5D¥35,200197802-198005

sub61601-10904¥35,300

sub77292-10030

sub77371-10020

main61601-10904iKP6#..5D¥35,300198005-198107

sub61601-10908¥35,300

main61601-10905iKP6#..4D198005-198208

main61601-10908iKP6#..5D¥35,300198107-198208

main61601-10911iKP6#..3D¥40,900198208-198409

main61601-10915iKP6#..5D..GEN¥35,300198208-198409

main61601-10916iKP6#..5D¥35,300198208-198409

*GIS

main61601-96900iKP6#..4D197810-198005

main61601-96901iKP6#..4D¥40,100198208-198409

61612PANEL, QUARTER, LH

main61602-10061iKP6#..3D¥40,900198005-198010

sub61602-10062¥41,000

sub84231-20060¥1,140

sub84232-10030

main61602-10062iKP6#..3D¥41,000198010-198107

sub61602-10550¥41,000

main61602-10090iKP6#..3D197802-198005

sub61602-10062¥41,000

sub84231-20060¥1,140

sub84232-10020

main61602-10550iKP6#..3D¥41,000198107-198208

main61602-10903iKP6#..5D¥35,800197802-198005

sub61602-10905¥35,800

main61602-10905iKP6#..5D¥35,800198005-198107

sub61602-10909¥35,800

main61602-10906iKP6#..4D¥40,100198005-198208

main61602-10909iKP6#..5D¥35,800198107-198208

main61602-10911iKP6#..3D¥40,900198208-198409

main61602-10915iKP6#..5D¥35,300198208-198409

main61602-10916iKP6#..5D¥35,300198208-198409

*GIS

main61602-96900iKP6#..4D¥40,000197810-198005

sub61602-10906¥40,100

main61602-96901iKP6#..4D198208-198409

61613AEXTENSION, QUARTER PANEL REAR, RH

main61625-10010iKP6#..SED197802-198208

61614AEXTENSION, QUARTER PANEL, REAR LH

main61626-10010iKP62..SDN197802-198208

61627RETAINER, QUARTER TRIM, LOWER

main61751-10060iKP6#..3D197802-198409

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-96440iKP6#..4D197810-198409

main61607-10900iKP6#..SED197802-198005

main61607-10901iKP60,62..SED..GEN¥26,100198005-198208

main61607-10902iKP61,62..SDN198005-198208

*GIS

main61607-10903iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN¥26,100198010-198208

*GIS

sub61607-10902

main61617-10900iKP6#..SED..GEN¥22,600198208-198409

sub61617-10902¥22,600

main61617-10902iKP6#..SED..RHD..GEN¥22,600198208-198409

*NZ

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-96440iKP6#..4D197810-198409

main61608-10900iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN¥26,100198005-198208

main61608-10901iKP61,62..SDN198005-198208

*GIS

main61608-10902iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN¥26,100198010-198208

*GIS

sub61608-10901

main61608-10908iKP6#..SED197802-198005

main61618-10900iKP6#..SED..GEN¥22,600198208-198409

sub61618-10902¥22,600

main61618-10902iKP6#..SED..RHD..GEN¥22,600198208-198409

*NZ

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-10900iKP6#..3D..DLX..GEN198208-198409

W/HINGE

main61703-10901iKP6#..RHD..3D..GEN198208-198409

*NZ,W/O HINGE

main61703-10901iKP6#..RHD..3D..GEN198208-198409

W/O HINGE

main61703-10904iKP6#..3D..(DLX,S)..EUR198208-198409

*NZ,W/HINGE

main61703-10904iKP6#..RHD..3D..DLX..GEN198208-198409

W/HINGE

main61703-10905iKP6#..3D..GEN198208-198409

W/O HINGE

main61703-10906iKP6#..5D198208-198409

main61731-10900iKP6#..3D¥18,100197802-198005

W/HINGE,W/O *PT

sub61731-10918

sub91651-40614¥160

main61731-10901iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG¥18,100197802-198005

W/HINGE,*PT

sub61731-10919¥18,500

sub91651-40614¥160

main61731-10902iKP6#..3D197802-198005

W/O HINGE,*PT

sub61731-10920

sub91651-40614¥160

main61731-10903iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG¥18,100197802-198005

W/O HINGE,W/*PT

sub61731-10921

sub91651-40614¥160

main61731-10904iKP6#..5D197802-198005

W/O *PT

main61731-10905iKP6#..5D197802-198005

W/*PT

main61731-10906iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE,W/O *PT

main61731-10907iKP60,62..3D..GEN198005-198208

W/*NLR,W/O HINGE,*PT

main61731-10908iKP60..RHD..3D..GEN¥16,300198005-198208

W/*ELR,W/O HINGE,*PT

sub61731-10907

main61731-10909iKP61,62..SDN198005-198208

W/O HINGE

main61731-10910iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE & *PT

main61731-10911iKP60,62..3D..GEN198005-198208

W/*NLR,*PT,W/O HINGE

main61731-10912iKP6#..3D..EUG198005-198208

W/*ELR,*PT,W/O HINGE

main61731-10913iKP60..RHD..3D..GEN¥16,300198005-198208

W/*ELR,HINGE,W/O *PT

sub61731-10906

main61731-10914iKP61,62..SDN198005-198208

W/HINGE

main61731-10915iKP60..RHD..3D..GEN198005-198208

W/*ELR,HINGE & *PT

main61731-10916iKP6#..5D198005-198208

W/O *PT

main61731-10917iKP6#..5D198005-198208

W/*PT

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-10900iKP6#..3D..DLX..GEN¥18,500198208-198409

W/HINGE

main61704-10901iKP6#..RHD..3D..GEN198208-198409

*NZ,W/O HINGE

main61704-10901iKP6#..3D..EUR198208-198409

W/O HINGE

main61704-10904iKP6#..RHD..3D..DLX..GEN198208-198409

*NZ,W/HINGE

main61704-10904iKP6#..RHD..3D..DLX..GEN198208-198409

W/HINGE

main61704-10905iKP6#..3D..GEN198208-198409

W/O HINGE

main61704-10906iKP6#..5D198208-198409

main61732-10900iKP6#..3D197802-198005

W/HINGE,W/O *PT

sub61732-10918¥18,500

sub91651-40614¥160

main61732-10901iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG¥18,100197802-198005

W/HINGE,*PT

sub61732-10919

sub91651-40614¥160

main61732-10902iKP6#..3D197802-198005

W/O HINGE,*PT

sub61732-10920

sub91651-40614¥160

main61732-10903iKP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG197802-198005

W/O HINGE,W/*PT

sub61732-10921

sub91651-40614¥160

main61732-10904iKP6#..5D197802-198005

W/O *PT

main61732-10905iKP6#..5D197802-198005

W/*PT

main61732-10906iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE,W/O *PT

main61732-10907iKP60,62..3D..GEN198005-198208

W/*NLR,W/O HINGE,*PT

main61732-10908iKP6#..3D..EUG198005-198208

W/*ELR,W/O HINGE,*PT

main61732-10909iKP61,62..SDN198005-198208

W/O HINGE

main61732-10910iKP60,62..3D..GEN198005-198208

W/*NLR,HINGE & *PT

main61732-10911iKP60,62..3D..GEN198005-198208

W/*NLR,*PT,W/O HINGE

main61732-10912iKP60..RHD..3D..GEN198005-198208

W/*ELR,*PT,W/O HINGE

main61732-10913iKP6#..3D..EUG198005-198208

W/*ELR,HINGE,W/O *PT

main61732-10914iKP61,62..SDN198005-198208

W/HINGE

main61732-10915iKP6#..3D..EUG198005-198208

W/*ELR,HINGE & *PT

sub61732-10910

main61732-10916iKP6#..5D198005-198208

W/O *PT

main61732-10917iKP6#..5D198005-198208

W/*PT

61715REINFORCEMENT, ROOF SIDE, INNER REAR RH

main61737-10020iKP6#..3D¥2,160197802-198208

sub61737-10021¥2,130

main61737-10021iKP6#..3D¥2,130198208-198409

sub61737-10900

main61737-10030iKP6#..5D197802-198208

main61737-10031iKP6#..5D198208-198409

61716REINFORCEMENT, ROOF SIDE, INNER REAR LH

main61738-10010iKP6#..3D¥2,160197802-198208

sub61738-10011¥2,130

main61738-10011iKP6#..3D¥2,130198208-198409

sub61738-10900

main61738-10020iKP6#..5D197802-198208

main61738-10021iKP6#..5D198208-198409

61745PATCH, BACK DOOR OPENING, LOWER RH

main61745-10010iKP6#..SED197802-198208

main61745-10011iKP6#..SED¥2,890198208-198409

61746PATCH, BACK DOOR OPENING, LOWER LH

main61746-10010iKP6#..SED197802-198208

main61746-10011iKP6#..SED198208-198409

61811PANEL, QUARTER INSIDE, FRONT RH

main61613-10010iKP6#..3D197802-198409

61812PANEL, QUARTER INSIDE, FRONT LH

main61614-10010iKP6#..3D197802-198409

64292CLAMP, JACK HANDLE

main64292-10020iKP6#..SED197802-197903

7601

9015960008

main90159-60008¥70

9018906008

main90189-06008¥180

9095001006

main90950-01006¥260

9095001030

main90950-01030¥210

9095001056

main90950-01056¥230

9095001065

main90950-01065¥280

9095001126

main90950-01126¥360

9165140610

main91651-40610¥160

44 parts on this diagram · 9 diagrams in section
