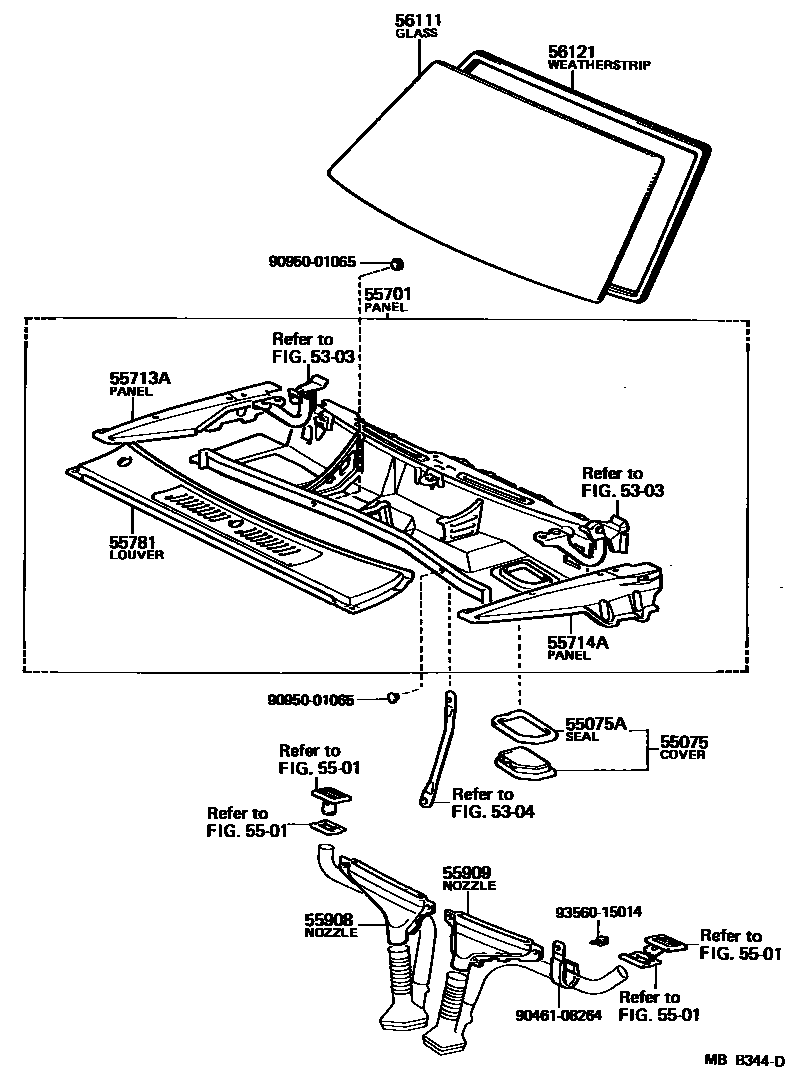

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

5303

5304

5501

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-10020iKP60,62..RHD..GEN197802-198208

W/O HEATER

main55077-10021iKP6#..RHD..GEN198208-198409

W/O HEATER

main55077-10030iKP60,62..LHD..GEN197802-198208

W/O HEATER

main55077-10031iKP6#..LHD..GEN198208-198409

W/O HEATER

55075ASEAL, HEATER AIR DUCT HOLE

main55794-10040iKP60,62..RHD..GEN197802-198208

W/O HEATER

main55794-10050iKP60,62..LHD..GEN197802-198208

W/O HEATER

55701PANEL SUB-ASSY, COWL

main55700-10010iKP6#..RHD197802-198005

main55700-10011iKP60,62..RHD..GEN198005-198208

sub55700-10040

main55700-10020iKP6#..LHD197802-198005

sub55700-10030

main55700-10021iKP60,62..LHD..GEN198005-198208

sub55700-10060

main55700-10022iKP6#..LHD..GEN198208-198312

W/O HEATER

sub55700-10032

main55700-10030iKP62..EUR;KP62..LHD..GEN197810-198005

W/COOLER

main55700-10031iKP62..LHD..GEN198005-198208

W/COOLER

sub55700-10060

main55700-10032iKP6#..LHD..GEN198208-198312

W/HEATER

sub55700-10061

main55700-10040iKP6#..RHD198005-198208

*GIS

main55700-10050iKP6#..LHD198005-198208

*GIS

sub55700-10060

main55700-10060iKP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

W/COOLER,*GIS

main55700-10061iKP6#..LHD198312-198409

main55700-10061iKP6#..LHD198208-198312

*GIS

main55700-10090iKP6#..RHD..GEN198208-198409

W/HEATER

main55700-10100iKP6#..RHD..GEN198208-198312

W/O HEATER

sub55700-10110

main55700-10110iKP6#..RHD198208-198409

*GIS

main55700-10110iKP6#..RHD..GEN198312-198409

W/O HEATER

55713APANEL, COWL TOP SIDE, RH

main55713-10030iKP6#197802-198005

sub55713-10031

main55713-10031iKP6#198005-198409

55714APANEL, COWL TOP SIDE, LH

main55714-10020iKP6#197802-198005

sub55714-10021

main55714-10021iKP6#198005-198409

55781LOUVER, COWL VENTILATOR

main55711-10050iKP6#..RHD197802-198005

main55711-10051iKP6#..RHD198005-198409

main55711-10060iKP6#..LHD197802-198005

main55711-10061iKP6#..LHD198005-198409

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-10030iKP6#197802-198208

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-10010iKP6#197802-198208

56111GLASS, WINDSHIELD

main56111-10140iKP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LH197802-198409

*TZT,T=5.0

sub56111-10171

main56111-10150iKP60;KP61,62..RHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LH197802-198409

*ZT,T=5.0

sub56111-10161

main56111-10160iKP6#197802-198005

*LAM,T=5.7

sub56111-10161

main56111-10161iKP6#198005-198409

*LAM,T=5.3

sub56111-10171

main56111-10170iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

*TL,T=5.7

sub56111-10171

main56111-10171iKP60;KP61,62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP61..LHD..5F..GEN;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D198005-198409

*TL,T=5.3

56121WEATHERSTRIP, WINDSHIELD

main56121-10100iKP6#197802-198409

W/MOULDING

main56121-10110iKP6#197802-198409

W/O MOULDING

9046108264

main90461-08264

9095001065

main90950-01065

9356015014

main93560-15014

16 parts on this diagram · 2 diagrams in section
