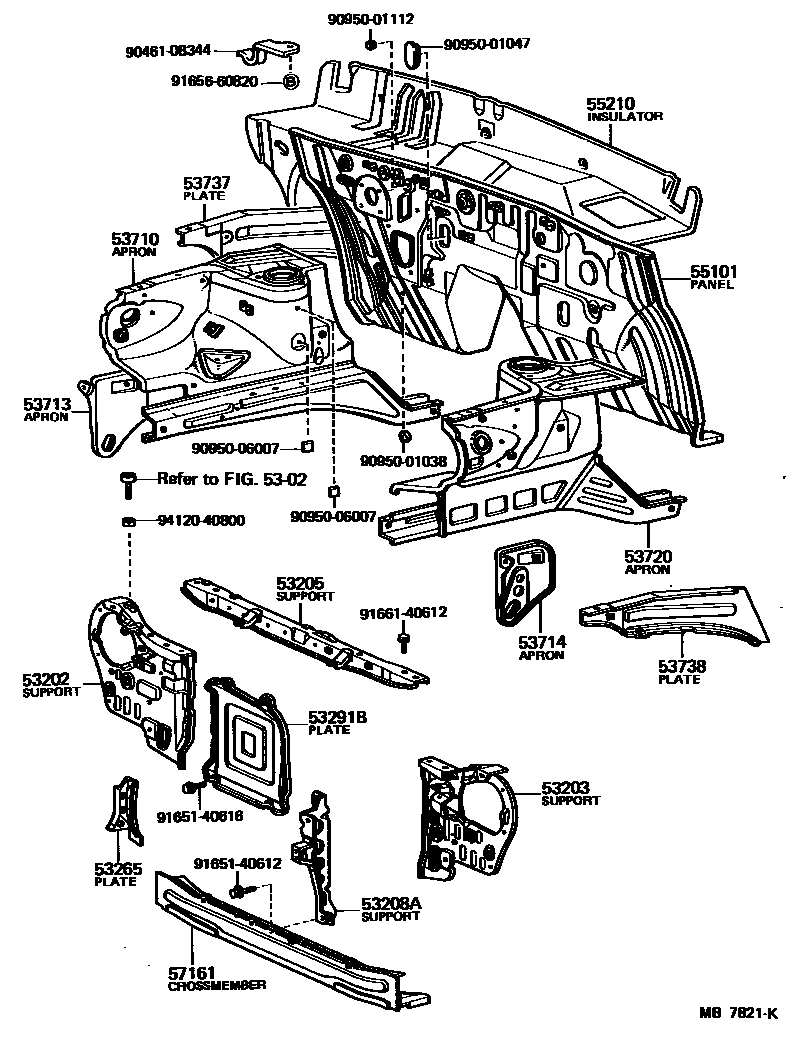

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5302

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10050iKP6#197802-198005

main53202-10051iKP6#198005-198108

sub53202-10052

main53202-10052iKP6#198108-198208

main53202-10053iKP6#198208-198409

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10062iKP61..EUG198108-198208

main53203-10063iKP61..EUG198208-198409

main53203-10070iKP6#197802-198005

main53203-10071iKP6#198005-198108

sub53203-10072

main53203-10072iKP61..SDN198108-198208

sub53203-96441

main53203-10073iKP60;KP61..GEN;KP61..SDZ198208-198306

sub53203-10082

main53203-10082iKP60;KP61..GEN;KP61..SDZ198306-198409

sub53203-10063

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-10040iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

main53205-10041iKP6#..RHD198005-198208

W/O HEADLAMP CLEANER

main53205-10042iKP6#..RHD198208-198409

W/O HEADLAMP CLEANER

main53205-10090iKP6#..LHD..EUR197802-198005

W/HEADLAMP CLEANER

main53205-10091iKP6#..LHD..EUR198005-198208

W/HEADLAMP CLEANER

sub53205-10100

main53205-10092iKP61..3D..SDZ;KP6#..SED..LHD..EUG198208-198409

W/HEADLAMP CLEANER

sub53205-10101

main53205-10100iKP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN198005-198208

W/O HEADLAMP CLEANER

main53205-10101iKP6#..LHD198208-198310

W/O HEADLAMP CLEANER

sub53205-10111

main53205-10111iKP6#..LHD198310-198409

W/O HEADLAMP CLEANER

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10010iKP6#197802-198005

main53208-10011iKP6#198005-198208

main53208-10012iKP6#198208-198409

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53265-10010iKP6#197802-198005

53291BPLATE, RADIATOR COVER

main53291-10010iKP6#197802-198208

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-10121iKP6#198005-198104

sub53701-10190

main53701-10130iKP6#197802-198005

sub53701-10140

main53701-10140iKP62..EUR;KP62..LHD..GEN197810-198005

W/COOLER

main53701-10141iKP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198104

W/COOLER

sub53701-10200

main53701-10190iKP6#198104-198108

sub53701-10220

main53701-10200iKP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198104-198108

W/COOLER

sub53701-10230

main53701-10220iKP6#198108-198208

sub53701-10230

main53701-10230iKP62..LHD;KP61..LHD..EUG198108-198208

W/COOLER

sub53701-10232

main53701-10231iKP6#198208-198409

53713APRON, FENDER SIDE, RH

main53707-10010iKP6#197802-198005

main53707-10011iKP6#198005-198208

sub53707-10012

main53713-10051iKP6#198208-198409

53714APRON, FENDER SIDE, LH

main53708-10010iKP6#197802-198005

main53708-10011iKP6#198005-198208

sub53708-10012

main53714-10051iKP6#198208-198409

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-10171iKP6#..RHD198005-198104

sub53702-10220

main53702-10180iKP6#197802-198005

main53702-10181iKP6#..LHD198005-198104

sub53702-10230

main53702-10220iKP6#..RHD198104-198108

sub53702-10230

main53702-10230iKP6#..LHD198104-198108

main53702-10240iKP60,62198108-198208

sub53702-10250

sub90950-01056

main53702-10250iKP61198108-198208

sub53702-10252

main53702-10251iKP6#198208-198409

main53702-10260iKP60,62..LHD198109-198208

main53702-10270iKP61..LHD198109-198208

sub53702-10250

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-10030iKP6#197802-198101

sub53737-10050

main53737-10040iKP6#198101-198104

main53737-10041iKP6#198104-198208

sub53737-10042

main53737-10042iKP6#198208-198409

main53737-10050iKP6#..SED198005-198101

sub53737-10040

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-10030iKP6#197802-198101

sub53738-10050

main53738-10040iKP6#198308-198409

main53738-10041iKP6#198104-198308

sub53738-10040

main53738-10050iKP6#198101-198104

sub53738-10040

main53738-10060iKP6#..SED198005-198101

55101PANEL SUB-ASSY, DASH

main55101-10190iKP6#..RHD197802-197905

main55101-10191iKP6#..RHD197905-198005

sub55101-10192

main55101-10192iKP6#..RHD198005-198108

main55101-10193iKP6#..RHD..MTM198108-198208

main55101-10200iKP6#..LHD197802-197905

main55101-10201iKP6#..LHD197905-198005

sub55101-10202

main55101-10202iKP6#..LHD198005-198108

main55101-10203iKP6#..LHD..MTM198108-198208

main55101-10270iKP61..RHD..3FC198108-198208

sub55101-10193

sub90950-01002

main55101-10280iKP61..LHD..3FC198108-198208

sub55101-10203

sub90950-01002

main55101-10320iKP6#..RHD198208-198409

main55101-10340iKP6#..LHD198208-198409

55210INSULATOR ASSY, DASH PANEL

main55210-10010iKP6#..RHD197802-198108

W/HEATER

sub55210-10090

main55210-10020iKP6#..LHD197802-198208

W/HEATER

main55210-10021iKP6#..LHD198208-198409

W/HEATER

main55210-10030iKP60,62..RHD..GEN197802-198208

W/O HEATER

main55210-10031iKP6#..RHD..GEN198208-198409

W/O HEATER

main55210-10040iKP60,62..LHD..GEN197802-198208

W/O HEATER

main55210-10041iKP6#..LHD..GEN198208-198409

W/O HEATER

main55210-10090iKP6#..RHD198108-198208

W/HEATER

main55210-10091iKP6#..RHD198208-198409

W/HEATER

57161CROSSMEMBER, FRONT

main57104-10040iKP6#197802-198005

sub57104-19015

main57104-10041iKP6#198005-198208

sub57104-10050

main57104-10042iKP6#..GEN198208-198409

sub57104-10051

main57104-10051iKP6#..EUR198208-198409

9046108344

main90461-08344

9095001038

main90950-01038

9095001047

main90950-01047

9095001112

main90950-01112

9095006007

main90950-06007

9165140612

main91651-40612

9165140616

main91651-40616

9165660820

main91656-60820

9166140612

main91661-40612

9412040800

main94120-40800

26 parts on this diagram · 2 diagrams in section
