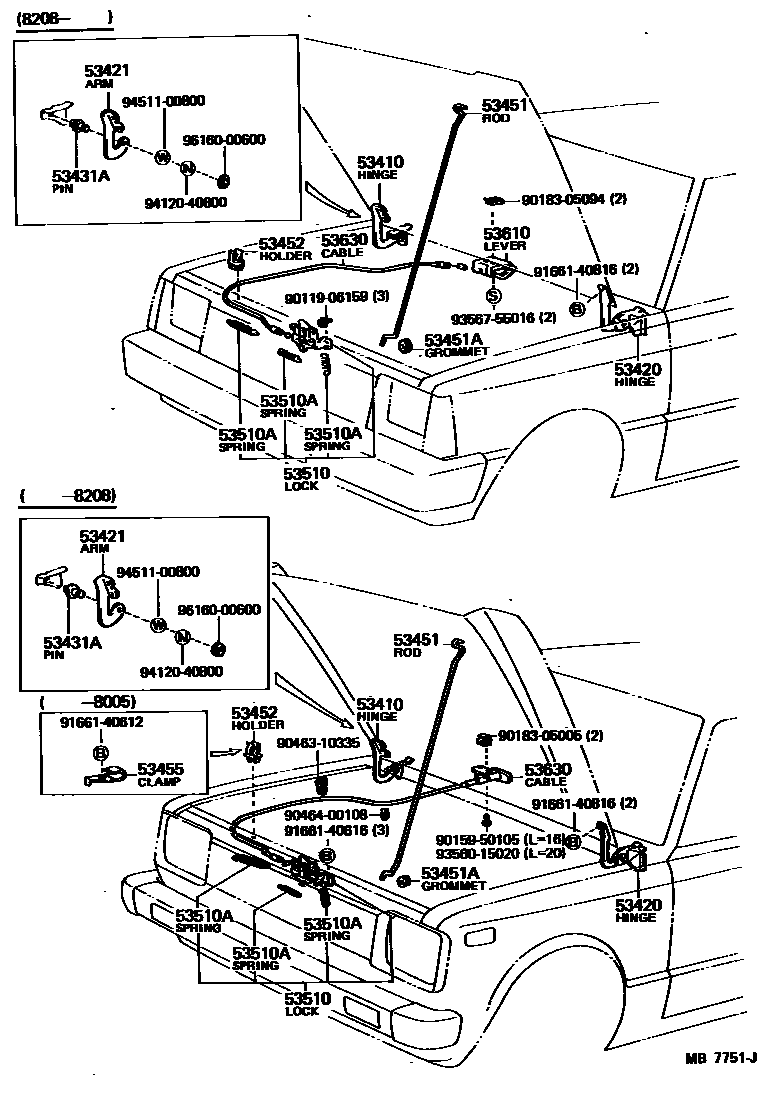

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53431APIN, HOOD HINGE
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53455CLAMP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
L=35,OD=9
WD=0.9,CW=21.25,L=35,OD=9
L=48,OD=8
L=54,OD=8
L=55,OD=14
L=60,OD=14
L=59,OD=14
L=64,OD=14
53610LEVER ASSY, HOOD LOCK RELEASE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906159
main90119-06159
9015950105
main90159-50105
9018305005
main90183-05005
9018305094
main90183-05094
9046310335
main90463-10335
9046400108
main90464-00108
9166140612
main91661-40612
9166140616
main91661-40616
9166140816
main91661-40816
9356015020
main93560-15020
9356755016
main93567-55016
9412040800
main94120-40800
9451100800
main94511-00800
9616000600
main96160-00600
26 parts on this diagram · 2 diagrams in section
