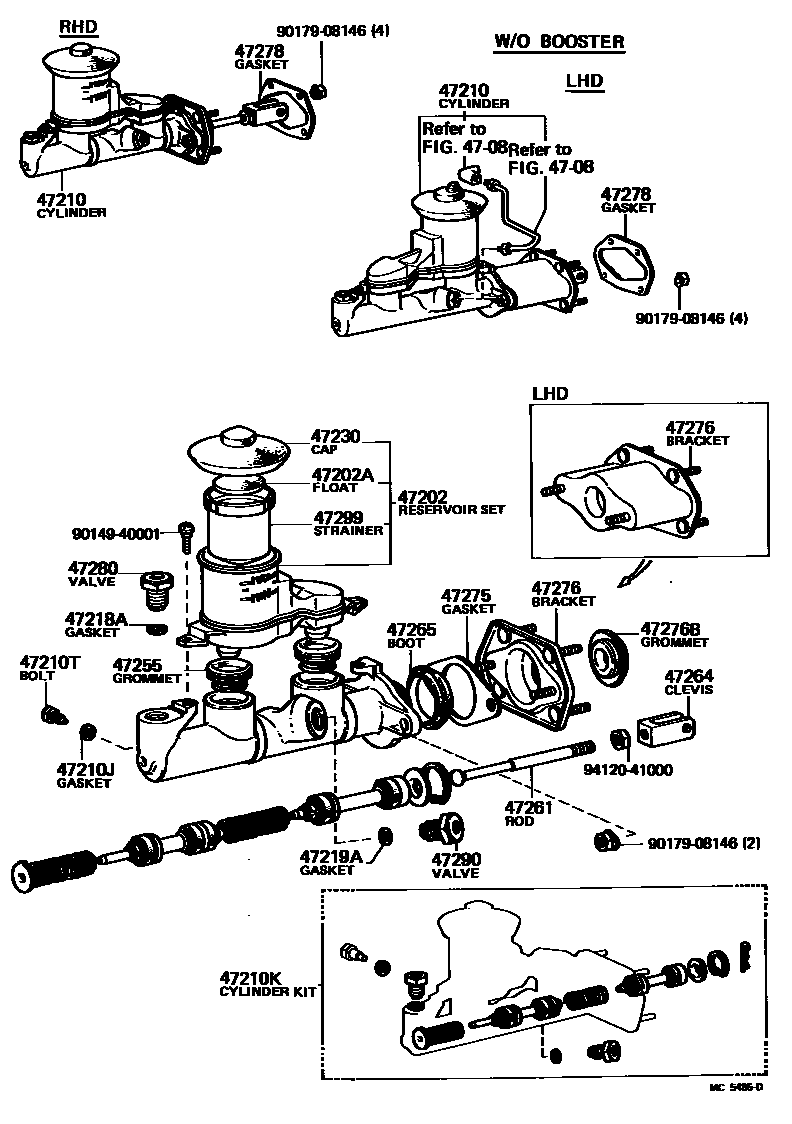

BRAKE MASTER CYLINDER

0001 1 0002 1

4708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-10010iKP6#..EUR197802-198208

main47202-10020iKP6#..GEN197802-198409

main47202-10030iKP62..SDN197909-198409

main47202-10040iKP6#..EUG198208-198409

SWITZERLAND SPEC

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-20010iKP6#..GEN197802-198409

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47200-10170iKP6#..LHD..GEN197802-198005

ID=17.46,W/O BOOSTER

main47200-10171iKP6#..LHD..GEN198005-198108

ID=17.46,W/O BOOSTER

main47200-10172iKP6#..LHD..GEN198108-198409

ID=17.46,W/O BOOSTER

main47200-10200iKP6#..RHD..GEN197802-198409

ID=17.46,W/O BOOSTER

sub47200-10360

sub31426-20010

sub47230-20040

main47201-10040iKP6#..EUR197802-198409

ID=19.05,W/BOOSTER

sub47207-10020

sub84460-32010

main47201-10040iKP61..SDZ198208-198409

ID=19.05,W/BOOSTER,SWITZERLAND

sub47207-10020

sub84460-32010

main47201-10050iKP6#..GEN197802-198409

ID=19.05,W/BOOSTER

sub47207-10020

sub31426-20010

sub47230-20040

main47201-10060iKP62..SDN197909-198409

ID=19.05,W/BOOSTER

sub47207-10020

sub84460-10010

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKP6#197802-198409

47210KCYLINDER KIT, BRAKE MASTER

main04493-10060iKP6#..GEN197802-198409

W/O BOOSTER

main04493-10070iKP6#197802-198005

W/BOOSTER

sub04493-10071

main04493-10080iKP6#198005-198409

W/BOOSTER

sub04493-10071

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iKP6#197802-198409

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iKP6#197802-198409

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iKP6#197802-198409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20040iKP6#..GEN197802-198409

main84460-10010iKP62..SDN197909-198409

main84460-12021iKP6#..EUR197802-198208

main84460-32010iKP61..SDZ198208-198409

SWITZERLAND SPEC

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iKP6#197802-198409

47261ROD, MASTER CYLINDER PUSH

main47261-10040iKP6#..RHD..GEN197802-198409

W/O BOOSTER

main47261-10060iKP6#..LHD..GEN197802-198409

W/O BOOSTER

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iKP6#197802-198409

47265BOOT, MASTER CYLINDER

main47265-20050iKP6#197802-198409

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iKP6#197802-198409

sub47275-26010

47276BRACKET, BRAKE MASTER CYLINDER

main47276-10010iKP6#..RHD..GEN197802-198409

W/O BOOSTER

main47276-10020iKP6#..LHD..GEN197802-198409

W/O BOOSTER

47276BGROMMET(FOR BRAKE MASTER CYLINDER BRACKET)

main90480-22004iKP6#..GEN197802-198409

W/O BOOSTER

47278GASKET, BRAKE MASTER CYLINDER BRACKET

main47275-10010iKP6#..GEN197802-198409

W/O BOOSTER

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iKP6#197802-198409

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iKP6#197802-198409

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-10010iKP6#197802-198409

9014940001

main90149-40001

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 2 diagrams in section
