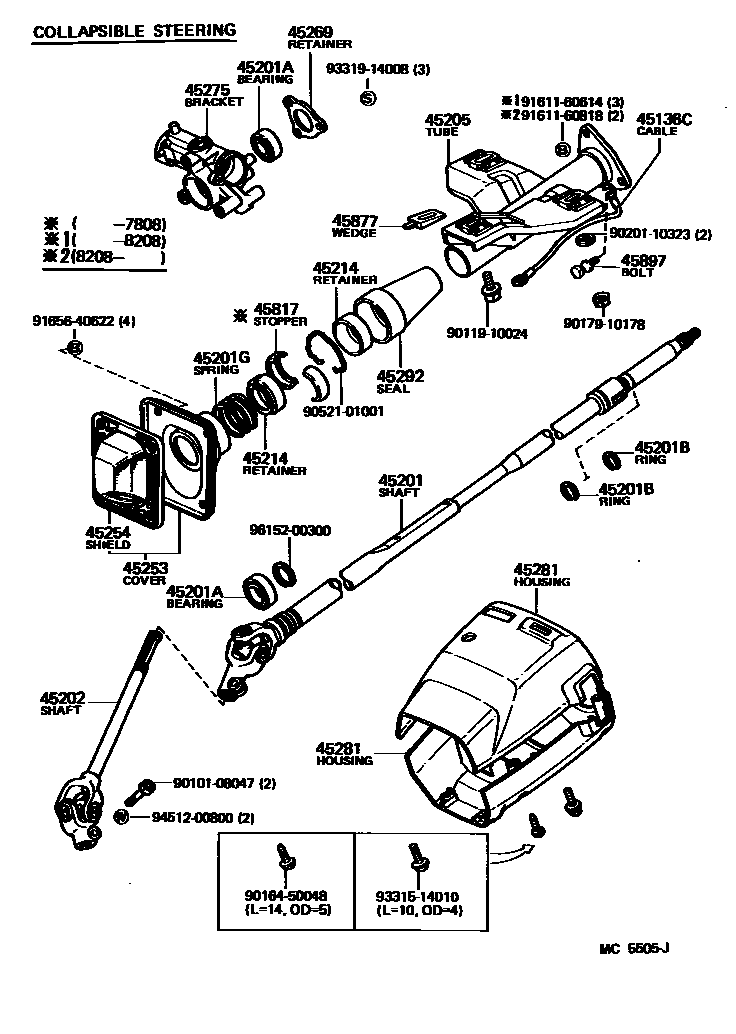

STEERING COLUMN & SHAFT

0001 1 0002 1 0005 1 0006 1

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07129iKP6#197802-198204

main90980-07204iKP60,61198204-198409

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-10020iKP6#197802-198208

COLLAPSIBLE STEERING

main45210-10030iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198208

RIGID STEERING

main45210-10040iKP6#198208-198308

COLLAPSIBLE STEERING

sub45210-10041

main45210-10041iKP6#198308-198409

COLLAPSIBLE STEERING

main45210-10050iKP6#198208-198308

RIGID STEERING

sub45210-10051

main45210-10051iKP6#198308-198409

RIGID STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iKP6#197802-198409

UPR

main90363-30007iKP6#197802-197808

LWR

main90363-30015iKP6#197808-198409

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iKP6#197802-198409

T=1.20,T=1.15-1.25

main90520-17196iKP6#197802-198409

T=1.35-1.45,T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-32003iKP6#197802-198409

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-10010iKP6#..RHD197802-198308

main45202-10011iKP6#..RHD198308-198409

main45202-10020iKP60..LHD197802-198308

sub45202-10030

main45202-10030iKP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..E197802-198308

main45202-10031iKP6#..LHD198308-198409

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10030iKP6#..RHD197802-198208

W/COLLAPSIBLE STEERING

main45205-10040iKP6#..LHD197802-198208

W/COLLAPSIBLE STEERING

main45205-10050iKP6#..RHD197802-198208

W/RIGID STEERING

main45205-10060iKP60..LHD;KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198208

W/RIGID STEERING

main45205-10070iKP6#..RHD198208-198409

W/COLLAPSIBLE STEERING

main45205-10080iKP6#..LHD198208-198409

W/COLLAPSIBLE STEERING

main45205-10090iKP6#..RHD198208-198409

W/RIGID STEERING

main45205-10100iKP6#..LHD198208-198409

W/RIGID STEERING

45214RETAINER, MAIN SHAFT SPRING

main45214-10010iKP6#197802-198409

45253COVER, STEERING COLUMN HOLE

main45025-10010iKP6#..RHD197802-198409

main45025-10020iKP6#..LHD197802-198409

45254SHIELD, STEERING COLUMN HOLE

main45254-10010iKP6#..RHD198005-198409

main45254-10011iKP6#..RHD197802-198005

main45254-10021iKP6#..LHD197802-198409

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iKP6#198007-198208

main45269-20010iKP6#197808-197903

sub45269-35010

main45269-35010iKP6#197802-198409

45275BRACKET, STEERING COLUMN, UPPER

main45275-10020iKP6#..RHD197802-198208

main45275-10030iKP6#..LHD197802-198208

main45280-10010iKP6#..RHD198208-198409

main45280-10020iKP6#..LHD198208-198409

45281HOUSING, STEERING COLUMN

main45286-10050-01iKP6#..LHD197802-198208

UPR,BLACK,BLACK,TRIM2#

sub45286-10050

main45286-10050-04iKP6#..LHD197802-198208

UPR,BLUE,BLUE,TRIM8#

sub45286-10050

main45286-10050-05iKP6#..LHD197802-198005

UPR,BEIGE,BEIGE,TRIM4#

sub45286-10050

main45286-10050-06iKP6#..LHD198005-198208

UPR,LIGHT BROWN,BROWN,TRIM4#

sub45286-10050

main45286-10060-01iKP6#..RHD197802-198208

UPR,BLACK,BLACK,TRIM2#

sub45286-10060

main45286-10060-04iKP6#..RHD197802-198208

UPR,BLUE,BLUE,TRIM8#

sub45286-10060

main45286-10060-05iKP6#..RHD197802-198005

UPR,BEIGE,BEIGE,TRIM4#

sub45286-10060

main45286-10060-06iKP6#..RHD198005-198208

UPR,LIGHT BROWN,BROWN,TRIM4#

sub45286-10060

main45286-10080-01iKP6#..LHD198208-198409

UPR,BLACK,BLACK,TRIM1#

sub45286-10080

main45286-10080-02iKP6#..LHD..(DLX,STD)198208-198409

UPR,DARK WINE,RED/MAROON,TRIM3#

sub45286-10080

main45286-10080-06iKP6#..LHD..(DLX,STD)198208-198409

UPR,BROWN,BROWN,TRIM4#

sub45286-10080

main45286-10090-01iKP6#..RHD198208-198409

UPR,BLACK,BLACK,TRIM1#

sub45286-10090

main45286-10090-02iKP6#..RHD198208-198409

UPR,DARK WINE,RED/MAROON,TRIM3#

sub45286-10090

main45286-10090-06iKP6#..RHD198208-198409

UPR,BROWN,BROWN,TRIM4#

sub45286-10090

main45287-10040-01iKP6#..RHD197802-198208

LWR,BLACK,BLACK,TRIM2#

sub45287-10040

main45287-10040-04iKP6#..RHD197802-198208

LWR,BLUE,BLUE,TRIM8#

sub45287-10040

main45287-10040-05iKP6#..RHD197802-198005

LWR,BEIGE,BEIGE,TRIM4#

sub45287-10040

main45287-10040-06iKP6#..RHD198005-198208

LWR,LIGHT BROWN,BROWN,TRIM4#

sub45287-10040

main45287-10050-01iKP6#..LHD197802-198208

LWR,BLACK,BLACK,TRIM2#

sub45287-10050

main45287-10050-04iKP6#..LHD197802-198208

LWR,BLUE,BLUE,TRIM8#

sub45287-10050

main45287-10050-05iKP6#..LHD197802-198005

LWR,BEIGE,BEIGE,TRIM4#

sub45287-10050

main45287-10050-06iKP6#..LHD198005-198208

LWR,LIGHT BROWN,BROWN,TRIM4#

sub45287-10050

main45287-10060-01iKP6#..RHD198208-198409

LWR,BLACK,BLACK,TRIM1#

sub45287-10060

main45287-10060-02iKP6#..RHD198208-198409

LWR,DARK WINE,RED/MAROON,TRIM3#

sub45287-10060

main45287-10060-06iKP6#..RHD198208-198409

LWR,BROWN,BROWN,TRIM4#

sub45287-10060

main45287-10070-01iKP6#..LHD198208-198409

LWR,BLACK,BLACK,TRIM1#

sub45287-10070

main45287-10070-02iKP6#..LHD..(DLX,STD)198208-198409

LWR,DARK WINE,RED/MAROON,TRIM3#

sub45287-10070

main45287-10070-06iKP6#..LHD..(DLX,STD)198208-198409

LWR,BROWN,BROWN,TRIM4#

sub45287-10070

45292SEAL, MAIN SHAFT LOWER DUST

main45292-10010iKP6#197802-198409

45817STOPPER, STEERING SHAFT THRUST

main45817-10011iKP6#197802-197808

sub90363-30015

45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)

main45877-12010iKP6#197802-198409

45897BOLT, STEERING LOCK SET

main45897-12020iKP6#198208-198409

9010108047

main90101-08047

9011910024

main90119-10024

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9052101001

main90521-01001

9161160614

main91611-60614

9161160818

main91611-60818

9165640622

main91656-40622

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

9615200300

main96152-00300

30 parts on this diagram · 4 diagrams in section
