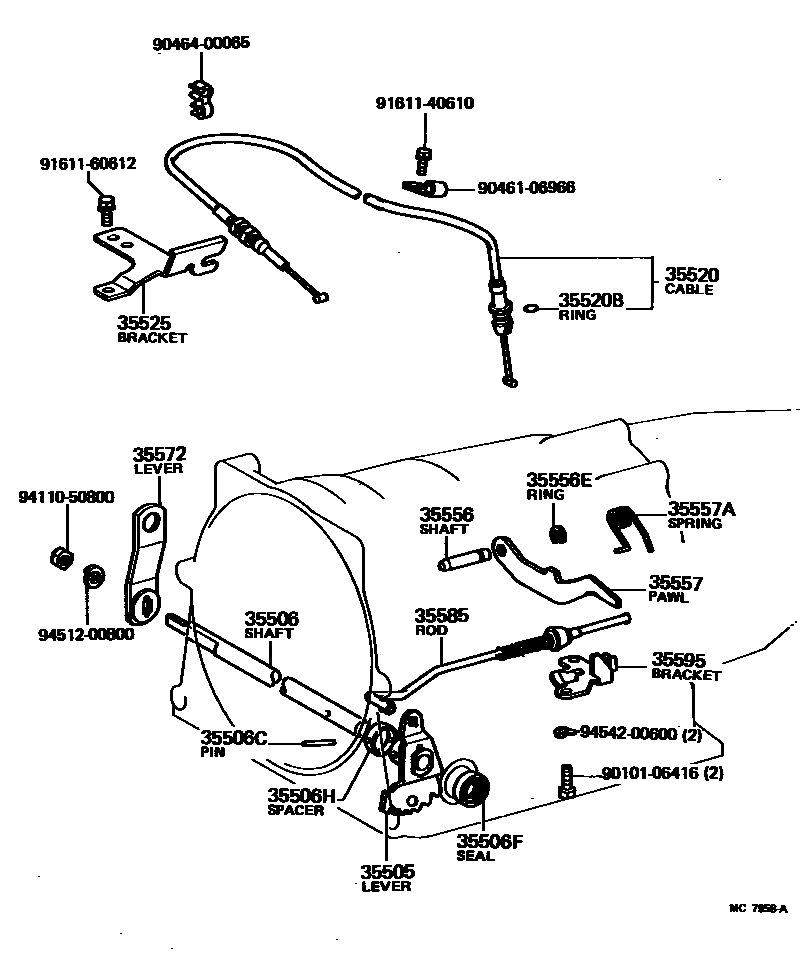

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iKP61..3FC198108-198208

main35505-22020iKP61..3FC198208-198308

main35505-22040iKP61..3FC198308-198409

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20021iKP61..3FC198108-198208

sub35561-40010

sub35505-22040

sub90254-04011

main35561-40010iKP61..3FC198208-198409

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iKP61..3FC198108-198208

main90254-04011iKP61..3FC198208-198409

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001iKP61..3FC198308-198409

sub90311-11003

main90311-11128iKP61..3FC198108-198308

sub90311-11001

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iKP61..3FC198108-198409

sub90560-20025

35520CABLE ASSY, THROTTLE

main35520-12071iKP61..3FC198108-198409

sub35520-12072

35520BRING, O(FOR THROTTLE CABLE)

main90301-09004iKP61..3FC198305-198409

main90301-09063iKP61..3FC198108-198305

sub90301-09004

35525BRACKET, THROTTLE CABLE

main35525-12060iKP61..3FC198108-198409

35556SHAFT, PARKING LOCK PAWL

main35556-22010iKP61..3FC198108-198409

sub35556-26010

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKP61..3FC198108-198409

35557PAWL, PARKING LOCK

main35557-35010iKP61..3FC198108-198409

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iKP61..3FC198108-198409

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-12030iKP61..3FC198108-198409

35585ROD, PARKING LOCK

main35501-22020iKP61..3FC198108-198409

35595BRACKET, PARKING LOCK PAWL

main35595-16010iKP61..3FC198108-198310

sub35595-22020

main35595-40010iKP61..3FC198310-198409

9010106416

main90101-06416

9046106966

main90461-06966

9046400065

main90464-00065

9161140610

main91611-40610

9161160612

main91611-60612

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

23 parts on this diagram · 1 diagram in section
