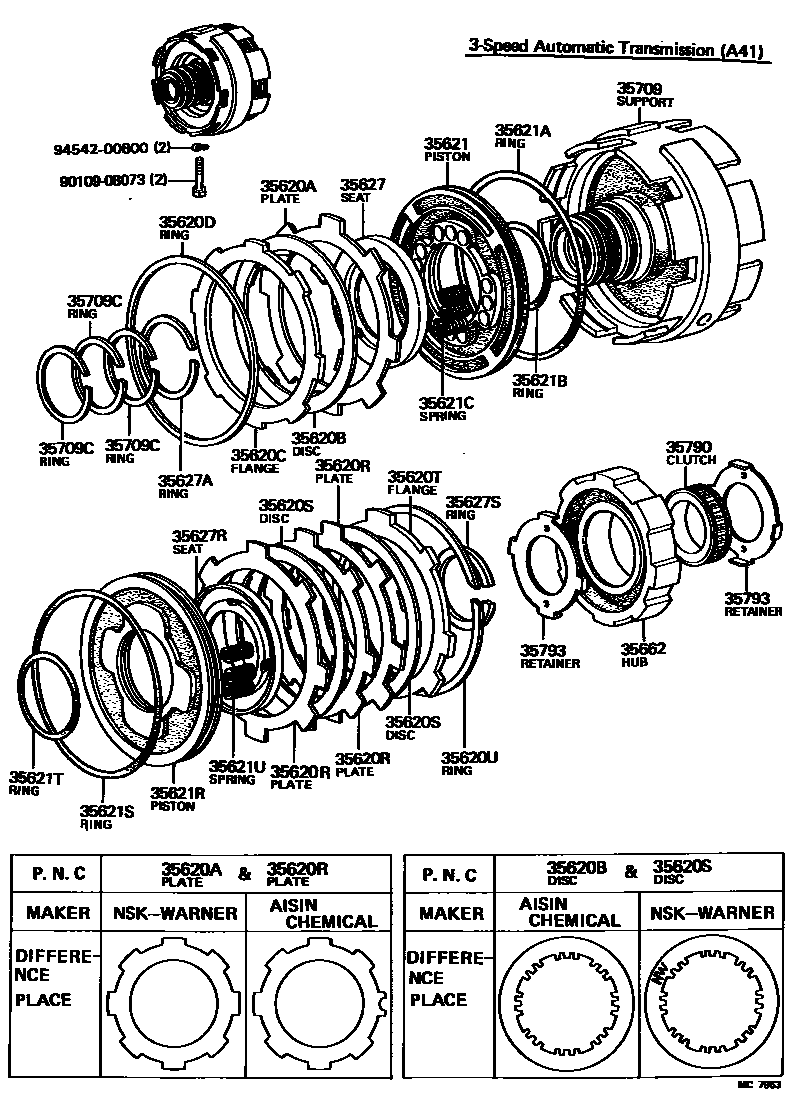

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35620APLATE, CLUTCH (FOR BRAKE)
NSK
35620BDISC, CLUTCH (FOR BRAKE)
sub35677-30030
35620CFLANGE, CLUTCH (FOR BRAKE)
sub35675-22140
35620DRING (FOR BRAKE)
35620RPLATE, CLUTCH (FOR REAR BRAKE)
NSK
35620TFLANGE, CLUTCH (FOR REAR BRAKE)
sub35675-22140
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35621CSPRING (FOR BRAKE PISTON RETURN)
35621RPISTON, BRAKE (FOR REAR BRAKE)
35621SRING (FOR REAR BRAKE PISTON OUTER)
sub90301-99107
35621TRING (FOR REAR BRAKE PISTON INNER)
35621USPRING (FOR REAR BRAKE PISTON RETURN)
35627SEAT, BRAKE RETURN SPRING
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)
35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
35662HUB, BRAKE
sub35662-30010
35709SUPPORT SUB-ASSY, CENTER
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35790CLUTCH ASSY, 1 WAY
35793RETAINER, 1 WAY CLUTCH
9010908073
main90109-08073
9454200800
main94542-00800
27 parts on this diagram · 1 diagram in section
