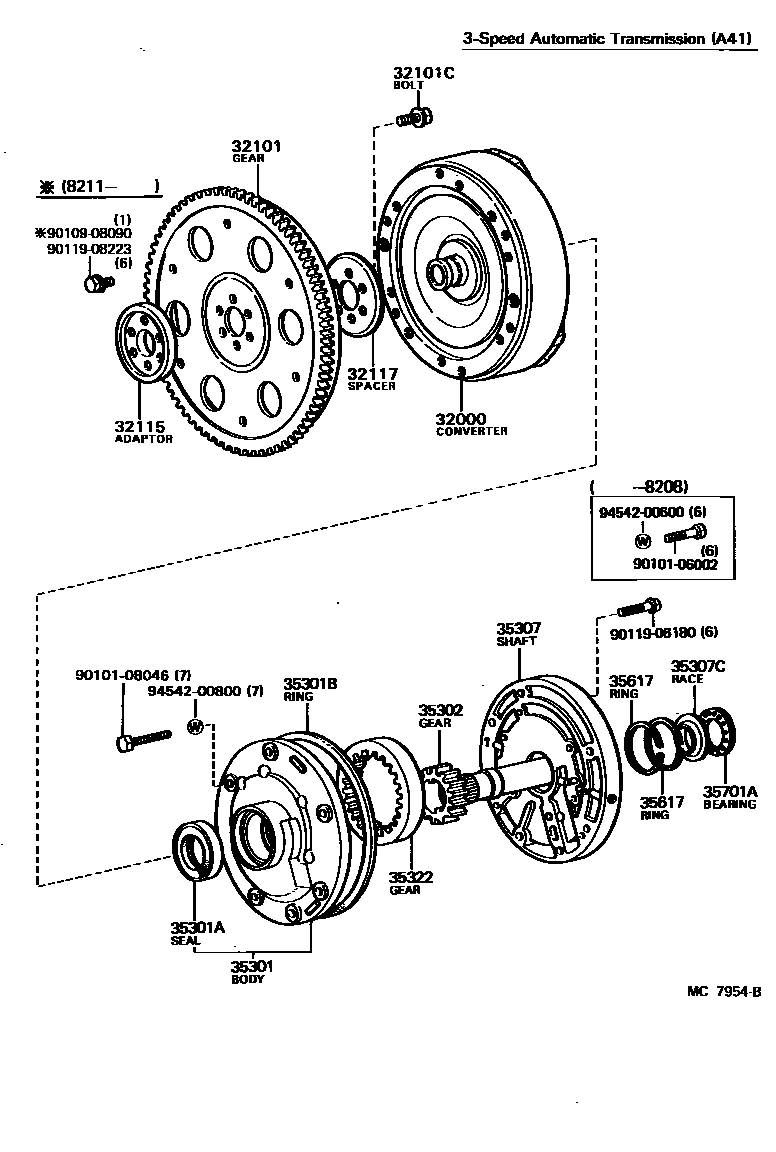

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12050iKP61..3FC198108-198405

sub32000-12051

main32000-12051iKP61..3FC198405-198409

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12040iKP61..3FC198108-198409

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iKP61..3FC198108-198409

*10-1.25PX18-13

32115ADAPTER, CRANKSHAFT

main32115-12010iKP61..3FC198108-198409

32117SPACER, DRIVE PLATE, REAR

main32117-12020iKP61..3FC198108-198409

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iKP61..3FC198108-198409

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iKP61..3FC198311-198409

main90311-38129iKP61..3FC198108-198311

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iKP61..3FC198108-198409

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iKP61..3FC198108-198409

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-12011iKP61..3FC198108-198409

sub35370-12012

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iKP61..3FC198108-198409

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iKP61..3FC198108-198409

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-22011iKP61..3FC198108-198409

sub35617-32010

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iKP61..3FC198108-198409

9010106002

main90101-06002

9010108046

main90101-08046

9010908090

main90109-08090

9011906180

main90119-06180

9011908223

main90119-08223

9454200600

main94542-00600

9454200800

main94542-00800

21 parts on this diagram · 1 diagram in section
