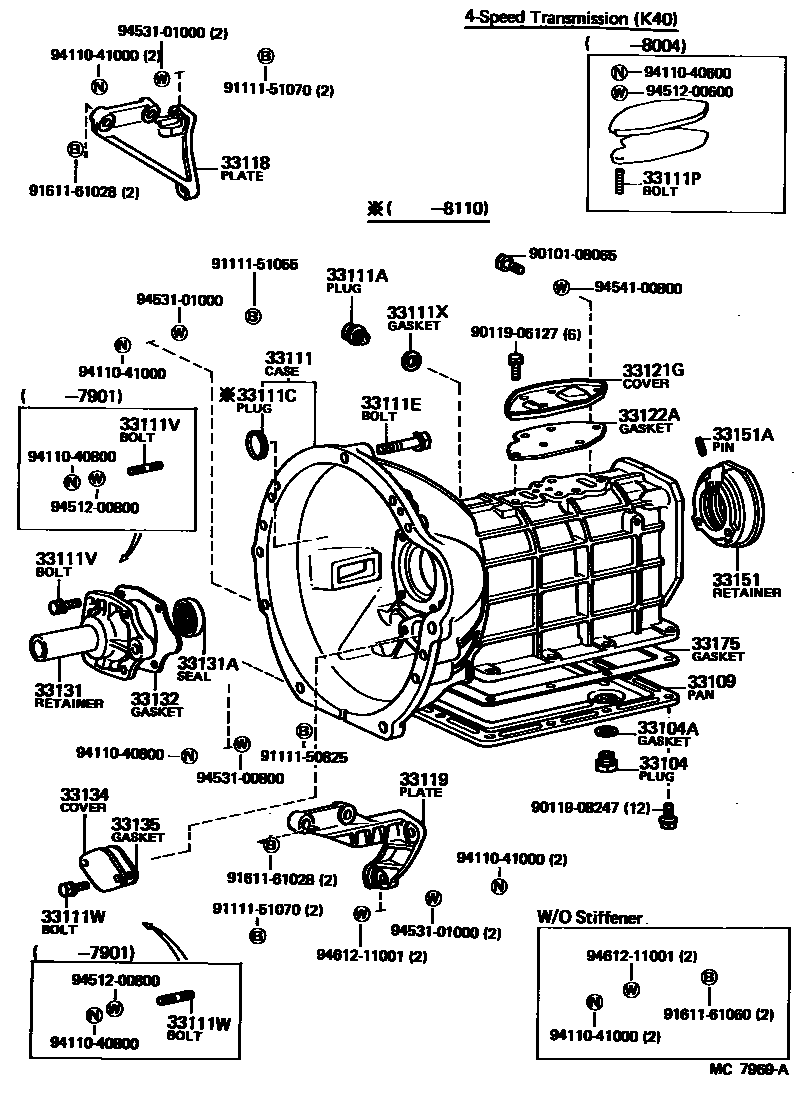

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33109PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)
33111PBOLT, STUD(FOR TRANSMISSION CASE COVER SETTING)
33111VBOLT(FOR FRONT BEARING RETAINER SETTING)
33111WBOLT(FOR COUNTERSHAFT COVER SETTING)
33111XGASKET, TRANSMISSION CASE PLUG
33118PLATE, STIFFENER, RH(MTM)
W/AIR CONDITIONING
33119PLATE, STIFFENER, LH(MTM)
33121GCOVER, MANUAL TRANSMISSION CASE
33122AGASKET, MANUAL TRANSMISSION CASE COVER
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
T=0.5
T=0.3
33134COVER, TRANSMISSION COUNTERSHAFT
33135GASKET, COUNTERSHAFT COVER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)
33175GASKET, MANUAL TRANSMISSION OIL PAN
9010108065
9011906127
9011908247
9111150825
9111151055
9111151070
9161161028
9161161060
9411040600
9411040800
9411041000
9451200600
9451200800
9453100800
9453101000
9454100800
9461211001
40 parts on this diagram · 2 diagrams in section
