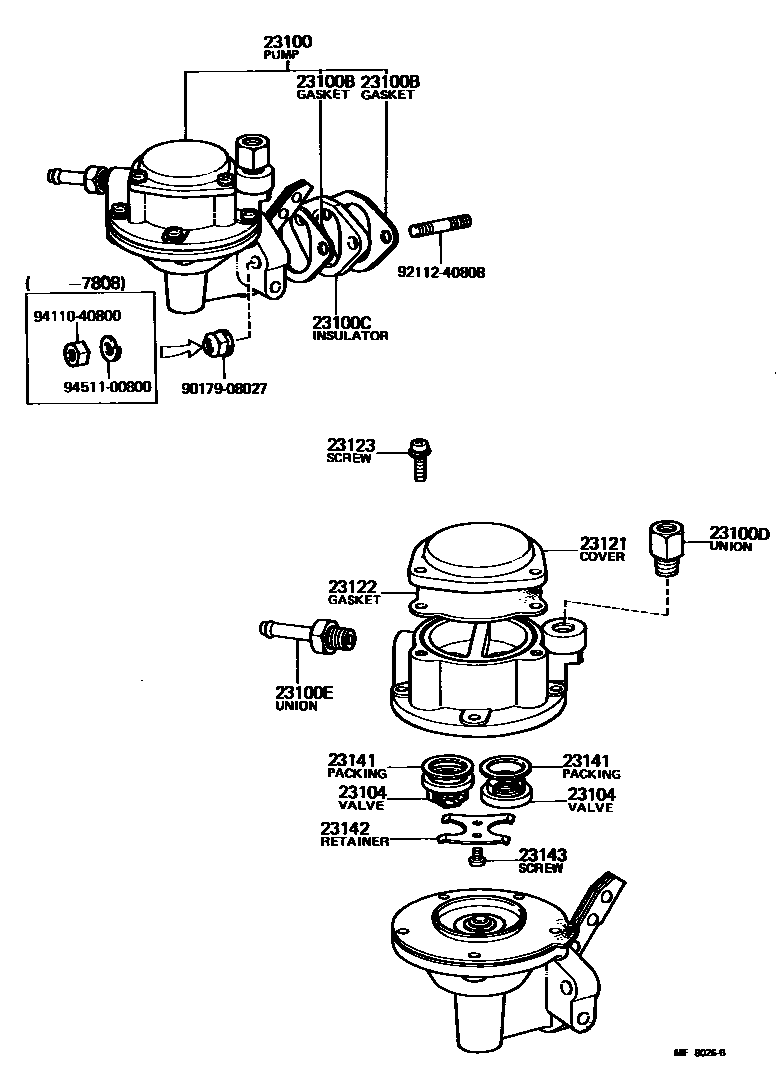

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-19125i2K,3K#..KP6#197911-198108

sub23100-19126

main23100-19126i2K,3KH,4K#..KP6#198108-198304

sub23100-19215

main23100-19215i2K,4K#..KP6#198304-198409

sub23100-13091

main23100-29085i2K,3K#..KP6#197802-197911

sub23100-29086

23100BGASKET, FUEL PUMP

main90923-05006i2K,3K#,4K#..KP6#197802-198409

sub90923-05021

23100CINSULATOR, FUEL PUMP

main90923-06003i2K,3K#,4K#..KP6#197802-198409

sub90923-06015

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-24010i2K,3K#..KP6#197802-197911

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51244i2K,3K#..KP6#197802-197911

23104VALVE SUB-ASSY

main23104-40010i2K,3K#..KP6#197802-197911

23121COVER, FUEL PUMP

main23121-24010i2K,3K#..KP6#197802-197911

23122GASKET, FUEL PUMP COVER

main23122-24010i2K,3K#..KP6#197802-197911

23123SCREW, COVER SET, NO.1

main23123-33011i2K,3K#..KP6#197802-197911

23141PACKING, VALVE

main23141-60010i2K,3K#..KP6#197802-197911

23142RETAINER, VALVE

main23142-30020i2K,3K#..KP6#197802-197911

23143SCREW, VALVE RETAINER SET

main23143-60021i2K,3K#..KP6#197802-197911

9017908027

main90179-08027

9211240808

main92112-40808

9411040800

main94110-40800

9451100800

main94511-00800

16 parts on this diagram · 2 diagrams in section
