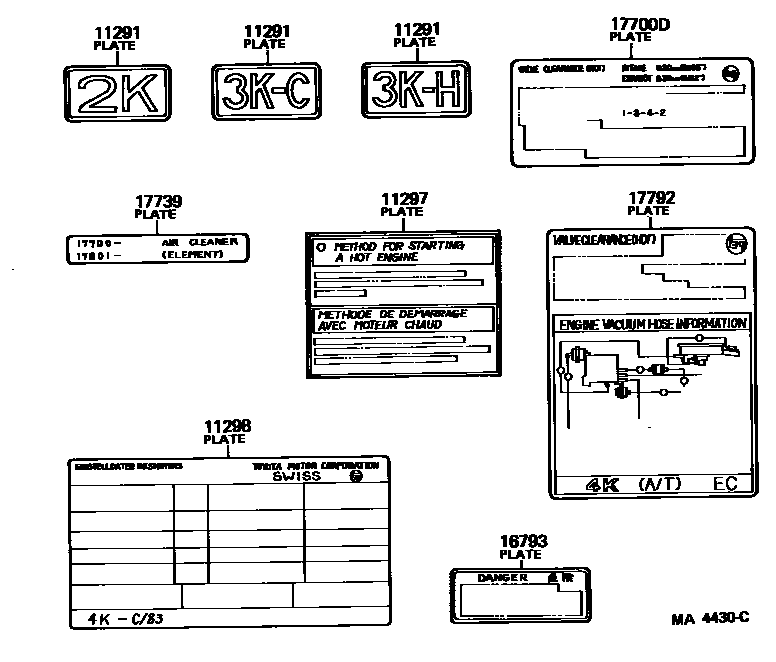

CAUTION PLATE & NAME PLATE (ENGINE)

11291PLATE, ENGINE NAME

main11291-12010i2K..KP60197802-198409

2K

main11291-13030i4KC..KP61198108-198409

4K-C

main11291-13050i4K..KP61198108-198409

4K

main11291-24040i3KH..KP62197810-198208

3K-H

main11291-24080i3KC..KP62197807-198108

3K-C

11297PLATE, ENGINE CAUTION, NO.3

main11297-13020i2K,3K#..KP60,62198001-198208

11298PLATE, EMISSION CONTROL INFORMATION

main11298-13100i4KC..KP61198108-198208

main11298-13140i4KC..KP61..3D198208-198408

sub11298-13141

main11298-13141i4KC..KP61..3D198408-198409

main11298-13150i4KC..KP61..4D,5D198208-198310

SWITZERLAND SPEC

sub11298-13151

main11298-13151i4KC..KP61..3D198310-198409

SWITZERLAND SPEC

main11298-24010i3KC..KP62197807-198005

sub11298-24012

main11298-24012i3KC..KP62198005-198108

16793PLATE, FAN CAUTION

main16793-13010i2K,4K#..KP6#198208-198409

17700DPLATE, ENGINE CAUTION

main11293-13081i2K,3K#..KP6#198101-198108

main11293-13082i2K,3KH,4K..KP6#..MTM198108-198208

main11293-13160i2K..KP60;4K..KP61..GEN;4K..KP61..MTM..EUG198208-198311

sub11293-13161

main11293-13161i2K..KP60;4K..KP61..GEN;4K..KP61..MTM..EUG198311-198409

main11293-24110i2K,3KC..KP6#197802-197809

sub11293-24111

main11293-24111i2K,3K#..KP6#197809-198101

sub11293-13081

17739PLATE, AIR CLEANER PART NUMBER

main17739-24010i2K..KP60..RHD..EUG197802-198008

ENGLAND SPEC

main17739-24030i3KH..KP62..RHD..EUG197810-198008

ENGLAND SPEC

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-13230i4K..KP61..3FC..EUG198108-198409

main17792-13240i4KC..KP61198108-198208

main17792-13290i4KC..KP61198208-198409

7 parts on this diagram · 1 diagram in section
