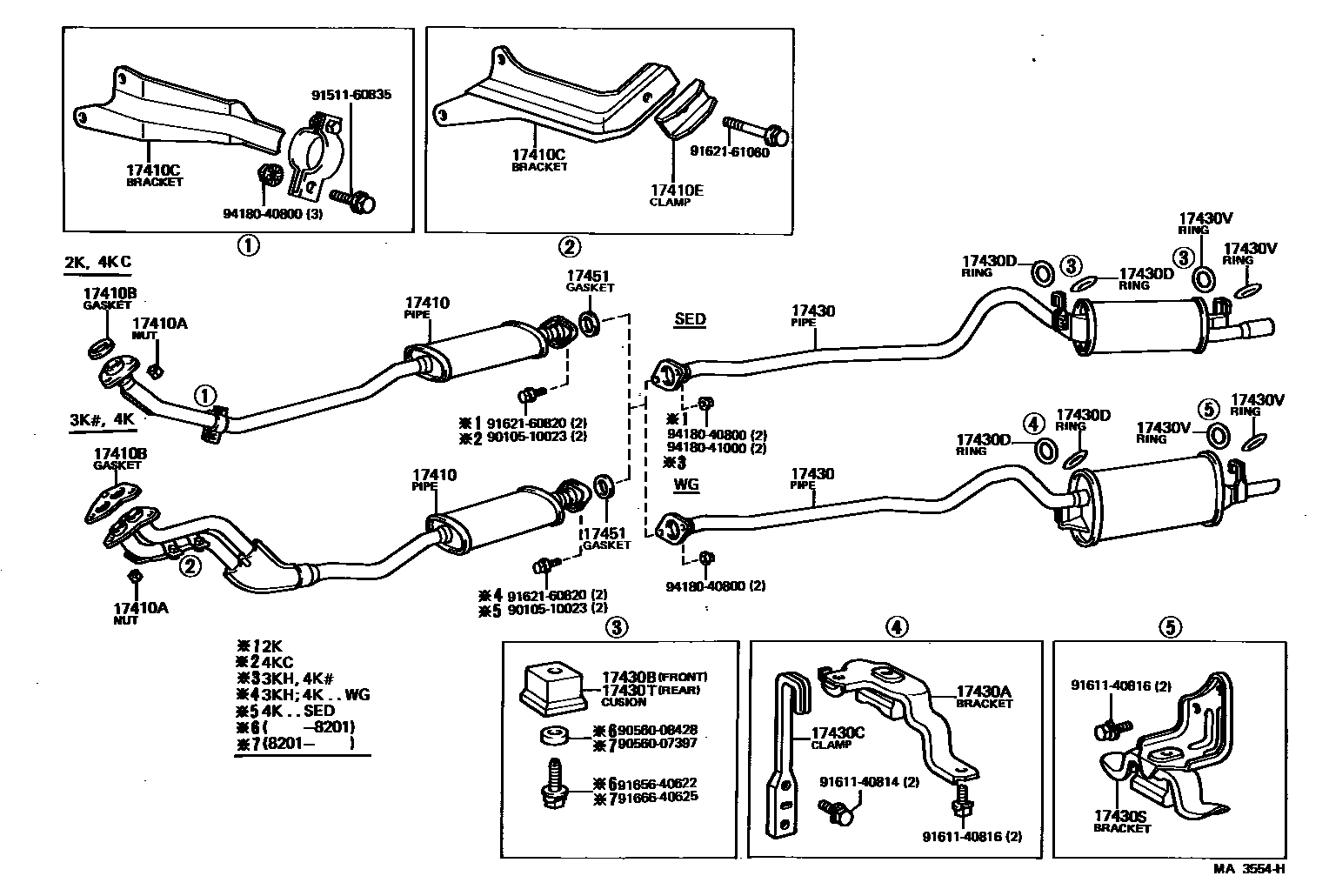

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-12030i2K..KP60..GEN197802-198409

main17410-12040i2K..KP60..EUG197802-198409

main17410-13160i4K..KP61..SED198108-198409

main17410-13180i4K..KP61..4D198108-198409

main17410-13190i4KC..KP61198108-198409

main17410-24200i3KH..KP62..RHD197810-198004

main17410-24210i3KH..KP62197807-198208

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i2K,3K#,4K#..KP6#197802-198404

main90179-10070i2K,4K#..KP6#198404-198409

17410BGASKET, EXHAUST PIPE

main17451-22010i3K#,4K..KP61,62197807-198409

sub17451-13010

main90917-06020i2K,4KC..KP60,61197802-198409

sub90917-06044

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-12010i2K..KP60197802-198409

main17571-13110i4KC..KP61198108-198409

main17571-24110i3KH..KP62..RHD197810-198004

main17571-24120i3KH,4K..KP61,62197807-198409

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04034i3K#,4K..KP61,62197807-198409

17430PIPE ASSY, EXHAUST, TAIL

main17430-12070i2K,3KH..KP6#..SED..GEN197802-198005

sub17430-12081

main17430-12080i2K,3KH..KP6#..SED..EUG197802-198005

sub17430-12081

main17430-12081i2K,3KH..KP6#..SED..EUG197905-198005

main17430-12090i2K,3KH..KP60,62..SED..GEN198005-198409

sub17430-12100

main17430-12100i2K,3K#..KP60,62..SED..EUR198005-198409

main17430-13150i4K#..KP61..SED..EUR198108-198409

main17430-13210i4K..KP61..SED..GEN198208-198409

sub17430-13150

main17430-13220i4KC..KP61..4D198208-198409

main17430-24320i2K,3KH,4K..KP6#..4D..GEN197810-198409

sub17430-24330

main17430-24330i2K,4K..KP60,61..4D..EUG197810-198409

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-24050i2K,3KH,4K#..KP6#..4D197810-198409

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-13010i2K,3K#,4K#..KP6#..SED197802-198201

sub17591-13011

sub90119-06014

sub90560-07397

main17591-13011i2K,3KH,4K#..KP6#..SED198201-198409

17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)

main17561-24120i2K,3KH,4K#..KP6#..4D197810-198409

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207i2K,3K#..KP60,62197802-198409

main90301-36002i4K#..KP61..SED198108-198409

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17507-24050i2K,3KH,4K#..KP6#..4D197810-198409

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-13010i2K,3K#,4K#..KP6#..SED197802-198201

sub17591-13011

sub90119-06014

sub90560-07397

main17591-13011i2K,3KH,4K#..KP6#..SED198201-198409

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i4K#..KP61..4D197802-198409

main90301-36002i4K#..KP61..SED198108-198409

17451GASKET, EXHAUST PIPE

main90917-06004i4K#..KP61..SED198108-198409

sub90917-06039

main90917-06006i2K,3K#..KP60,62197802-198409

sub90917-06037

9010510023

main90105-10023

9056007397

main90560-07397

9056008428

main90560-08428

9151160835

main91511-60835

9161140814

main91611-40814

9161140816

main91611-40816

9162160820

main91621-60820

9162161060

main91621-61060

9165640622

main91656-40622

9166640625

main91666-40625

9418040800

main94180-40800

9418041000

main94180-41000

26 parts on this diagram · 1 diagram in section
