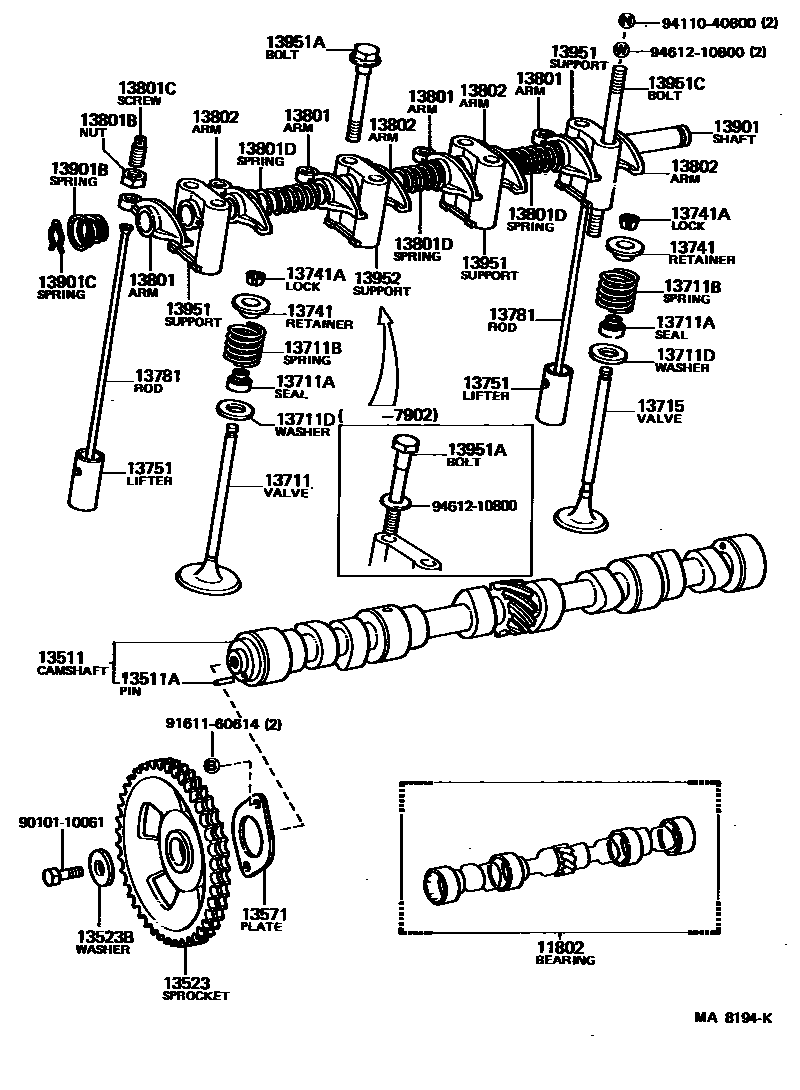

CAMSHAFT & VALVE

11802BEARING SET, CAMSHAFT

main11802-13020i2K,3KH,4K#..KP6#198206-198409

STD

sub11802-13030

main11802-22010i2K,3K#,4K#..KP6#197802-198206

STD

sub11802-13020

main11803-13020i2K,3KH,4K#..KP6#198206-198409

U/S 0.125

sub11803-13030

main11803-22010i2K,3K#,4K#..KP6#197802-198206

U/S 0.125

sub11803-13020

main11804-13020i2K,3KH,4K#..KP6#198206-198409

U/S 0.250

sub11804-13030

main11804-22010i2K,3K#,4K#..KP6#197802-198206

U/S 0.250

sub11804-13020

13511CAMSHAFT

main13501-13010i2K,3K#,4K#..KP6#197802-198409

sub13501-13011

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2K,3K#,4K#..KP6#197802-198409

L=15,OD=5

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-13030i2K,3KH,4K#..KP6#198108-198409

N=36

main13523-22010i2K,3K#..KP6#197802-198108

N=36

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10489i2K,3K#,4K#..KP6#197802-198409

13571PLATE, CAMSHAFT THRUST

main13571-13010i2K,3K#,4K#..KP6#197802-198409

13711VALVE, INTAKE

main13711-22011i2K..KP60197802-198409

main13711-24011i3K#,4K#..KP61,62197807-198409

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02023i2K,3K#..KP6#197802-198102

main90913-02056i2K,3K#,4K#..KP6#198102-198111

sub90913-02057

main90913-02057i2K,3KH,4K#..KP6#198111-198409

sub90913-02094

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42293i2K,3K#,4K#..KP6#197802-198409

WD=4.2,CW=6.5

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002i2K,3K#,4K#..KP6#197802-198409

13715VALVE, EXHAUST

main13715-22011i2K..KP60197802-198205

main13715-22012i2K..KP60198205-198409

main13715-24012i3K#,4K#..KP61,62197807-198205

main13715-24013i3KH,4K#..KP61,62198205-198409

13741RETAINER, VALVE SPRING

main13741-24020i2K,3K#,4K#..KP6#197802-198409

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i2K,3K#,4K#..KP6#197802-198409

13751LIFTER, VALVE

main13751-22013i2K,3K#,4K#..KP6#197802-198203

STD

sub13751-22014

main13751-22014i2K,3KH,4K#..KP6#198203-198409

STD

main13755-22013i2K,3K#,4K#..KP6#197802-198203

O/S 0.05

sub13755-22014

main13755-22014i2K,3KH,4K#..KP6#198203-198409

O/S 0.05

13781ROD, VALVE PUSH

main13781-13010i4K..KP61..GEN198108-198409

sub13781-13020

main13781-13040i4K..KP61..EUG198108-198409

main13781-22020i2K..KP60197802-198409

main13781-24021i3K#..KP62197807-198208

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-22011i2K,3K#,4K#..KP6#197802-198409

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08005i2K,3K#,4K#..KP6#197902-198409

main90170-08094i2K,3K#..KP6#197802-197902

sub90170-08005

13801CSCREW, VALVE ADJUSTING

main90913-05013i2K,3K#,4K#..KP6#197802-198202

sub90913-05020

main90913-05020i2K,3KH,4K#..KP6#198202-198409

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-11008i2K,3K#,4K#..KP6#197902-198208

sub90501-14064

main90501-12008i2K,3K#..KP6#197802-197902

sub90501-14064

main90501-14064i2K,4K#..KP6#198208-198409

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-22011i2K,3K#,4K#..KP6#197802-198409

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-22010i2K,3K#..KP6#197802-197902

sub13901-22011

main13901-22011i2K,3K#,4K#..KP6#197902-198409

13901BSPRING, CONICAL(FOR VALVE ROCKER SHAFT)

main90502-14022i2K,3K#,4K#..KP6#197802-198409

13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)

main90524-13009i2K,3K#,4K#..KP6#197802-198409

13951SUPPORT, VALVE ROCKER, NO.1

main13951-24010i2K,3K#..KP6#197802-197902

sub13951-24H00

main13951-24012i2K,3K#,4K#..KP6#197902-198409

sub13952-24012

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028i2K,3K#,4K#..KP6#197902-198409

main90910-01011i2K,3K#..KP6#197802-197902

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90116-08082i2K,3K#,4K#..KP6#197903-198409

L=100,S=10&54

main90116-08127i2K,3K#..KP6#197802-197903

L=96,S=10&50

13952SUPPORT, VALVE ROCKER, NO.2

main13952-24010i2K,3K#..KP6#197802-197902

sub13952-24H00

main13952-24012i2K,3K#,4K#..KP6#197902-198409

9010110061

main90101-10061

9161160614

main91611-60614

9411040800

main94110-40800

9461210800

main94612-10800

31 parts on this diagram · 1 diagram in section
