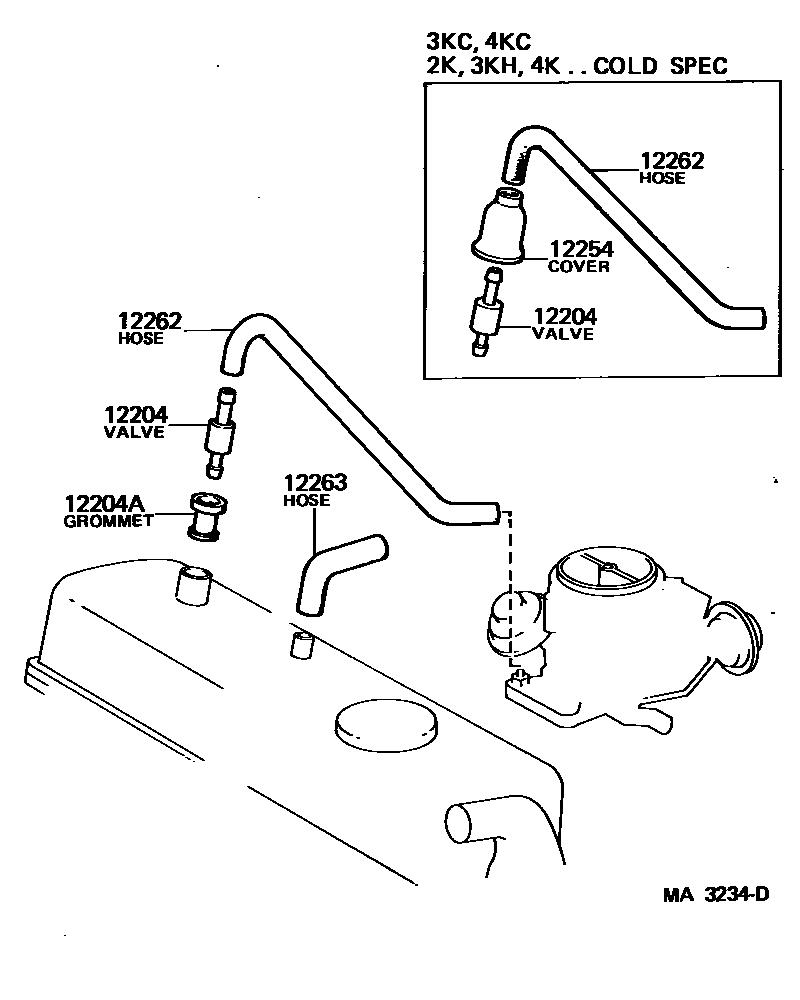

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-13020i2K,3K#..KP6#197810-197903

sub12204-13021

main12204-13030i2K,3K#,4K#..KP6#198004-198208

main12204-13060i2K,4K#..KP6#198208-198409

sub12204-13090

main12204-24011i2K,3KC..KP6#197802-198004

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-16003i2K,3K#,4K#..KP6#197802-198409

12254COVER, VENTILATION VALVE

main12236-24010i3KC..KP62197807-198208

main12236-24010i2K,3KH..KP6#..LHD..EUG197802-198409

COLD SPEC

main12236-24010i4KC..KP61..3D198208-198409

SWEDEN SPEC

12262HOSE, VENTILATION, NO.2

main12261-13030i2K,3KH,4K#..KP6#198108-198409

main12261-24021i2K,3K#..KP6#197802-198108

12263HOSE, VENTILATION, NO.3

main90910-05130i2K,3K#,4K#..KP6#197802-198409

5 parts on this diagram · 1 diagram in section
