TIMING GEAR COVER & REAR END PLATE

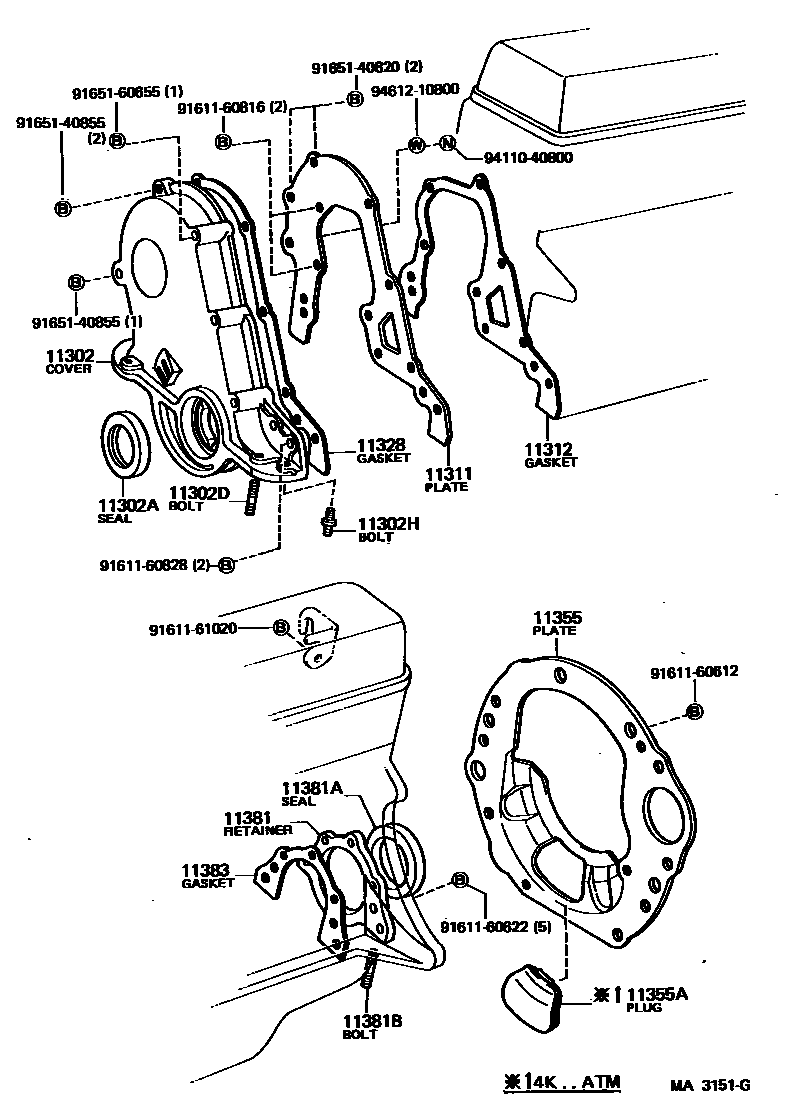

Parts diagram
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
main11321-13010i197802-197903
sub11321-13030
main11321-13030i197903-198108
sub11321-13040
main11321-13040i198108-198303
sub11321-13041
sub90311-38022
main11321-13041i198303-198409
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
main90311-38013i197802-198205
HTC 38.5 58 11
main90311-38022i198205-198409
HTC 38.5 58 8.5
sub90311-38053
11302DBOLT, STUD(FOR TIMING GEAR COVER)
main90116-06012i197807-198409
L=26,S=12&12
main92132-60614i197802-197807
L=26,S=12&12
11302HBOLT, STUD(FOR TIMING GEAR COVER)
main90116-06006i197802-198409
L=26.4,S=12&12
11311PLATE, FRONT END
main11311-13010i197802-198409
11312GASKET, FRONT END PLATE
main11312-13010i197802-198105
sub11312-13011
main11312-13011i198105-198409
sub11312-13040
11328GASKET, TIMING GEAR OR CHAIN COVER
main11328-13010i197802-198105
sub11328-13011
main11328-13011i198105-198409
sub11328-13030
11355PLATE, REAR END
main11355-13010i197802-198102
sub11355-13011
main11355-13011i198102-198409
sub11355-13012
main11355-24042i198108-198409
sub11355-24043
11355APLUG, HOLE(FOR REAR END PLATE)
main90950-01343i198108-198409
11381RETAINER, ENGINE REAR OIL SEAL
main11381-13010i197802-198303
main11381-13011i198303-198409
11381ASEAL, ENGINE REAR OIL
main90311-70001i197802-198205
HTC 70 92 12
sub90311-70004
main90311-70004i198205-198409
HTC 70 92 8.5
sub90311-70007
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
main90116-06035i197802-198409
L=23,S=9&12
11383GASKET, ENGINE REAR OIL SEAL RETAINER
main11383-13010i197802-198409
9161160612
main91611-60612
9161160622
main91611-60622
9161160816
main91611-60816
9161160828
main91611-60828
9161161020
main91611-61020
9165140820
main91651-40820
9165140855
main91651-40855
9165160655
main91651-60655
9411040800
main94110-40800
9461210800
main94612-10800

23 parts on this diagram · 1 diagram in section
