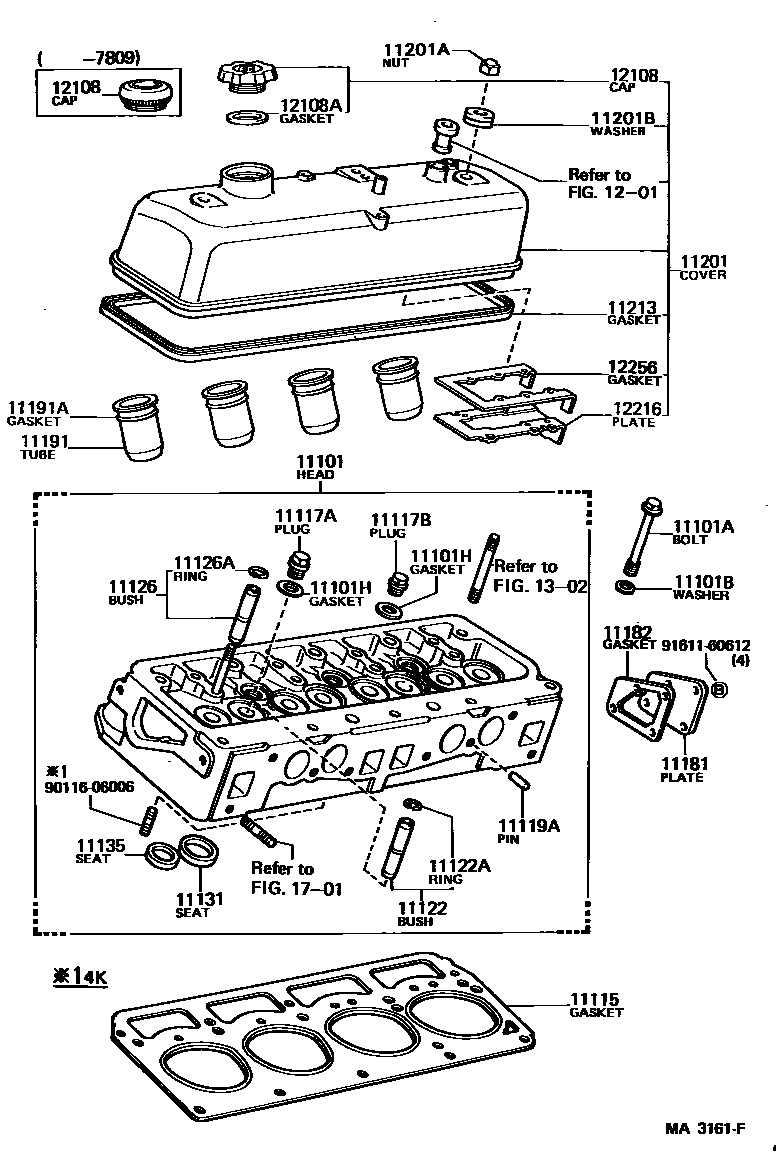

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
OD=21,ID=15
OD=25,ID=18
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11119APIN, STRAIGHT, NO.1
L=18,OD=8,L=18,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11181PLATE, CYLINDER HEAD, REAR
sub11181-13020
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-13020
11191TUBE, SPARK PLUG
11191AGASKET(FOR SPARK PLUG TUBE)
sub90430-31003
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
12216PLATE, VENTILATION BAFFLE
12256GASKET, VENTILATION BAFFLE
1302
1701
9011606006
main90116-06006
9161160612
main91611-60612
31 parts on this diagram · 2 diagrams in section
