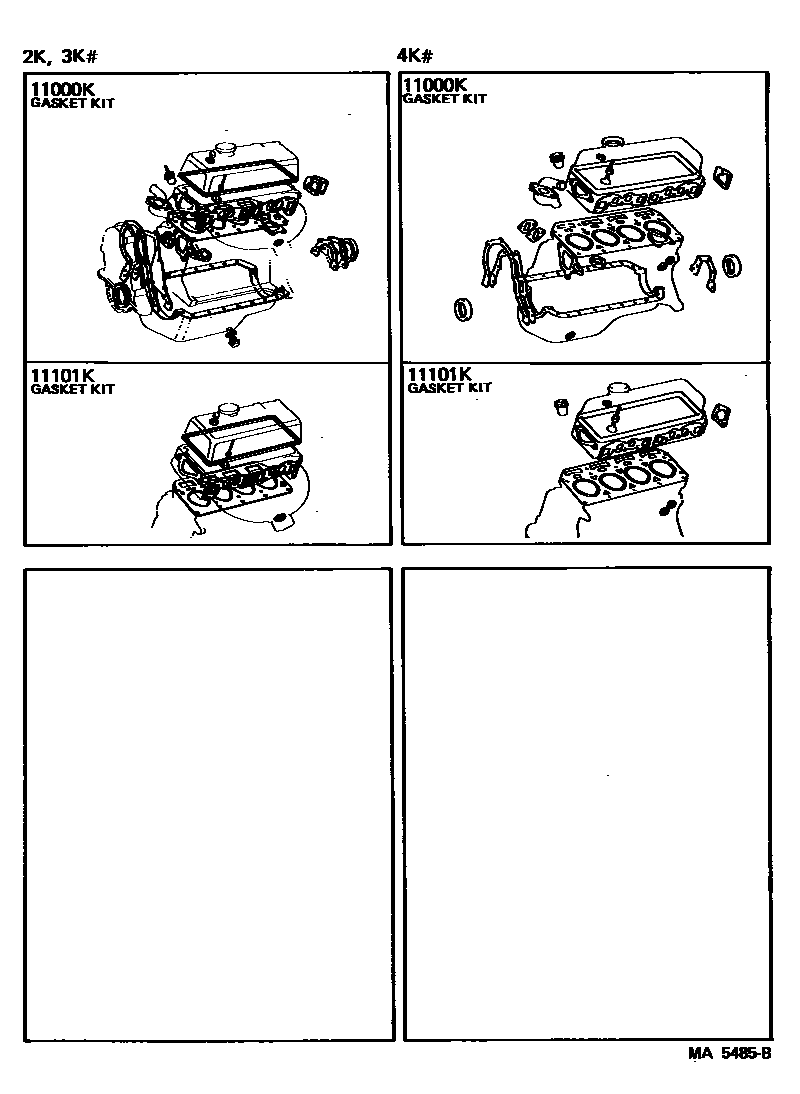

ENGINE OVERHAUL GASKET KIT

11000KGASKET KIT, ENGINE OVERHAUL

main04111-12019i2K..KP60197802-198108

sub04111-12030

main04111-12030i2K..KP60198108-198409

sub04111-12031

main04111-13030i4K#..KP61198108-198211

sub04111-13031

main04111-13031i4K#..KP61198211-198308

sub04111-13034

main04111-13032i4K#..KP61198308-198409

sub04111-13033

main04111-24044i3K#..KP62197807-198108

sub04111-24046

main04111-24060i3KH..KP62198108-198208

sub04111-24061

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-12013i2K..KP60197802-198108

sub04112-12020

main04112-12020i2K..KP60198108-198409

sub04112-12021

main04112-13011i3KH,4K#..KP61,62198108-198211

sub04112-13012

main04112-13012i4K#..KP61198211-198409

sub04112-13013

main04112-24042i3K#..KP62197807-197902

sub04112-24043

main04112-24043i3K#..KP62197902-198101

sub04112-24044

main04112-24044i3K#..KP62198101-198102

sub04112-24045

main04112-24045i3K#..KP62198102-198108

sub04112-13011

2 parts on this diagram · 1 diagram in section
