MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
NEW CALEDONIA SPEC&ENTRY PACKAGE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
NEW CALEDONIA SPEC&ENTRY PACKAGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87915COVER, OUTER MIRROR, RH
BLACK,040 ,062 ,089 ,219 ,3U5
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
8791BBSTAY, OUTER MIRROR, RH
87931OUTER MIRROR, RH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
BLACK,040 ,089 ,1L5 ,219 ,3U5 ,6X9
87946RETRACTOR, OUTER MIRROR, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
BLIND SPOT MONITOR-WITH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
8794BBSTAY, OUTER MIRROR, LH
87961MIRROR OUTER, LH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87966RETRACTOR, OUTER MIRROR, LH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
9006701004
main90067-01004
9016360024
main90163-60024

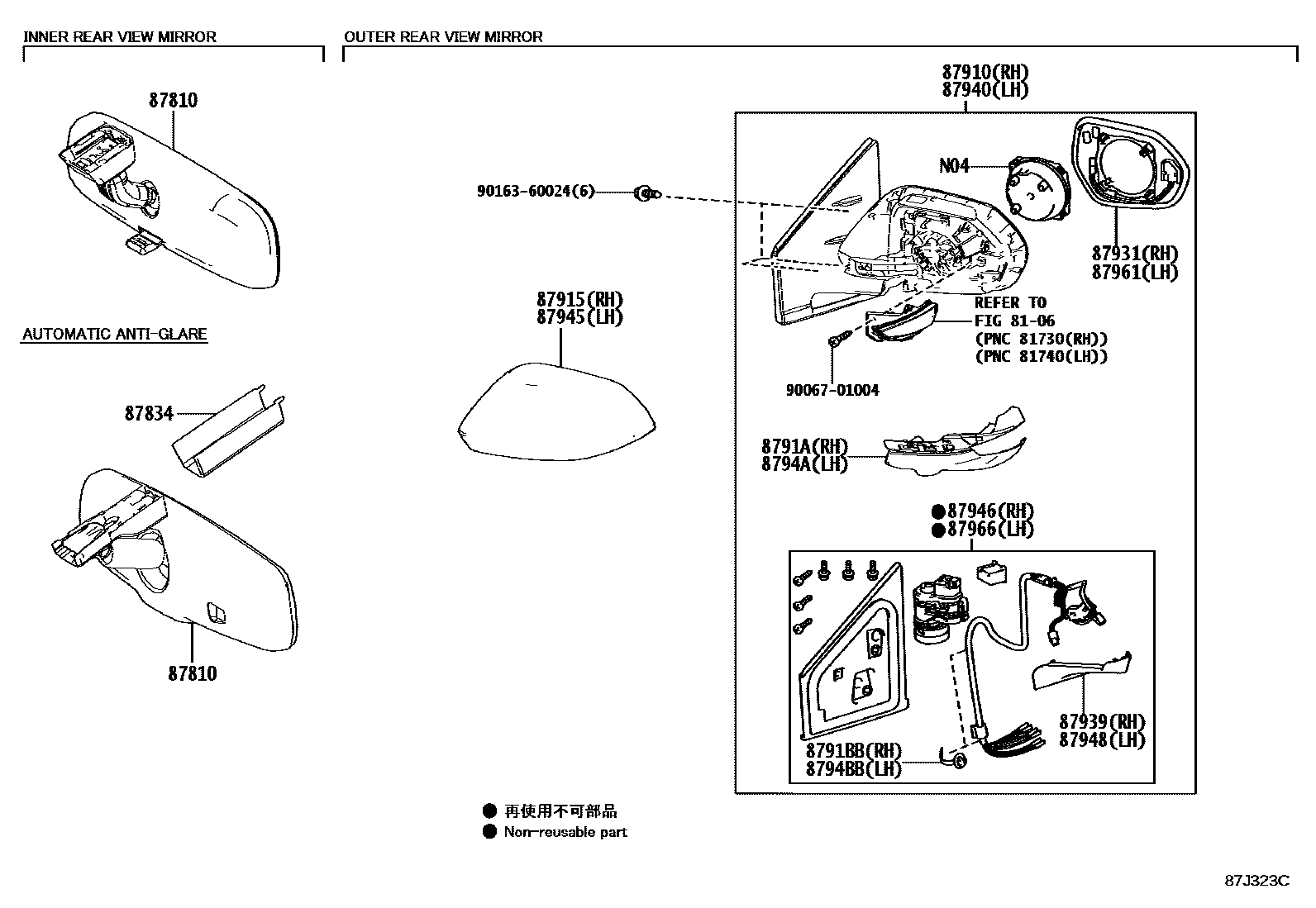

19 parts on this diagram · 1 diagram in section
