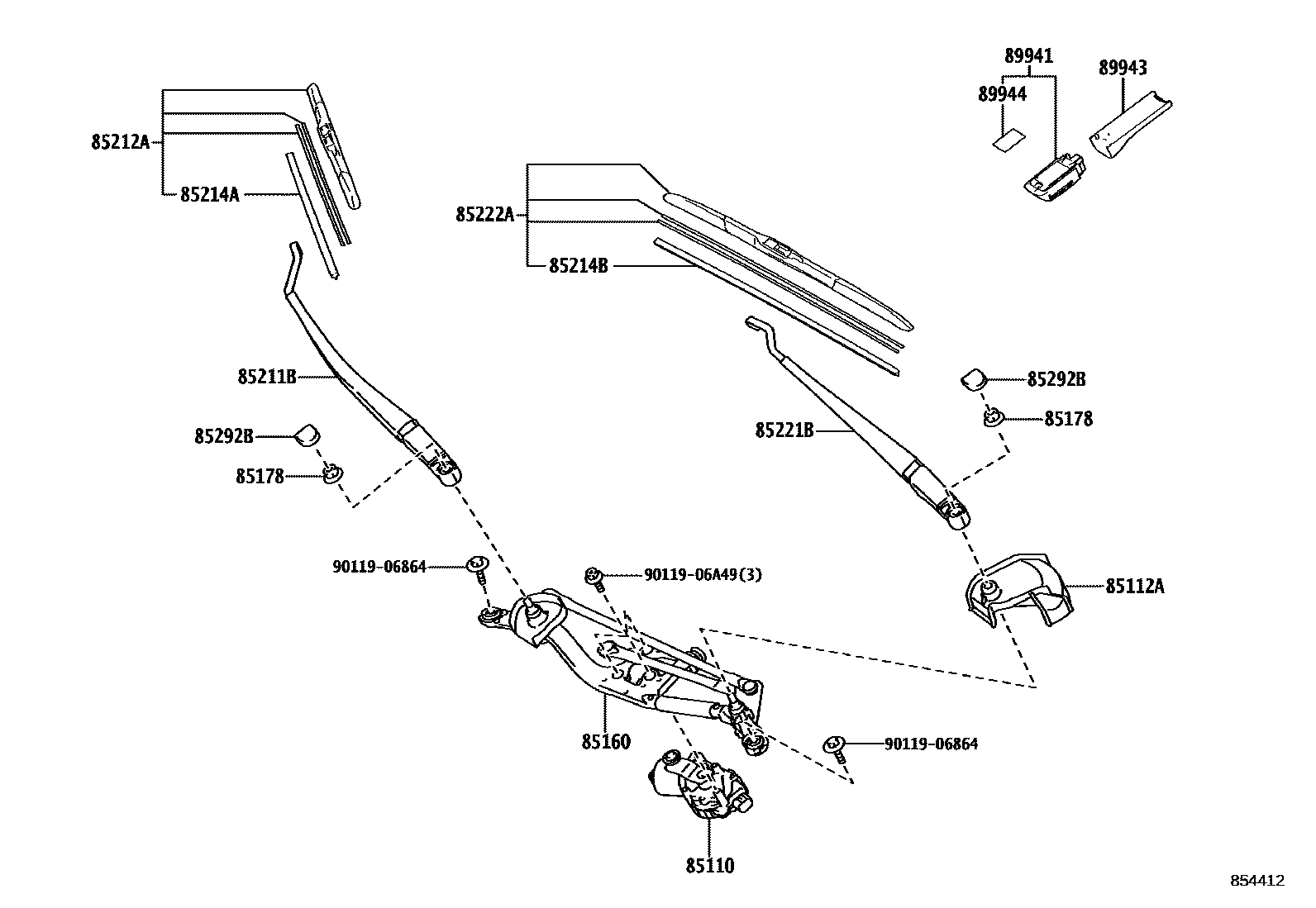

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-K0090iGXPA16..ARL202410

main85110-K0110iGXPA16..RHD..EUR202008-202404

main85110-K0120iGXPA16..LHD202404

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-0D010iGXPA16..LHD202008-202404

main85112-0D020iGXPA16..RHD..EUR202404

85160LINK ASSY, WINDSHIELD WIPER

main85150-K0010iGXPA16..ARL202008-202404

main85150-K0030iGXPA16..LHD202008-202404

main85150-K0040iGXPA16..RHD..EUR202404

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGXPA16202008-202404

85211BARM, FRONT WIPER, RH

main85211-52600iGXPA16..RHD..EUR202008-202404

main85211-52610iGXPA16..LHD202404

main85211-52630iGXPA16..ARL202008-202404

85212ABLADE, FR WIPER, RH

main85212-K0010iGXPA16..RHD202008-202404

main85212-K0020iGXPA16..LHD202008-202404

85214ARUBBER, WIPER, RH

main85214-28090iGXPA16..LHD202404

main85214-30380iGXPA16..RHD202008-202404

85214BRUBBER, WIPER, LH

main85214-28090iGXPA16..RHD202008-202404

main85214-30380iGXPA16..LHD202008-202404

85221BARM, FRONT WIPER, LH

main85221-52550iGXPA16..RHD..EUR202008-202404

main85221-52560iGXPA16..LHD202404

main85221-K0010iGXPA16..ARL202008-202404

85222ABLADE, FR WIPER, LH

main85222-K0010iGXPA16..RHD202008-202404

main85222-K0020iGXPA16..LHD202008-202404

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGXPA16202008-202404

89941SENSOR, RAIN

main89941-30040iGXPA16..ARL202008-202404

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main89941-78020iGXPA16202404

ACTIVE SAFETY PACKAGE-WITHOUT

89943COVER, RAIN SENSOR

main89943-12040iGXPA16..ARL202008-202404

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main89943-76020iGXPA16202404

ACTIVE SAFETY PACKAGE-WITHOUT

89944TAPE, RAIN SENSOR

main89944-42020iGXPA16..ARL202008-202404

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

9011906864

main90119-06864

9011906A49

main90119-06A49

16 parts on this diagram · 3 diagrams in section
