METER

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY

83100METER ASSY, COMBINATION

main83800-5D220iGXPA16..LHD202008-202204

DENSO,IRELAND, CYPRUS SPEC

main83800-5D221supersedes 83800-5D231iGXPA16..LHD202205-202404

DENSO,IRELAND, CYPRUS SPEC

main83800-5D240iGXPA16..ARL202008-202204

DENSO

main83800-5D241iGXPA16..ARL202205-202404

DENSO

main83800-5D671iGXPA16..ARL202410-202411

DENSO

main83800-5D672iGXPA16..ARL202412-202505

main83800-5D680iGXPA16202404-202406

DENSO

main83800-5D681iGXPA16202407-202409

DENSO

main83800-5D682iGXPA16..EUR202410-202411

DENSO

main83800-5D683iGXPA16..EUR202412-202505

main83800-5D712iGXPA16..CHI202412-202505

83138GGLASS, COMBINATION METER

main83852-5D670iGXPA16202404-202505

main83852-K0020iGXPA16202008-202404

9356755020

main93567-55020

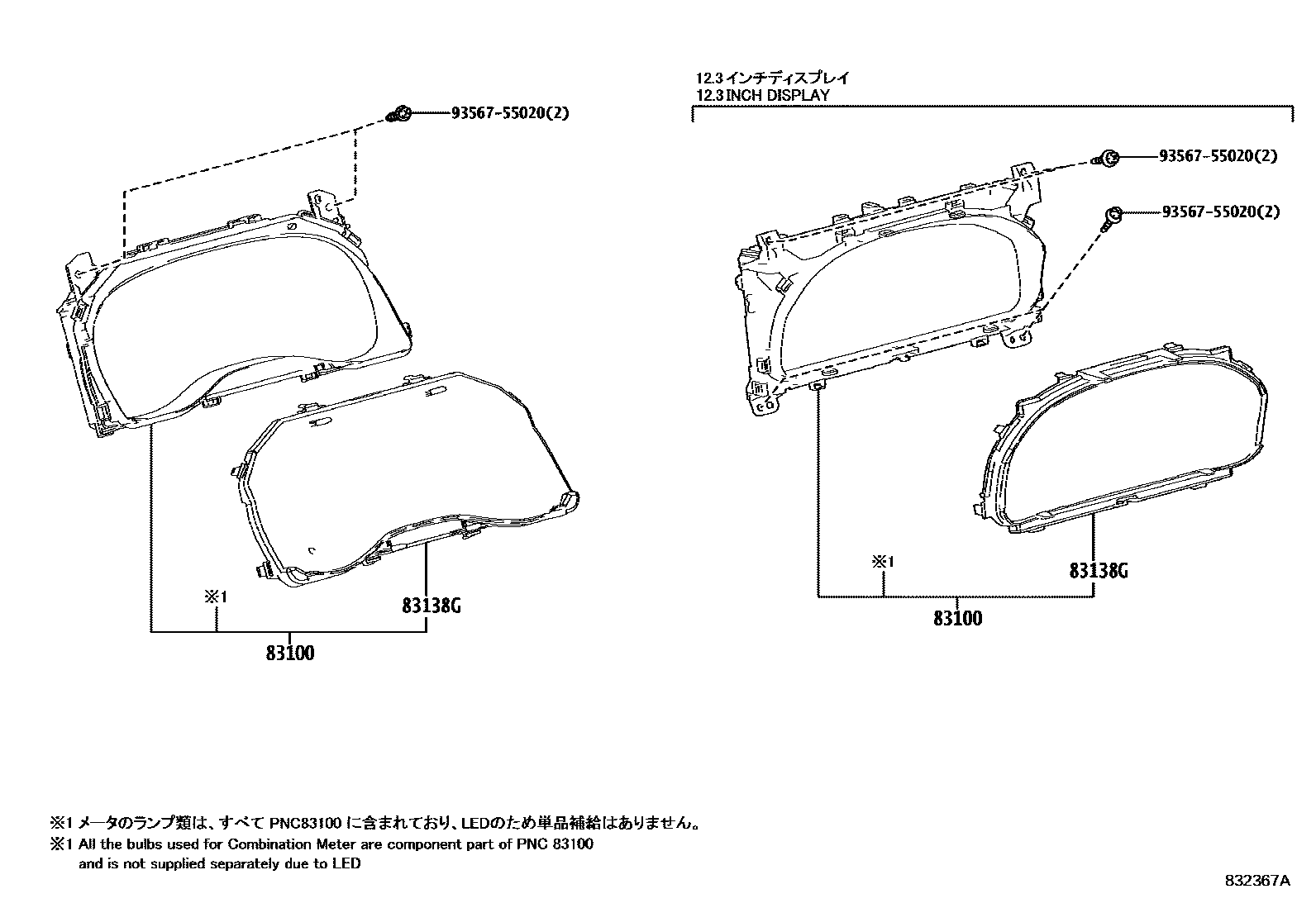

3 parts on this diagram · 2 diagrams in section
