HEADLAMP

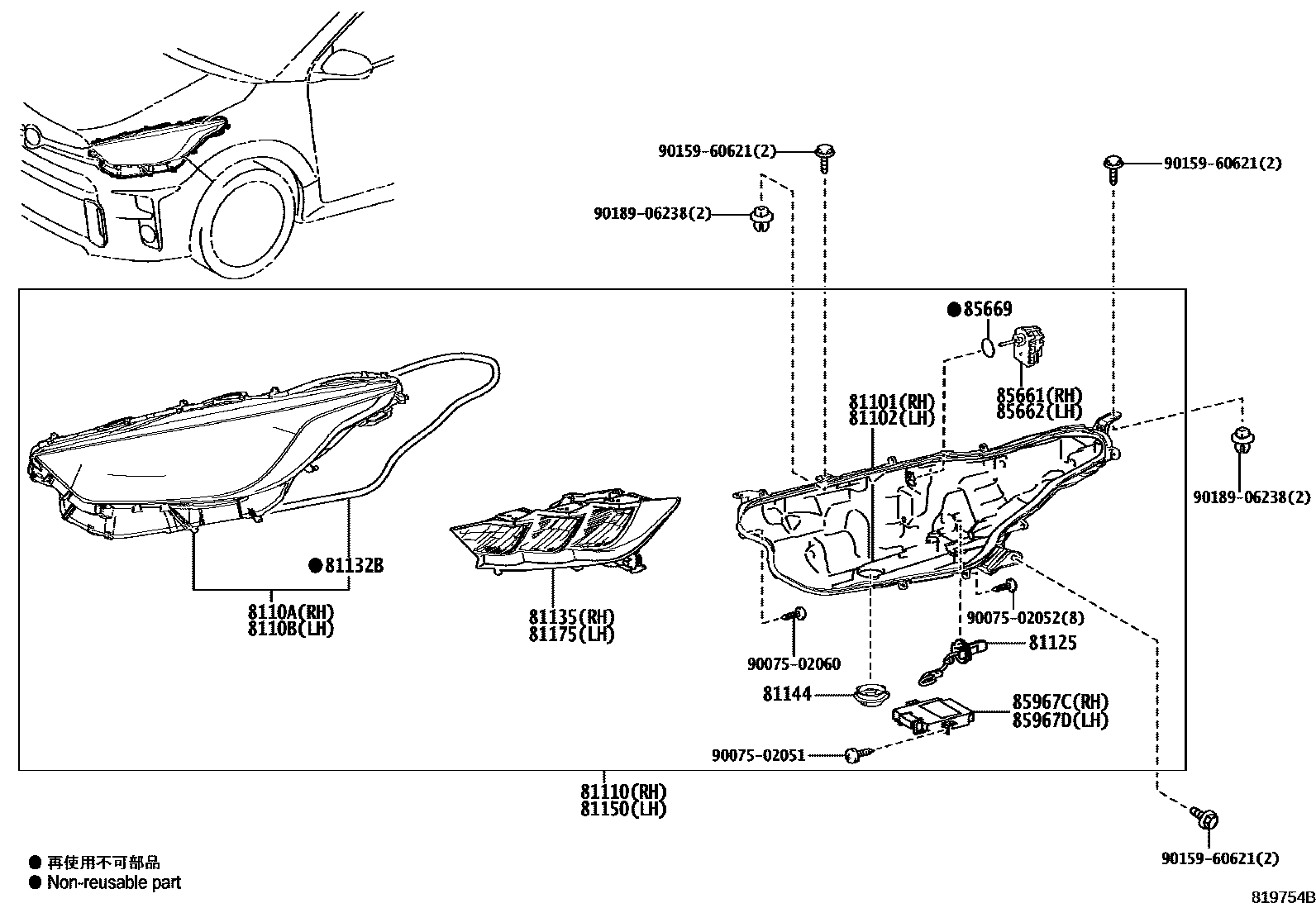

Parts diagram

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-52N60i202008-202403

main8111B-52N61i202403-202404

main8111B-K0040i202008-202404

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-52N60i202008-202403

main8115B-52N61i202403-202404

main8115B-K0040i202008-202404

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-K0040i202008-202404

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-K0040i202008-202404

81110HEADLAMP ASSY, RH

main81110-52N60i202008-202312

main81110-52N61i202401-202402

main81110-52N62i202403-202404

main81110-K0040i202008-202312

main81110-K0041i202401-202404

81125CORD, HEADLAMP

main81125-K0040i202008-202404

81132BGASKET, HEADLAMP LENS

main81132-50590i202008-202404

81135UNIT ASSY, HEADLAMP, RH

main81130-52N60i202008-202404

main81130-K0030i202008-202404

81144COVER, HEADLAMP, NO.1

main90075-66016i202008-202404

81150HEADLAMP ASSY, LH

main81150-52N60i202008-202312

main81150-52N61i202401-202402

main81150-52N62i202403-202404

main81150-K0040i202008-202312

main81150-K0041i202401-202404

81175UNIT ASSY, HEADLAMP, LH

main81170-52N60i202008-202404

main81170-K0030i202008-202404

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010i202008-202404

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010i202008-202404

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120i202008-202404

85967CCOMPUTER, LIGHT CONTROL LED, RH

main8596A-K0020i202008-202401

main8596A-K0021i202401-202404

85967DCOMPUTER, LIGHT CONTROL LED, LH

main8596A-K0010i202008-202401

main8596A-K0011i202401-202404

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9015960621

main90159-60621

9018906238

main90189-06238

21 parts on this diagram · 1 diagram in section
