SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52A30-C0iGXPA16..CHI202412

BLACK,TRIM2#

main73210-52A30-D0iGXPA16..CHI202412

RED/BLACK,TRIM3#

main73210-52A50-C0iGXPA16202008-202207

BLACK,TRIM2#

sub73210-52A51

main73210-52A51-C0iGXPA16..ARL,EUR202208-202404

BLACK,TRIM2#

main73210-52A51-D0iGXPA16..ARL,EUR202404

RED/BLACK,TRIM3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iGXPA16..CHI202008-202404

73219STOPPER, TONGUE PLATE

main73219-33010iGXPA16..CHI202008-202404

BLACK

main73219-33020iGXPA16..CHI202008-202404

GRAY

main73219-33030iGXPA16..ARL,EUR202008-202404

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52A70-C0iGXPA16..CHI202412

BLACK,TRIM2#

main73220-52A70-D0iGXPA16..CHI202412

RED/BLACK,TRIM3#

main73220-52A90-C0iGXPA16202008-202207

BLACK,TRIM2#

sub73220-52A91

main73220-52A91-C0iGXPA16..ARL,EUR202208-202404

BLACK,TRIM2#

main73220-52A91-D0iGXPA16..ARL,EUR202404

RED/BLACK,TRIM3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52C50-C0iGXPA16..RHD202008-202404

BLACK,TRIM2#

sub73230-52C51

main73230-52C51-C0iGXPA16..RHD..EUR202404

BLACK,TRIM2#,3#

main73230-52C60-C0iGXPA16..LHD202008-202404

BLACK,TRIM2#

sub73230-52C61

main73230-52C61-C0iGXPA16..LHD..EUR202404

BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iGXPA16..CHI202404

BLACK,TRIM2#,3#

sub73233-60020

sub73233-35010

main73233-60020-C1iGXPA16202008-202404

BLACK,TRIM2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52C50-C0iGXPA16..LHD202008-202404

BLACK,TRIM2#

sub73230-52C51

main73230-52C51-C0iGXPA16..LHD..EUR202404

BLACK,TRIM2#,3#

main73230-52C60-C0iGXPA16..RHD202008-202404

BLACK,TRIM2#

sub73230-52C61

main73230-52C61-C0iGXPA16..RHD..EUR202404

BLACK,TRIM2#,3#

9010511047

main90105-11047

9010911059

main90109-11059

9010911066

main90109-11066

9017911010

main90179-11010

9155380612

main91553-80612

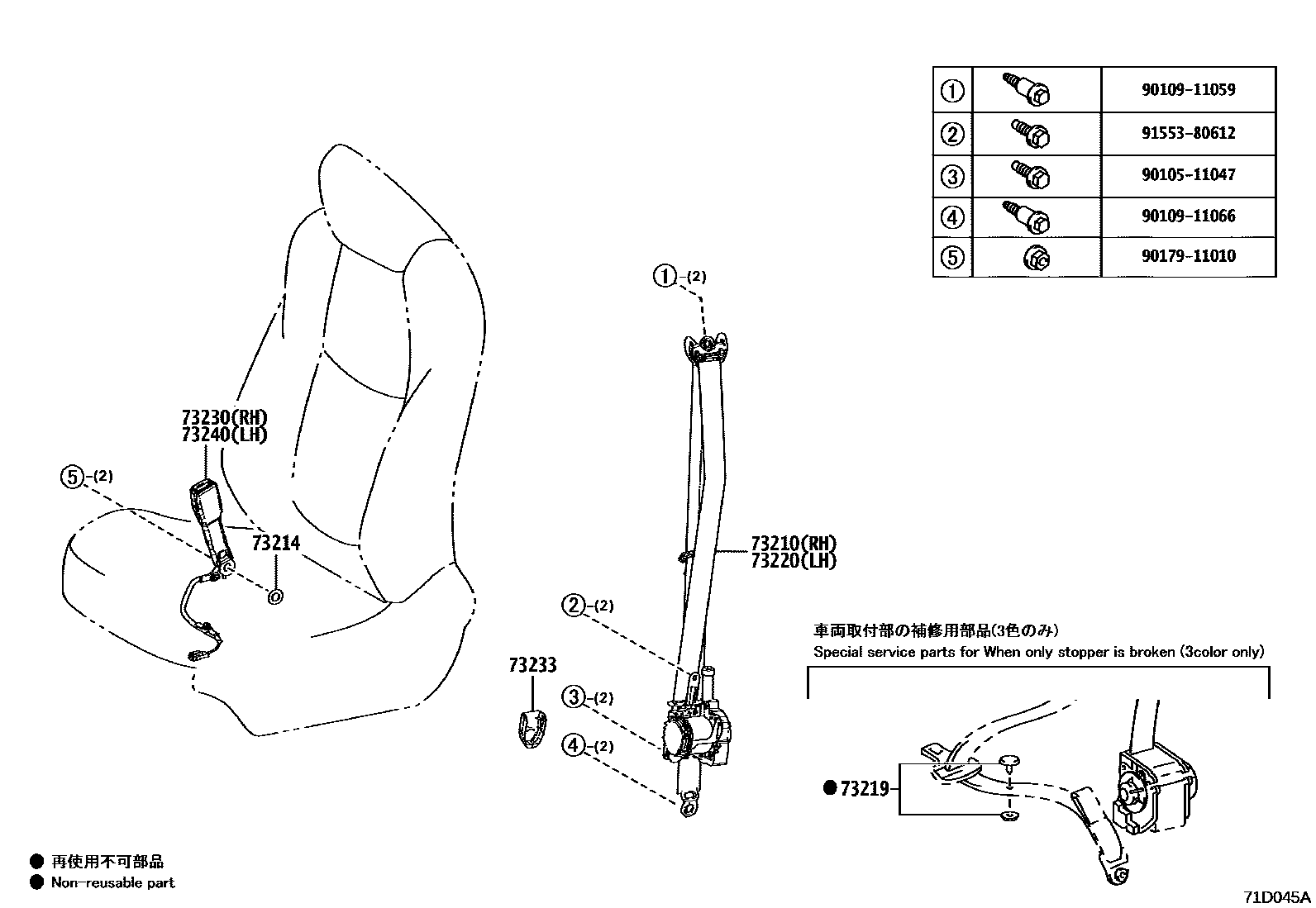

12 parts on this diagram · 2 diagrams in section
