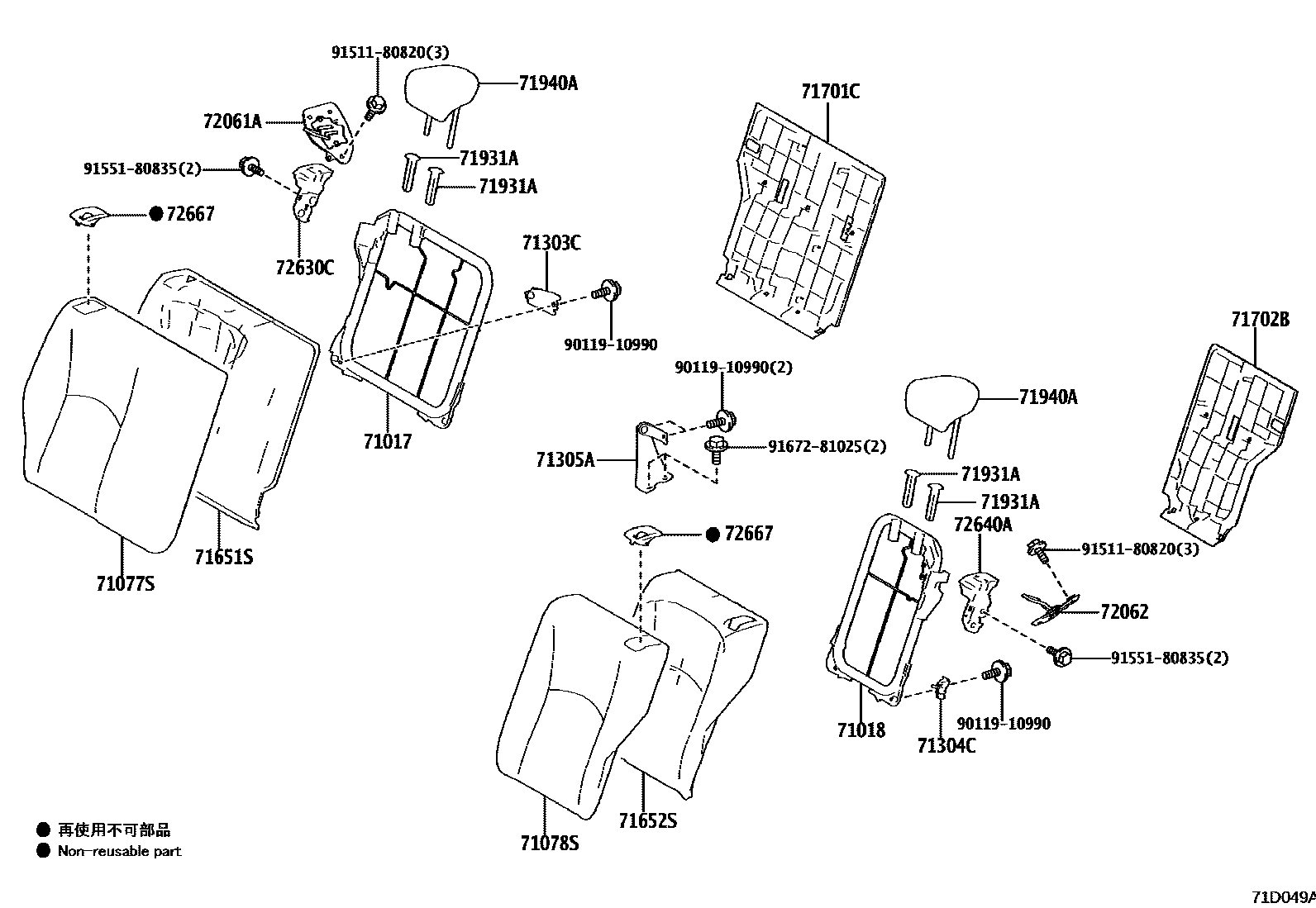

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52850iGXPA16..CHI¥15,500202008-202404

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47100iGXPA16¥11,100202008-202404

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-52W40-C3iGXPA16..ARL202008-202112

BLACK,TRIM2#

main71077-52X30-C1iGXPA16..ARL202008-202404

BLACK,TRIM2#

main71077-52X30-C1iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

main71077-5CD00-C0iGXPA16..CHI202412

BLACK,TRIM2#,3#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-52R90-C3iGXPA16..ARL202008-202112

BLACK,TRIM2#

main71078-52S70-C1iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

main71078-52S70-C1iGXPA16..EUR202008-202404

BLACK,TRIM2#

main71078-52V50-C0iGXPA16..CHI202412

BLACK,TRIM2#,3#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47030iGXPA16¥1,060202008-202404

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47030iGXPA16¥1,060202008-202404

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-52140iGXPA16¥3,170202008-202404

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-52850iGXPA16¥9,000202008-202404

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-52530iGXPA16¥5,300202008-202404

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-47020iGXPA16..ARL,EUR¥8,400202008-202404

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-47020iGXPA16¥6,800202008-202404

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iGXPA16..CHI202404

W(LOCK),BLACK,TRIM2#,3#

main71930-47050-C5iGXPA16202008-202404

W(LOCK),BLACK,TRIM2#

main71931-47030-C4iGXPA16..CHI202404

W/O(LOCK),BLACK,TRIM2#,3#

main71931-47030-C4iGXPA16202008-202404

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-52M00-C2iGXPA16..ARL202008-202112

BLACK,TRIM2#

main71940-52N20-C2iGXPA16..EUR202008-202404

BLACK,TRIM2#

main71940-52P30-C0iGXPA16..CHI202412

BLACK,TRIM2#,3#

main71940-52P60-C0iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-47010iGXPA16¥3,030202008-202404

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-47010iGXPA16..CHI¥2,730202008-202404

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iGXPA16202008-202404

BLACK,TRIM2#

sub72630-47050¥3,210

main72630-47050-C2iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

sub72630-47050¥3,210

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iGXPA16202008-202404

BLACK,TRIM2#

sub72640-47050¥3,210

main72640-47050-C2iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

sub72640-47050¥3,210

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1iGXPA16202008-202404

BLACK,TRIM2#

main72667-47010-C1iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

9011910990

main90119-10990¥100

9151180820

main91511-80820¥80

9155180835

main91551-80835¥80

9167281025

main91672-81025¥120

22 parts on this diagram · 2 diagrams in section
