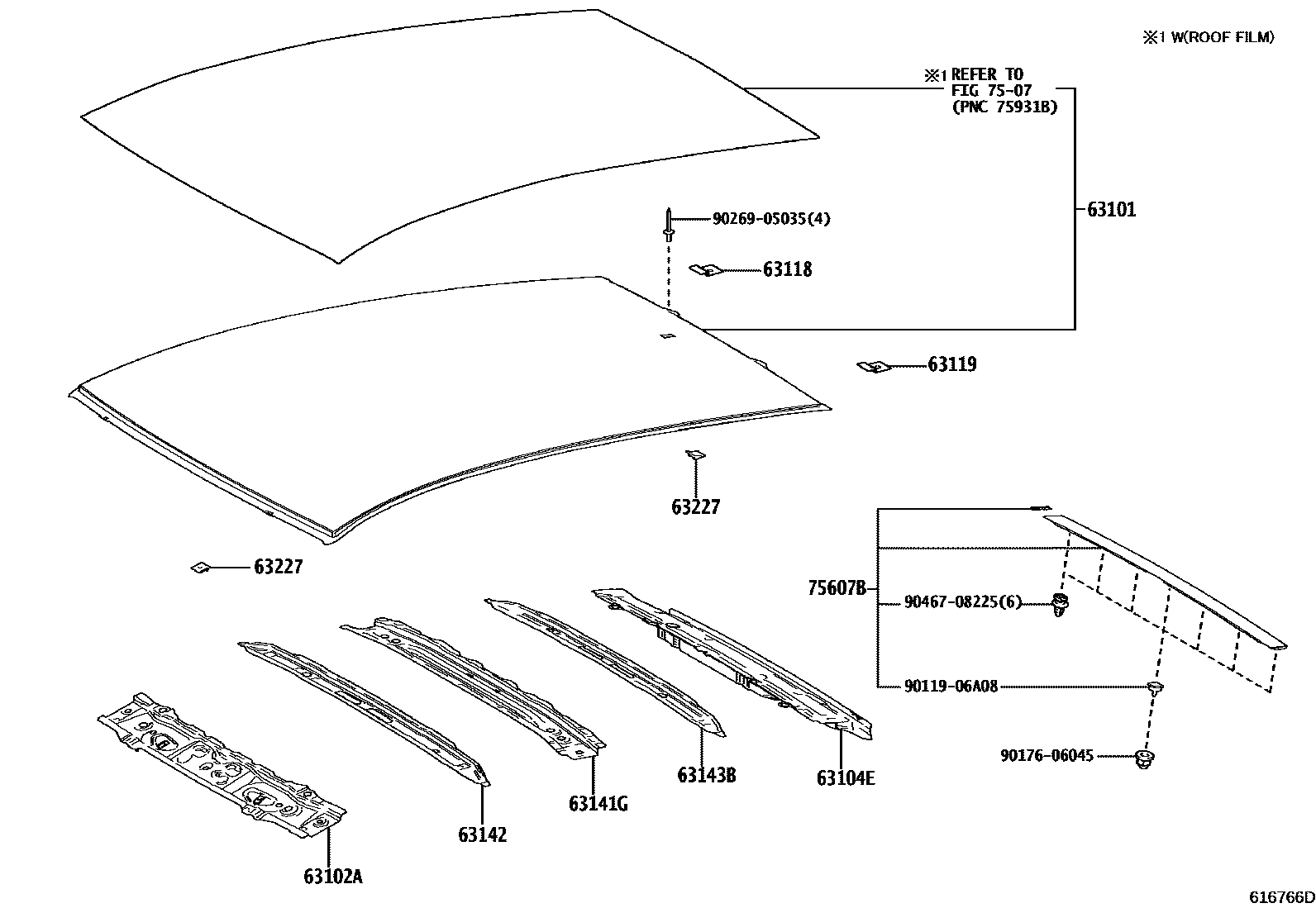

ROOF PANEL & BACK WINDOW GLASS

63101PANEL SUB-ASSY, ROOF

main63101-52640iGXPA16202008-202107

sub63101-52641

sub75551-52251

sub75552-52221

sub75561-52050

main63101-52641iGXPA16202107-202404

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52260iGXPA16202008-202404

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-52070iGXPA16..ARL,EUR202008-202404

63118SUPPORT, ROOF PANEL, RH

main63118-52080iGXPA16202008-202404

63119SUPPORT, ROOF PANEL, LH

main63118-52080iGXPA16202008-202404

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-52200iGXPA16..ARL,EUR202008-202404

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-52110iGXPA16202008-202404

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52220iGXPA16..ARL,EUR202008-202404

63227CLIP, ROOF WIND DEFLECTOR PANEL

main63227-11020iGXPA16202008-202404

REAR

main63227-24020iGXPA16202008-202404

FRONT

7507

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-52010iGXPA16202008-202404

NO PAINT REQ.

9011906A08

main90119-06A08

9017606045

main90176-06045

9026905035

main90269-05035

9046708225

main90467-08225

15 parts on this diagram · 1 diagram in section
