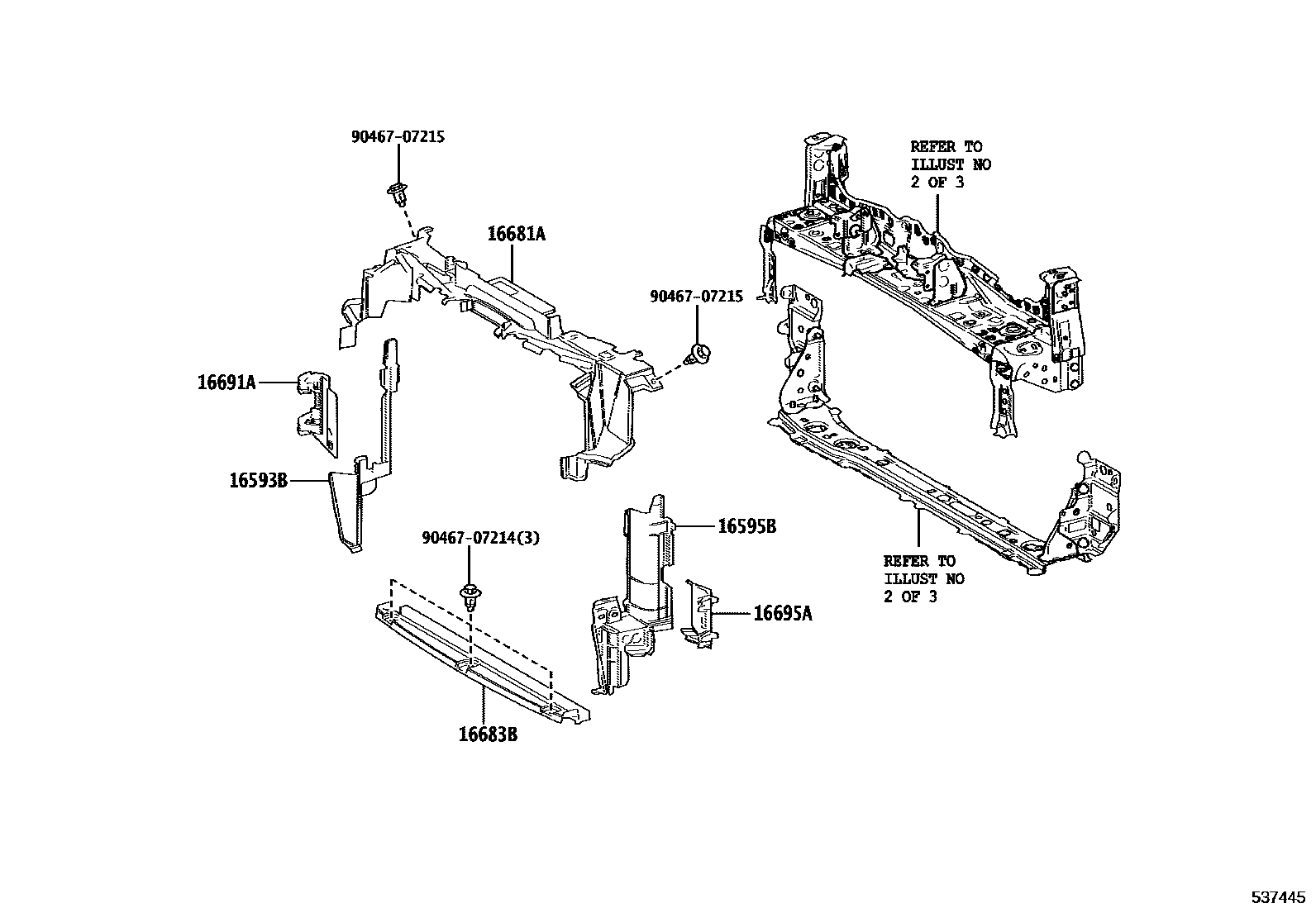

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL 0005 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-18020iG16EGTS..GXPA16202008-202404

main16593-18040iG16EGTS..GXPA16202404

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-18020iG16EGTS..GXPA16202008-202404

main16595-18040iG16EGTS..GXPA16202404

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-18010iG16EGTS..GXPA16202008-202404

main16681-18030iG16EGTS..GXPA16202404

16683BPLATE, RADIATOR LOWER AIR GUIDE, NO.2

main16683-18010iG16EGTS..GXPA16202008-202404

main16683-18020iG16EGTS..GXPA16202404

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-18010iG16EGTS..GXPA16202008-202404

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-18010iG16EGTS..GXPA16202008-202404

9046707214

main90467-07214

9046707215

main90467-07215

8 parts on this diagram · 5 diagrams in section
