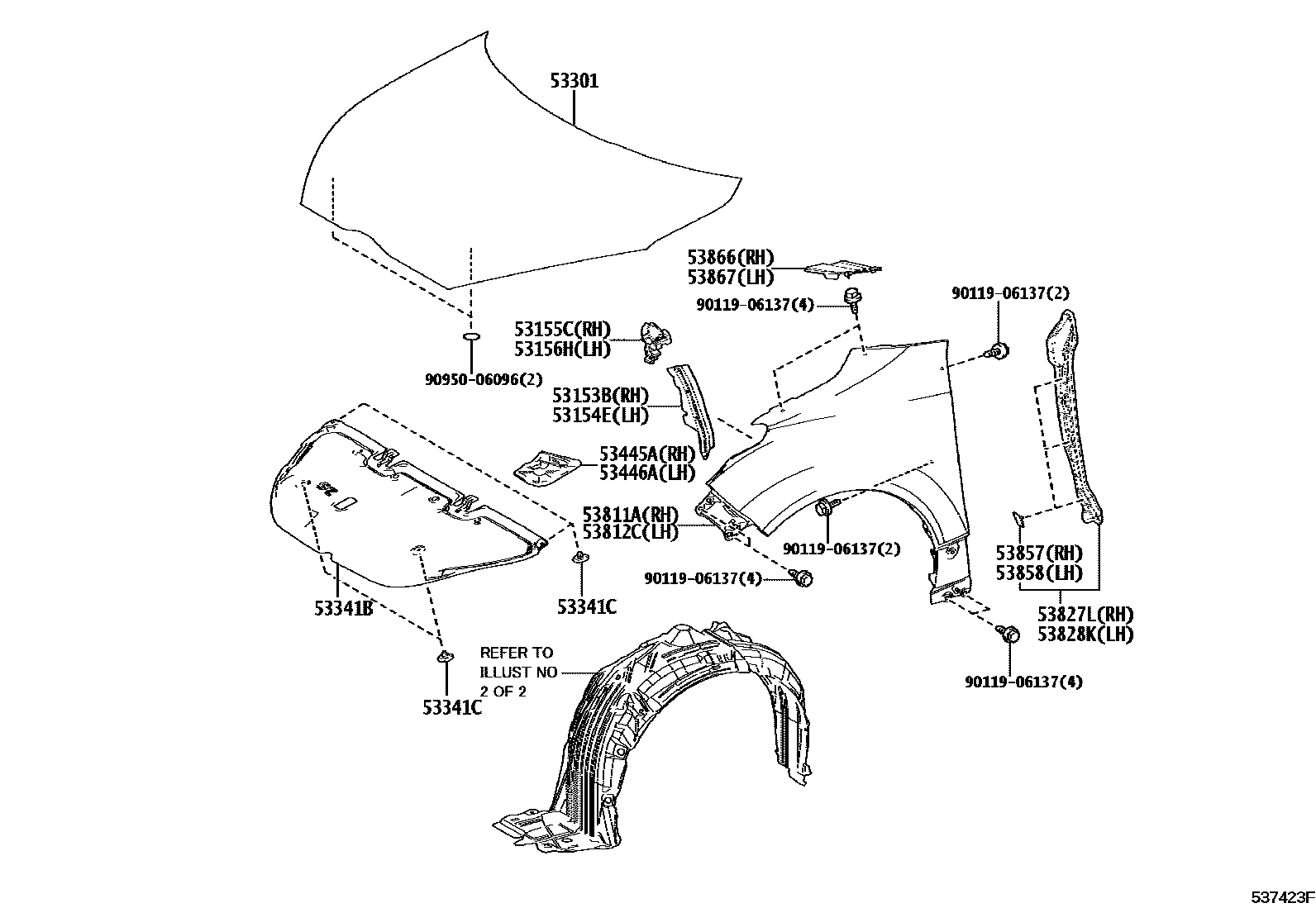

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-52040iGXPA16202008-202404

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-52040iGXPA16202008-202404

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-52080iGXPA16202008-202404

main53155-52330iGXPA16..ARL,EUR202404

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-52040iGXPA16202008-202404

main53156-52100iGXPA16..ARL,EUR202404

53301HOOD SUB-ASSY

main53301-52420iGXPA16202008-202404

53341BINSULATOR, HOOD

main53341-K0050iGXPA16202008-202404

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGXPA16202008-202404

53445ACOVER, HOOD HINGE, RH

main53445-52030iGXPA16202008-202404

53446ACOVER, HOOD HINGE, LH

main53446-52030iGXPA16202008-202404

53811APANEL, FRONT FENDER, RH

main53811-52600iGXPA16202008-202404

53812CPANEL, FRONT FENDER, LH

main53812-52600iGXPA16202008-202404

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52210iGXPA16202008-202404

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52220iGXPA16202008-202404

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iGXPA16202008-202404

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iGXPA16202008-202404

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-K0010iGXPA16202008-202404

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-K0010iGXPA16202008-202404

9011906137

main90119-06137

9095006096

main90950-06096

19 parts on this diagram · 2 diagrams in section
