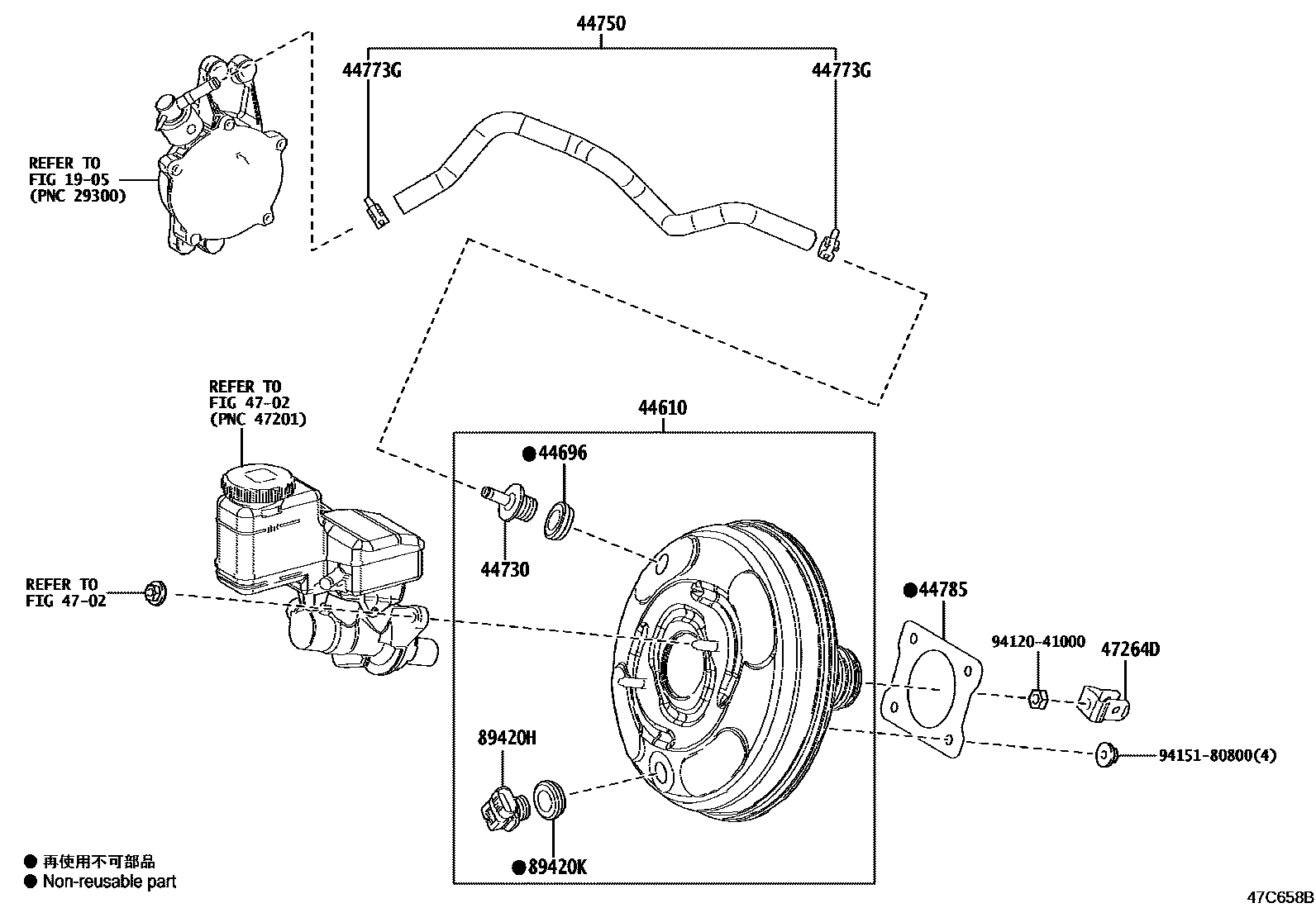

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1905

44610BOOSTER ASSY, BRAKE

main44610-52J60iGXPA16..RHD¥30,900202404

main44610-52J70iGXPA16..RHD¥35,500202008-202404

main44610-52J80iGXPA16..LHD..EUR202404

main44610-52J90iGXPA16..LHD202008-202404

main44610-52K30iGXPA16..CHI202412

44696GROMMET, CHECK VALVE

main90480-24439iGXPA16¥390202008-202404

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iGXPA16..LHD¥1,300202008-202404

main44730-52010iGXPA16..RHD¥1,300202008-202404

44750HOSE ASSY, VACUUM

main44750-52680iGXPA16..CHI202412

main44750-52720iGXPA16..LHD202008-202404

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGXPA16..LHD¥230202008-202404

44785GASKET, BRAKE BOOSTER

main44785-12040iGXPA16¥200202008-202404

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGXPA16¥250202008-202404

89420HSENSOR ASSY, VACUUM

main89421-52020iGXPA16¥5,900202008-202404

main89421-71040iGXPA16..CHI¥5,900202412

89420KGROMMET, VACUUM SENSOR

main90480-24439iGXPA16¥390202008-202404

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

13 parts on this diagram · 4 diagrams in section
