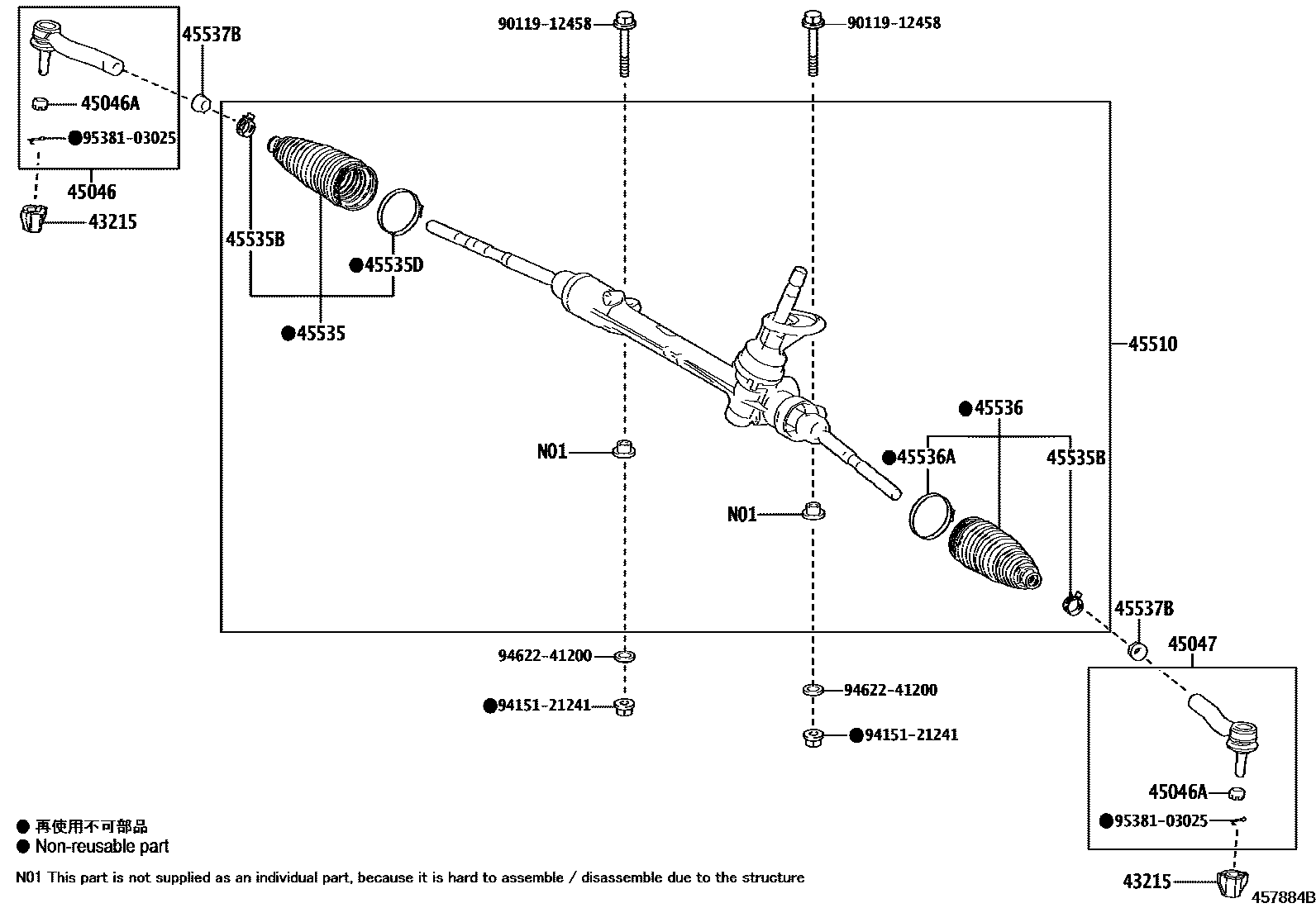

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iGXPA16..EUR¥210202008-202404

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iGXPA16¥2,690202008-202404

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iGXPA16¥130202008-202404

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iGXPA16¥2,690202008-202404

45510GEAR ASSY, STEERING

main45510-52440iGXPA16..RHD¥29,800202008-202404

main45510-52450iGXPA16..LHD202008-202404

45535BOOT, STEERING RACK, NO.1

main45535-59075iGXPA16¥790202008-202404

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGXPA16¥320202008-202404

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-48020iGXPA16¥240202008-202404

45536BOOT, STEERING RACK, NO.2

main45535-59075iGXPA16¥790202008-202404

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-48020iGXPA16¥240202008-202404

45537BNUT, RACK END LOCK

main90178-16001iGXPA16¥120202008-202404

9011912458

main90119-12458¥360

9415121241

main94151-21241¥100

9462241200

main94622-41200¥80

9538103025

main95381-03025¥130

15 parts on this diagram · 2 diagrams in section
