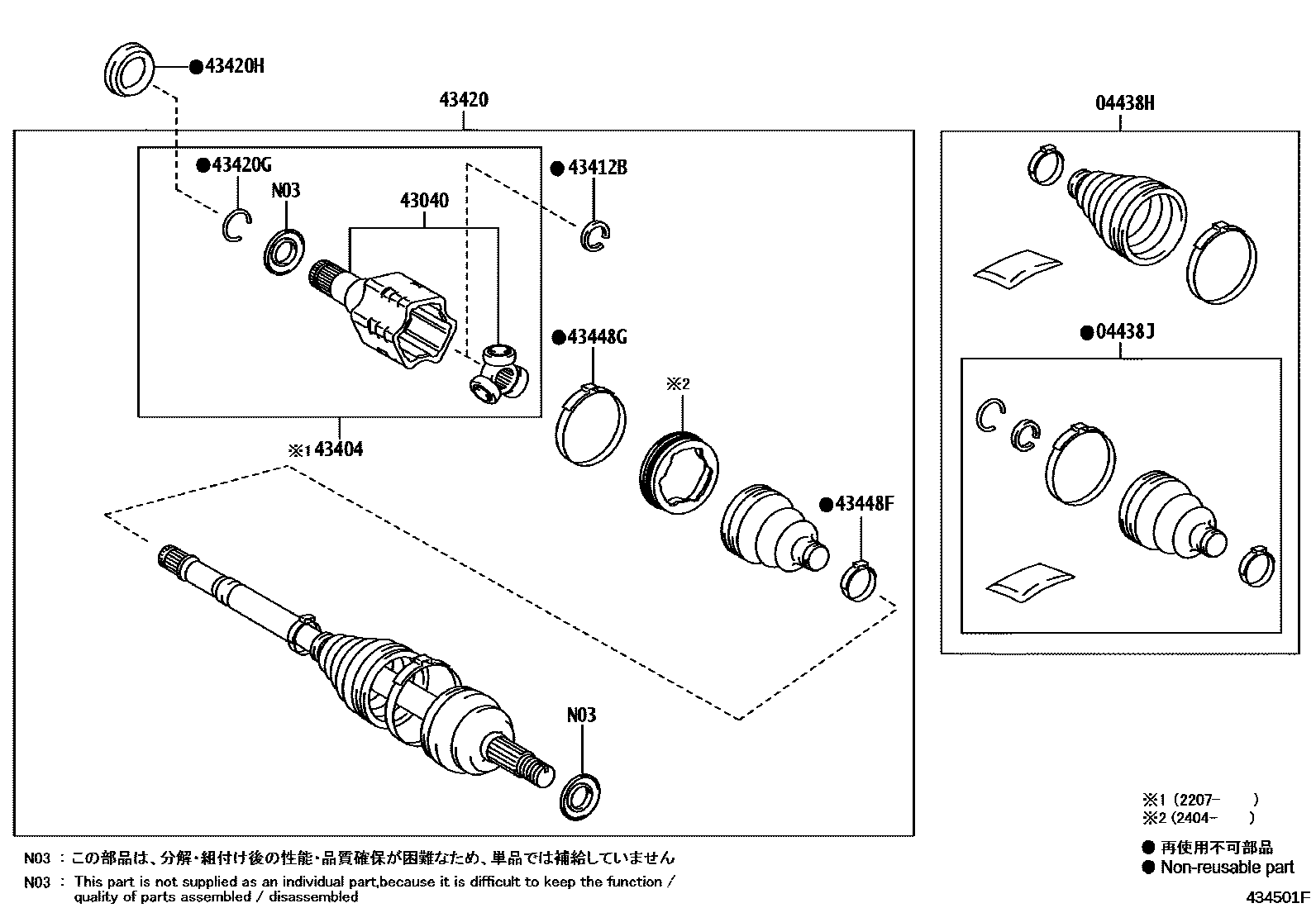

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-52925iGXPA16202008-202404

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-52521iGXPA16202008-202404

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-52010iGXPA16..CHI202404

main43040-52030iGXPA16..8FC202404

main43040-58010iGXPA16202008-202404

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-52010iGXPA16202207-202404

main43404-52020iGXPA16..6F..(ARL,EUR)202404

main43404-52030iGXPA16..8FC202404

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-78020iGXPA16202008-202404

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-52360iGXPA16202008-202404

main43420-52400iGXPA16..CHI202404

main43420-52410iGXPA16..8FC202404

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iGXPA16..CHI202008-202404

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iGXPA16..6F..(ARL,EUR)202008-202404

main90311-50059iGXPA16..8FC202404

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-52320iGXPA16..ARL,EUR202404

main42345-78010iGXPA16202008-202404

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-52350iGXPA16..ARL,EUR202404

main42345-78020iGXPA16202008-202404

10 parts on this diagram · 2 diagrams in section
