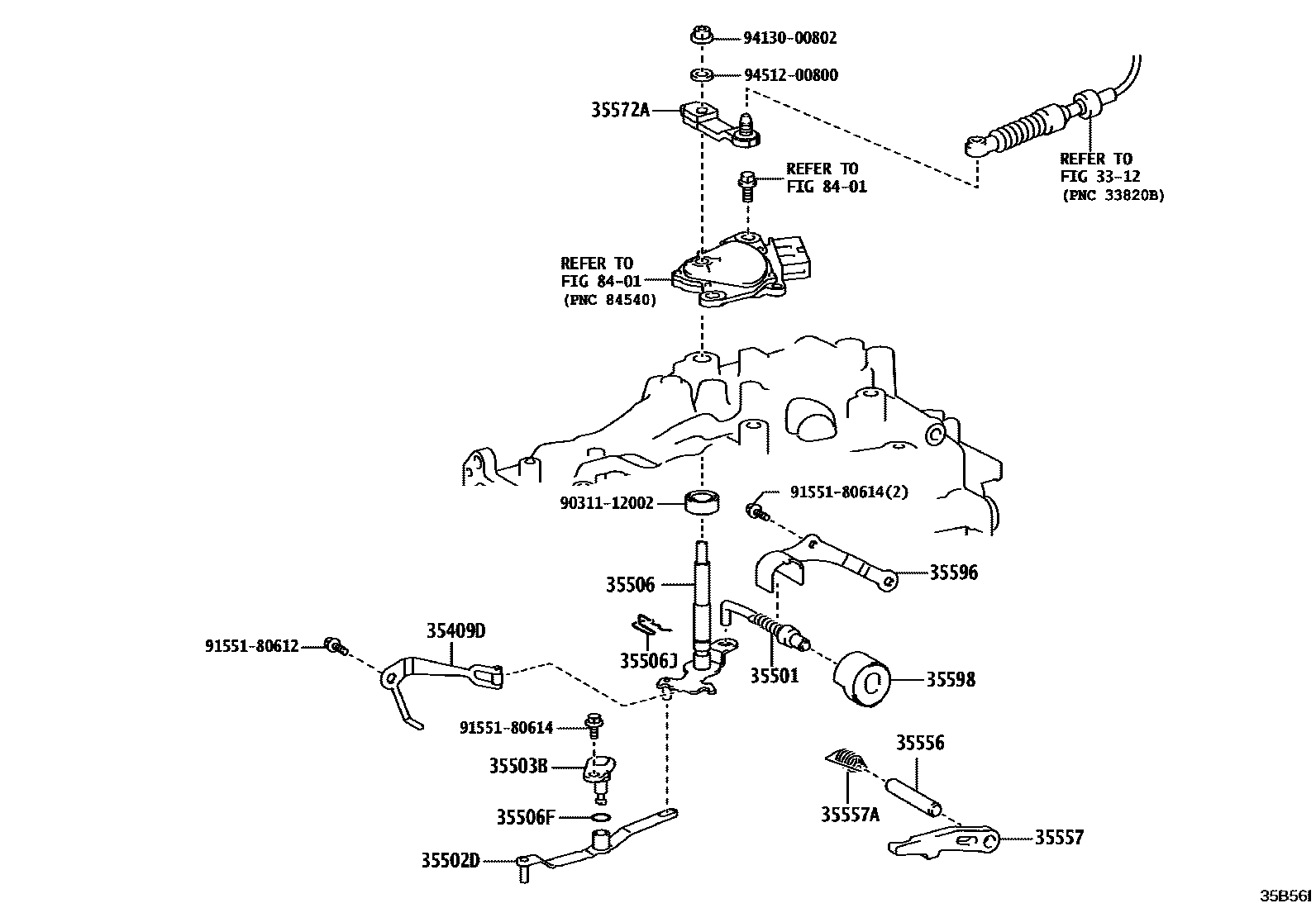

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iGXPA16..8FC¥400202404

35501ROD SUB-ASSY, PARKING LOCK

main35501-48040iGXPA16..8FC¥1,210202404

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-48010iGXPA16..8FC¥230202404

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iGXPA16..8FC¥300202404

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-48022iGXPA16..8FC¥930202404

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iGXPA16..8FC¥140202404

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iGXPA16..8FC¥60202404

35556SHAFT, PARKING LOCK PAWL

main35556-48040iGXPA16..8FC202404

35557PAWL, PARKING LOCK

main35557-48040iGXPA16..8FC¥2,810202404

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iGXPA16..8FC¥180202404

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-52100iGXPA16..8FC¥710202404

35596PLATE, PAWL STOPPER

main35596-48030iGXPA16..8FC¥380202404

35598SLEEVE, PARKING LOCK

main35598-48040iGXPA16..8FC¥770202404

8401

9031112002

main90311-12002¥270

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

20 parts on this diagram · 1 diagram in section
