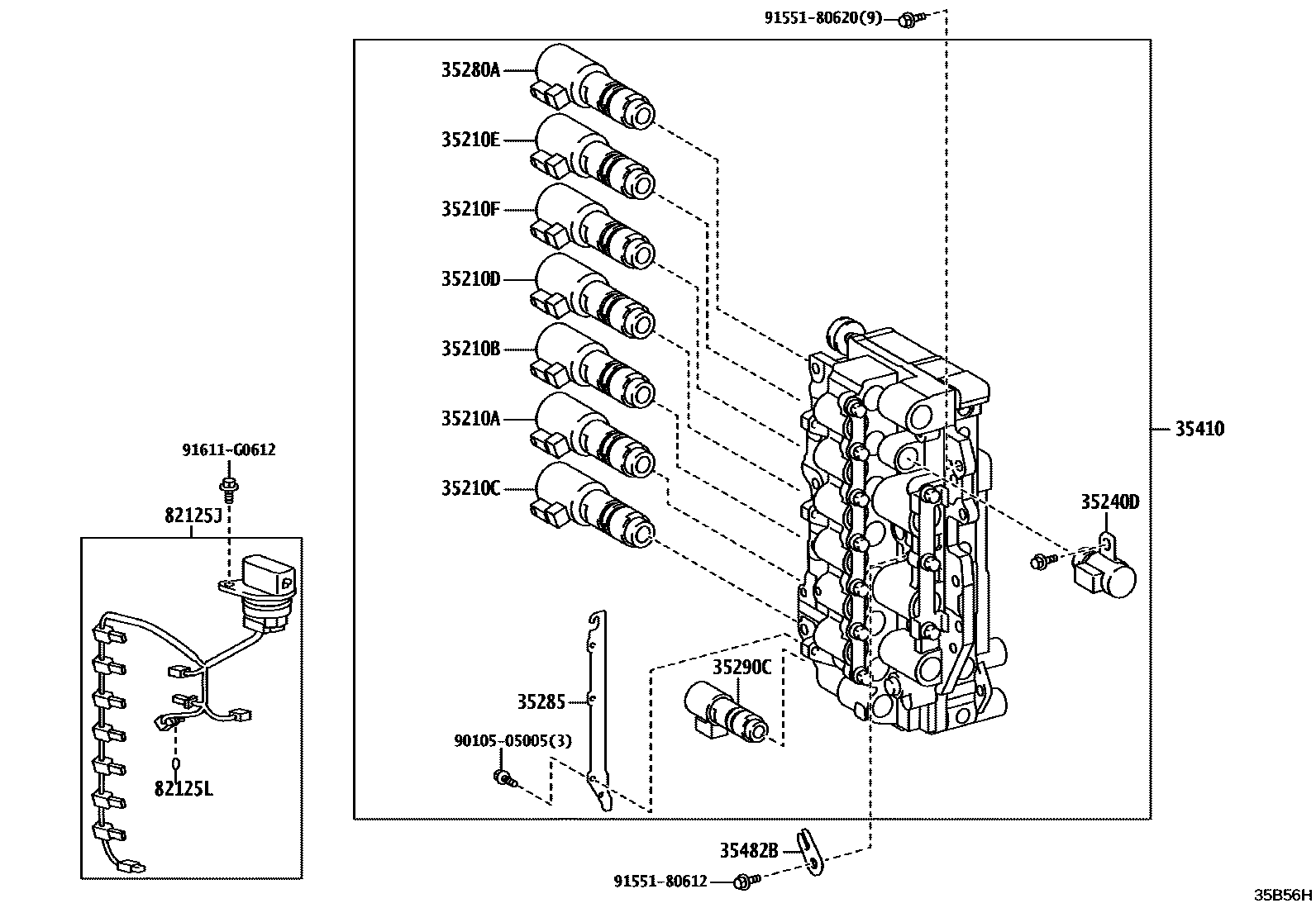

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35410BODY ASSY, TRANSMISSION VALVE
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
82125LRING, O(FOR TRANSMISSION WIRE)
9010505005
main90105-05005
9155180612
main91551-80612
9155180620
main91551-80620
91611G0612
main91611-G0612
18 parts on this diagram · 1 diagram in section
