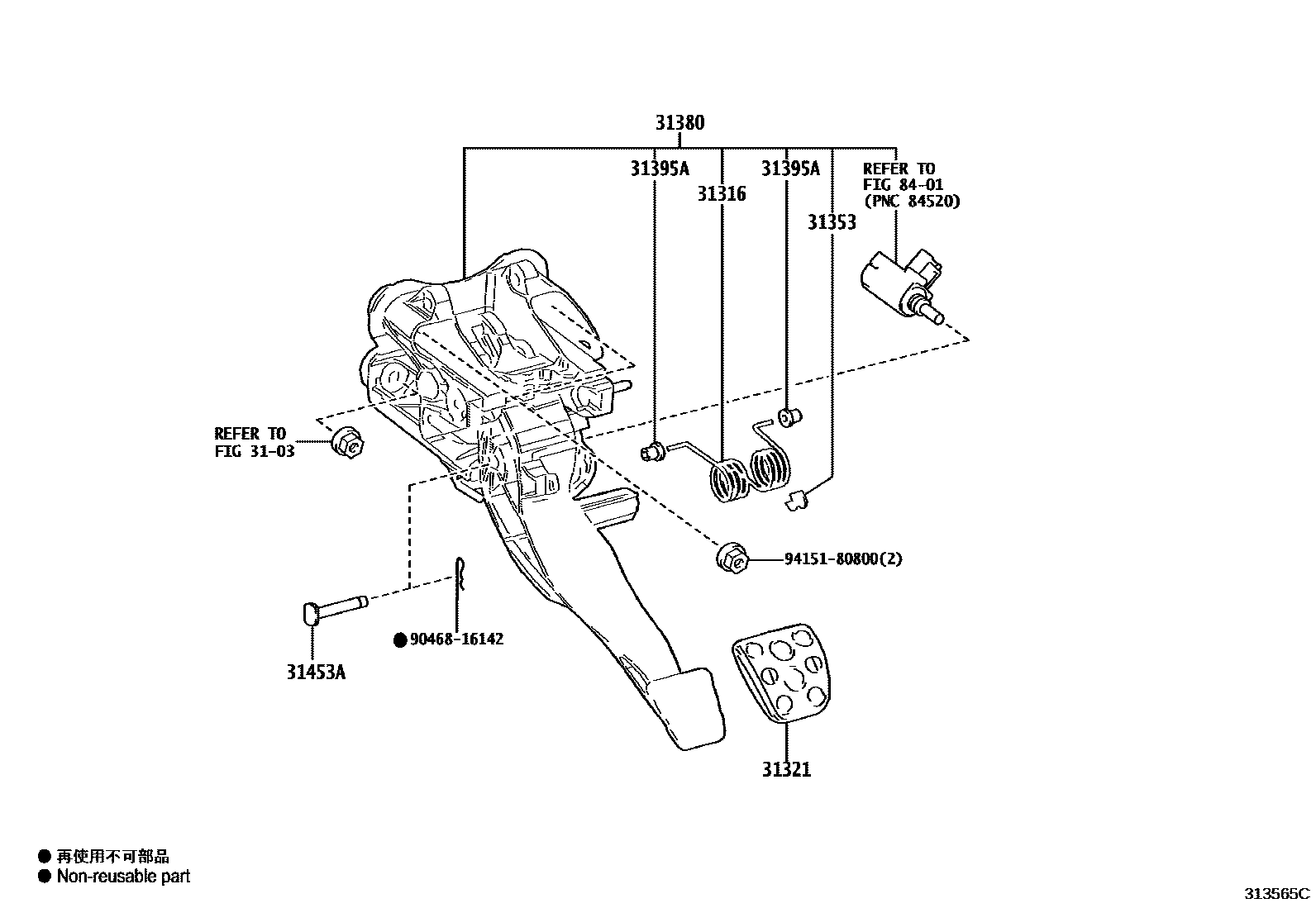

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PEDAL 0003 1CLUTCH PIPING 0004 1CLUTCH PIPING

3103

31316SPRING, TURNOVER CLUTCH PEDAL

main31316-0D010iGXPA16..LHD202008-202404

main31394-52010iGXPA16..LHD..6F202404

31321PAD, CLUTCH PEDAL

main31321-10050iGXPA16..EUR202008-202404

main31321-42010iGXPA16..ARL202008-202112

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0D010iGXPA16..LHD202008-202404

main31353-26010iGXPA16..RHD202008-202404

31380SUPPORT ASSY, PEDAL

main31380-0W061iGXPA16..LHD202008-202404

main31380-0W200iGXPA16..LHD..6F202404

31395AHOOK, PEDAL SPRING, NO.1

main31395-0D010iGXPA16..LHD202008-202404

main31395-0W010iGXPA16..LHD..6F202404

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main31455-K0010iGXPA16..LHD..6F202008-202404

L=51.5

main90249-08051iGXPA16..RHD..6F202008-202404

L=31.5

8401

9046816142

main90468-16142

9415180800

main94151-80800

10 parts on this diagram · 4 diagrams in section
