SHORT BLOCK ASSEMBLY

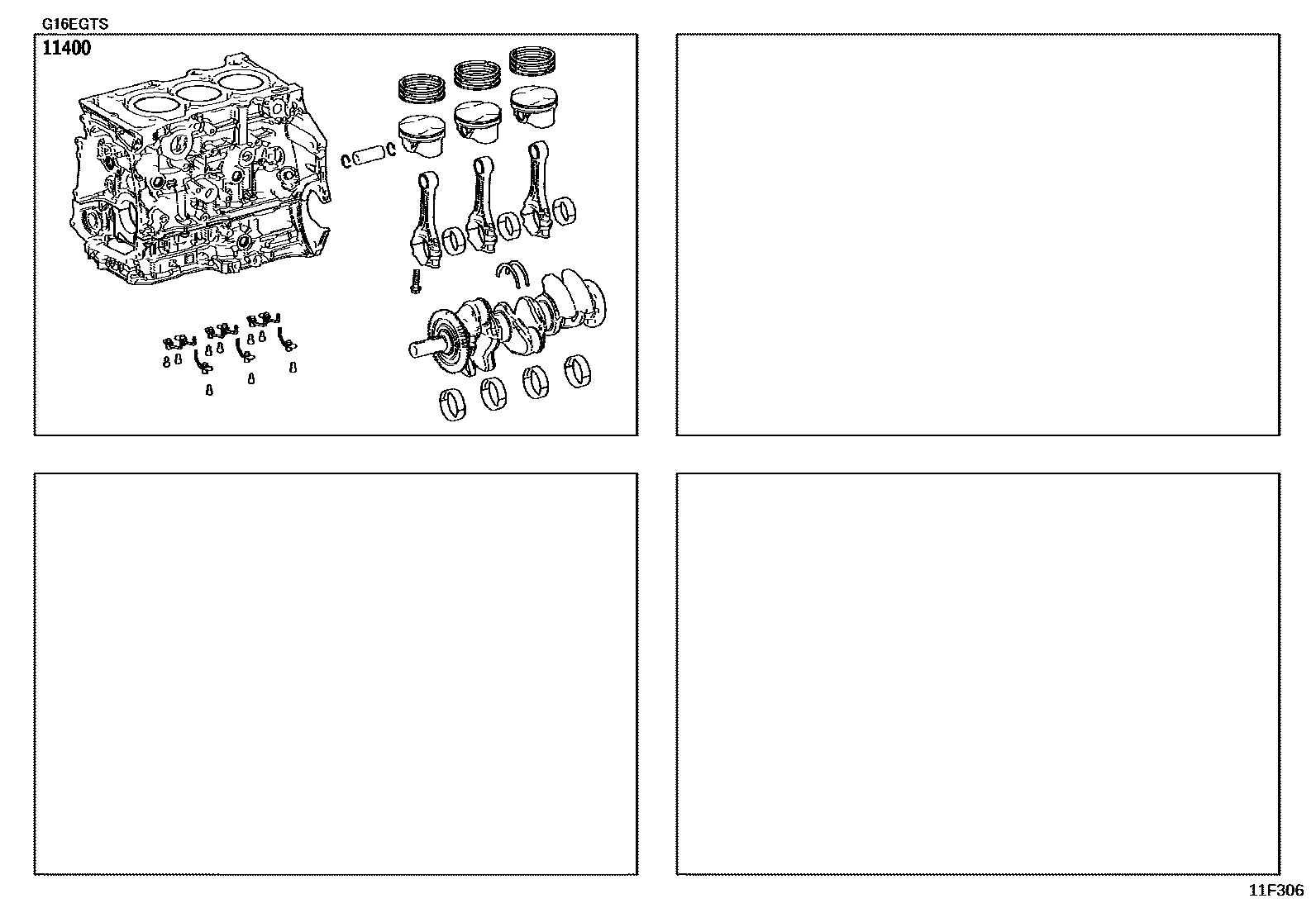

Parts diagram

11400BLOCK ASSY, SHORT

main11400-18050i202008-202206

main11400-18051i202206-202404

main11400-18060i202404-202411

main11400-18062i202411

1 parts on this diagram · 1 diagram in section
