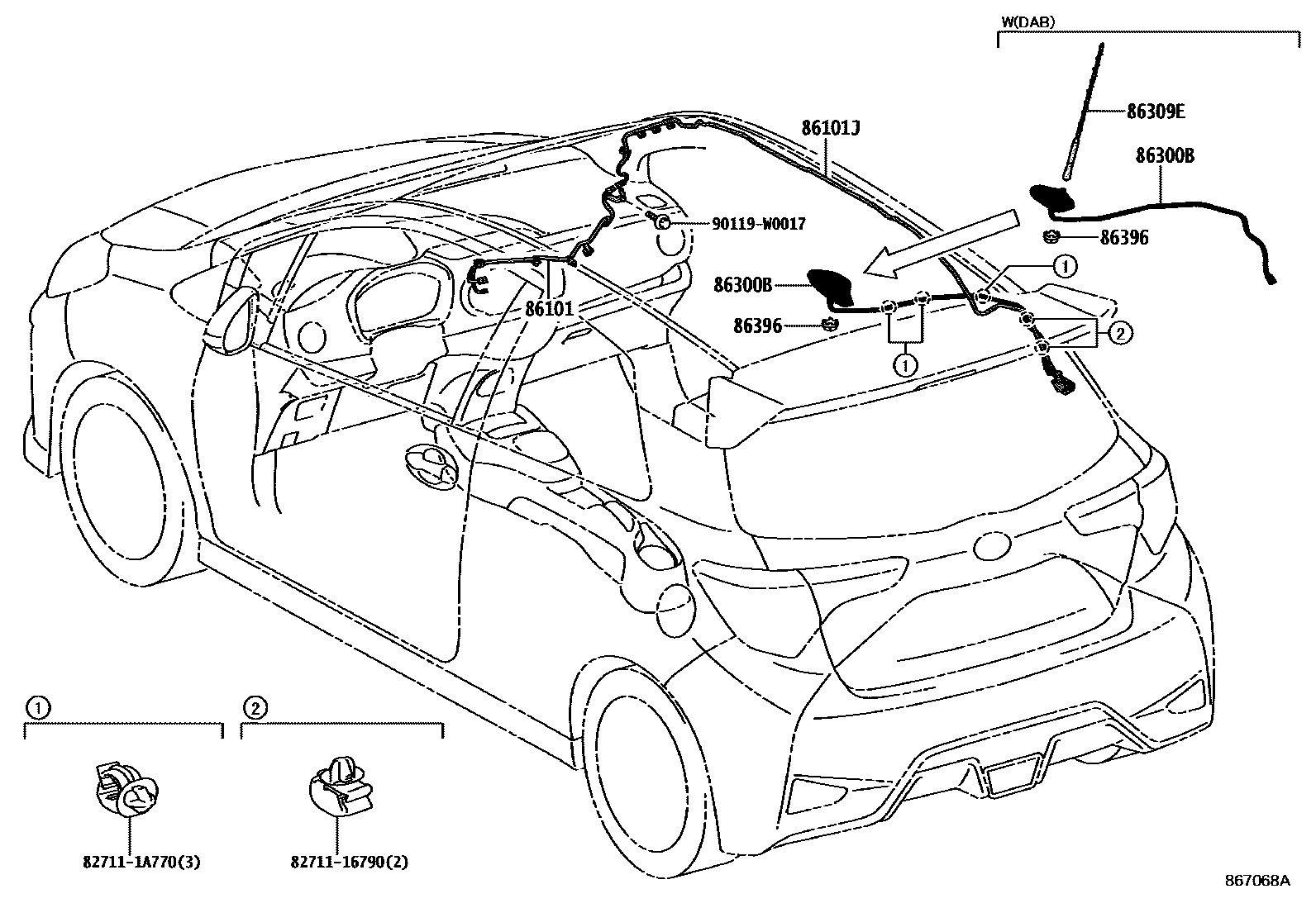

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D410iNSP131..LHD201711

main86101-0D420iNSP131..RHD201711

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D400iNSP131201711

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D490-C0iNSP131201711

BLACK MC.,2NR

86309EPOLE SUB-ASSY, ROOF ANTENNA

86396NUT, ANTENNA

main86396-47010iNSP131201711

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

90119W0017

main90119-W0017

8 parts on this diagram · 2 diagrams in section
